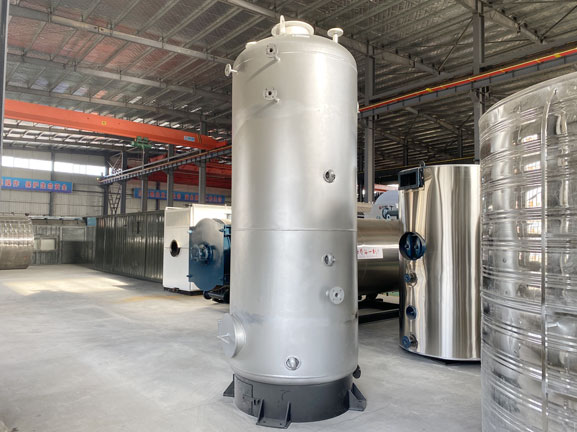

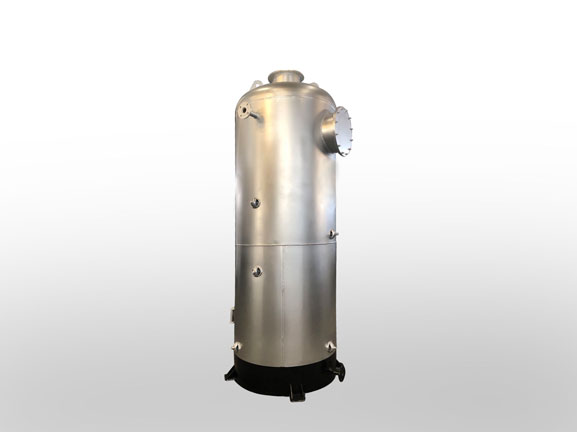

CLSG Vertical Coal Wood Hot Water Boiler

small vertical hot water boiler | wood hot water boiler | coal hot water boiler

CLSG is a normal pressure vertical hot water boiler, the fuel coal or biomass wood was feed by workers manually. Widely used for heating, drying or heat exchanger in food, beverage, tobacoo, extraction, greenhouse, hotel, building and pool etc...

output: hot water
Thermal Capacity: 120-700kw/h
Styles: horizontal / vertical
Available Fuel: coal, wood log, firewood, jute, solid fuel etc
Applied Industries: heating like food, beverage, wood chamber, greenhouse, building heating, hotel, school, etc

Introduction

  • CLSG is a hot water boiler, meanig vertical solid fuel fired hot water boiler, can provide heating or hot water for factory production.
  • CLSG wood fired hot water boiler 1. use fixed grate, could burning kinds of solid fuel, such coal, charcoal, wood, jute, biomass, waste etc, strong fuel adaptability;2. vertical design, spaced saved and reduce cost; 3. easy installation, only need to connect water and electricity and it can be put into use; 4. Over pressure, over temperature, low water level, automatic alarm interlock

  • We Yuanda Boiler has strict quality control department. Such as many tests for raw materials, boiler NDT((Nondestructive Testing) including X-ray Test, Ultrasonic Test, Magnetic particle Test, then three hydraulic pressure test before packaged.

  • Hot water boiler can heating up space, building, water or some special medium.
    Application: greenhouse, mining, building heating, hotel, school, hospital, lumber,  plating, construction, food, beverage, slaughthouse and many many

Characteristics

01


Packaged compact structure & Small footprint

1. Quick into use, only need connect oil/gas, fee water, electric power; 2. Adopts vertical structure, occupy small area, no need boiler room, reduce cost.


02


PLC control system, high degree of automation

Two sets of safety spare parts, high and low water level alarm and low water level interlock protection, steam overpressure alarm and interlock protection function


03


ND Economizer Design, Energy Saving

Recycle exhausted smoke to heat feed water, reduce exhaust smoke temperature, increase feed water temp then save fuel cost at least 6-10% per hour


Benefits

PROFESSIONAL ANSWER

From boiler solution, optimization to installation, 24 hours online, provide technical support and avoid risks for you

ENGINEER SUPPORT

Based on user needs, we supply tailored service, boiler drawing&PID system, boiler room design, foundation drawings etc


AFTER-SALE SERVICE

Full-life After sale service. With our professional technical experts and service team, skilled technology provides customers with professional services

CONSTRUCTION

Our engineer on-site guidance installation and commissioning, ensure boiler running perfect, free training for boiler operator

WHAT CAN YOU GET?

According to the customer production requirements, provide professional boiler solutions, cost analysis, project investment budget, boiler drawing&installation and commissioning service

Parameter

CLSG hot water boiler
Name  Rated  power(MW) Supply  Water  Temperature(° C) Return  Water  Temperature(° C) Efficiency(%) Heating  Area(m² ) Size(ø *H) Regerence  Weight(Kg)
CLSG0.12-95/70-AII 0.12 80 65 76 8.1 900*2600 550
CLSG0.24-95/70-AII 0.24 80 65 76 12.5 1100*2800 900
CLSG0.35-95/70-AII 0.35 80 65 76 19.2 1212*3420 1893
CLSG0.5-95/70-AII 0.5 80 65 76 22.1 1310*3780 3120
CLSG0.6-95/70-AII 0.6 80 65 76 24.3 1416*3780 3650
CLSG0.7-95/70-AII 0.7 80 65 76 39.5 1612*4420 3821
CLSG1.05-95/70-AII 1.05 80 65 76 48.8 1812*5200 4800
CLSG1.4-95/70-AII 1.4 80 65 76 74.6 2016*5300 5700
CLSG2.1-95/70-AII 2.1 80 65 76 109.4 2116*5500 7650

Recommend Boiler

WNS HOT WATER BOILER

Gas or diesel fired, horizontal fire tube structure, fully automatic running.

DZL HOT WATER BOILER

Coal or biomass fuel fired boiler, automatic and hand feeding 2 types.

LHS HOT WATER BOILER

Vertical gas or diesel fired hot water boiler, space saved, small type boiler.
