Vertical Oil/Gas Fired Boiler

Vertical boiler with oil/gas burner | Small steam/hot water boiler | Once through steam boiler

Vertical oil gas fired boiler with burner has 2 type, water tube and fire tube boiler. This boiler working under the normal pressure, small footprint, quick into use, no need boiler room, safe&easy operate.

Output: saturated steam, hot water
Thermal Capacity: 100-2,000kg/hr 120-1,400kw/h
Styles: fire tube, water tube
Available Fuel: heavy oil, diesel, furnace oil, biogas, NG, CNG, LNG, LPG, dual fuel
Applied Industries: food, beverage, diaries, feed mill, refinery, chemical, slaughterhouse, laundry, hotel, greenhouse, etc

Introduction

  • We have vertical gas oil fired boiler steam rating from 100kg/hr-2,000kg/hr | vertical hot water heating capacity from 100 - 1,400kw/h

  • Yuanda Boiler manufacturing vertical or horizontal gas(oil) fired boiler with complete spare parts, and equipped with world famous gas/oil burners, high efficiency & energy saving.

  • LHS/LSS series vertical oil gas boiler is a safe and high efficiency (95%) heating equipment with high automation, compact structure, reduce construction cost, working at normal pressure.

  • We Yuanda Boiler has strict quality control department. Such as many tests for raw materials, boiler NDT((Nondestructive Testing) including X-ray Test, Ultrasonic Test, Magnetic particle Test, then three hydraulic pressure test before packaged.

  • Widely used for processing like heating, drying, bottling, disinfection, sterilization, packaging, shaping, dehydration, distillation, cooking, cleaning, central heating, greenhouse heating etc...

LHS vertical boiler VS LSS vertical boiler

LHS vertical boiler LSS vertical boiler
Heat transfer medium steam/hot water steam
Design 3-pass fire tube 2-pass water tube
Thermal capacity 0.1-2(ton/h) 0.1-1(ton/h)
Operation Fully automatic Fully automatic
Combustion gas/oil/dual fuel burner gas/oil/dual fuel burner
Safety pressure <10(kg/cm²) <10(kg/cm²)
Max. temperature 184℃ 184℃
Applicable fuel oil, gas oil, gas

Characteristics

01

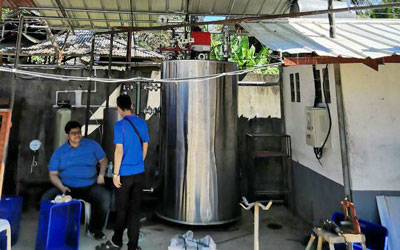

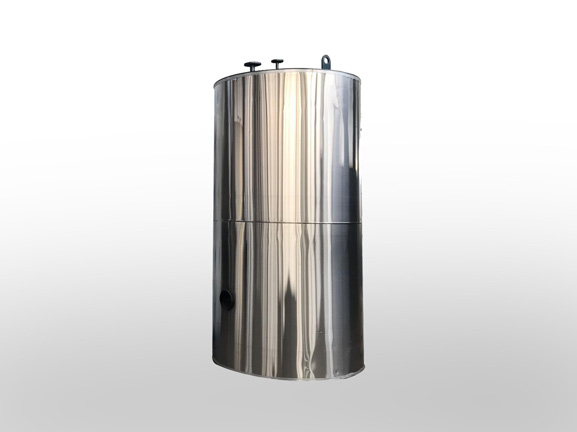

Packaged compact structure & Small footprint

1. Quick into use, only need connect oil/gas, fee water, electric power; 2. Adopts vertical structure, occupy small area, no need boiler room, reduce cost.


02

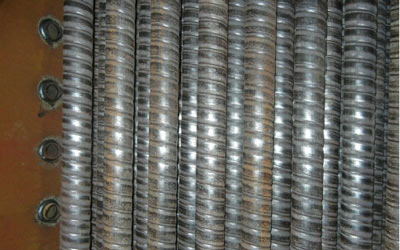

Spiral Fire Tubes(Smoke Tube) Technology

Use the advanced technology which is our patent to design the spiral tubes, enhance the boiler thermal power 10% higher than normal, and avoid the spiral tube from ash deposition and wearing


03

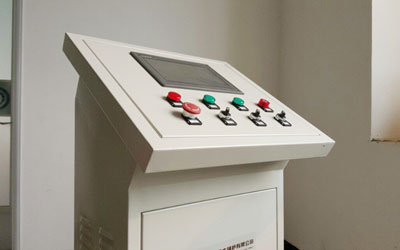

PLC control system, high degree of automation

Two sets of safety spare parts, high and low water level alarm and low water level interlock protection, steam overpressure alarm and interlock protection function

04

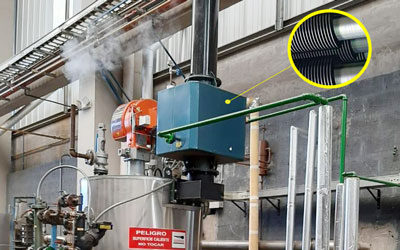

Economizer/Condensor Design, Energy Saving

Recycle exhausted smoke to heat feed water, reduce exhaust smoke temperature, increase feed water temp then save fuel cost at least 6% per hour

Benefits

PROFESSIONAL ANSWER

From boiler solution, optimization to installation, 24 hours online, provide technical support and avoid risks for you

ENGINEER SUPPORT

Based on user needs, we supply tailored service, boiler drawing&PID system, boiler room design, foundation drawings etc


AFTER-SALE SERVICE

Full-life After sale service. With our professional technical experts and service team, skilled technology provides customers with professional services

CONSTRUCTION

Our engineer on-site guidance installation and commissioning, ensure boiler running perfect, free training for boiler operator

WHAT CAN YOU GET?

According to the customer production requirements, provide professional boiler solutions, cost analysis, project investment budget, boiler drawing&installation and commissioning service

Parameter

vertical fire tube boiler

Recommend Boiler

WNS Fire Tube Gas Boiler

Horizontal oil gas fired fire tube boiler, fully automatic, 3-pass wet back design

SZS Water Tube Gas Oil Boiler

Horizontal oil gas fired water tube boiler, full membrane wall boiler, seamless

LSS Once Through Boiler

100-2000kg vertical water tube boiler, small footprint, low cost, quick into use
