Oil / Gas Fired Hot Water Boiler

Boiler with oil/gas burner | Central heating boiler | Boiler for heating

WNS oil/gas hot water boiler is packaged 3-pass wet back fire tube boiler, for central heating or improve water temperature.This boilers is fully automatic, designed to operate on a wide range of liquid and gaseous fuels like heavy oil, light oil, gas, and dual fuel options.

Transfer medium: hot water
Thermal Capacity: 0.12-14 mw 120-14,000 kw/h
Styles: horizontal / vertical
Available Fuel: natural gas, lpg gas, diesel oil, heavy oil, dual fuel
Applied Industries: heating/drying/domestic hot water, such hotel, wood, greenhouse, food, beverage

Introduction

  • YUANDA gas (oil fired) hot water boiler is a thermal energy equipment that provides hot water or central heating. Especially suitable for hotels, farms, slaughthouses, hospitals, greenhouses and other factory production (such as tea factory, electroplating industry, wood factory, precast factory, oilfield, autoclave, concrete).

  • This hot water boiler thermal capacity is 30,0000Kcal~20Mkcal / 350kw ~21,000kw. Out water temperature is 50℃130℃, could adjusted by clients requirements.

  • gas oil boiler, hot water boiler, industrial hot water boiler

  • This WNS gas/oil boiler is the automatic hot water boiler. It has advantages: "first furnace tube pass" "second fire tube pass" "three fire tube pass", "fully wet back & reversal chamber", "large corrugated furnace" and "patented thread pipe" technology. It equipped with  famous valve groups, and independently developed high-matching PLC control system to realize muitiple linkages. Over pressure, over temperature, low water level, air ignition alarm interlock. The lock protection function ensure the equipment running 100% safety.

  • YUANDA hot water boiler has different types: skid mounted hot water boiler is free of installation, could put into use soon; biomass burner with oil fire boiler can replace burner based on fuel cost; vertical hot water boiler is small occupy, no need building boiler room; containerised hot waer boiler can be moved easily, no venue restrictions.

Characteristics

01

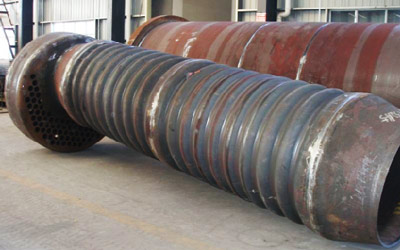

Spirally Corrugated Furnace & Wet Back Structure

1. Bigger corrugated furnace design, increased 10% heating area, also avoid damaged by heat expansion; 2. Wet back stucture reduce the back tube sheet temperature and protect it from cracking


02


3-Pass Spiral Fire Tubes (smoke tube) Technology

Use the advanced technology which is our patent to design the spiral tubes, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing



03


Double Layer 12cm Aluminum Silicate Insulation

We use double layer 12cm aluminum silicate insulation cotton, boiler surface temperature is not higher than 40 ℃, energy saving, also improve boiler efficiency

04

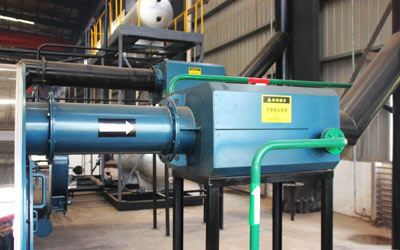

Economizer/Condensor Design, Energy Saving

Recycle exhausted smoke to heat feed water, reduce exhaust smoke temperature below 95 ℃, increase feed water temp then save fuel cost at least 6% per hour

Benefits

PROFESSIONAL ANSWER

From boiler solution, optimization to installation, 24 hours online, provide technical support and avoid risks for you

ENGINEER SUPPORT

Based on user needs, we supply tailored service, boiler drawing&PID system, boiler room design, foundation drawings etc


AFTER-SALE SERVICE

Full-life After sale service. With our professional technical experts and service team, skilled technology provides customers with professional services

CONSTRUCTION

Our engineer on-site guidance installation and commissioning, ensure boiler running perfect, free training for boiler operator

WHAT CAN YOU GET?

According to the customer production requirements, provide professional boiler solutions, cost analysis, project investment budget, boiler drawing&installation and commissioning service

Parameter

oil gas hot water boiler
Model Rated thermal power
(mw)
Rated working pressure
(Mpa)
Rated output water temperature
(℃)
Rated return water temperature
(℃)
Fuel consumption
Light diesel oil(kg/h) Natural gas(Nm3/h)
WNS 0.35-0.7/1.0/1.25/1.6-YQ 0.35 0.7/1.0/1.25/1.6 95/115/130 70 31.6 36.6
WNS 0.7-0.7/1.0/1.25/1.6-YQ 0.7 0.7/1.0/1.25/1.6 95/115/130 70 60.4 69.3
WNS 1.4-0.7/1.0/1.25/1.6-YQ 1.4 0.7/1.0/1.25/1.6 95/115/130 70 122.8 146.1
WNS 2.1-0.7/1.0/1.25/1.6-YQ 2.1 0.7/1.0/1.25/1.6 95/115/130 70 192.3 227.1
WNS 2.8-0.7/1.0/1.25/1.6-YQ 2.8 0.7/1.0/1.25/1.6 95/115/130 70 246.1 286.5
WNS 4.2-0.7/1.0/1.25/1.6-YQ 4.2 0.7/1.0/1.25/1.6 95/115/130 70 367.1 412.6
WNS 5.6-0.7/1.0/1.25/1.6-YQ 5.6 0.7/1.0/1.25/1.6 95/115/130 70 490.2 543.7
WNS 7.0-0.7/1.0/1.25/1.6-YQ 7.0  0.7/1.0/1.25/1.6 95/115/130 70 593.6 660.7
WNS 10.5-0.7/1.0/1.25/1.6-YQ 10.5 0.7/1.0/1.25/1.6 95/115/130 70 936.5 998.8
WNS 14-0.7/1.0/1.25/1.6-YQ 14 0.7/1.0/1.25/1.6 95/115/130 70 1200.8 1330.7
Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design.
