APPLICATIONS
6 ton and 12 ton dual fuel steam boiler, natural gas and diesel fired, for dyeing machine, stenter machine, and sizing machine in textile factory, Bangladesh.

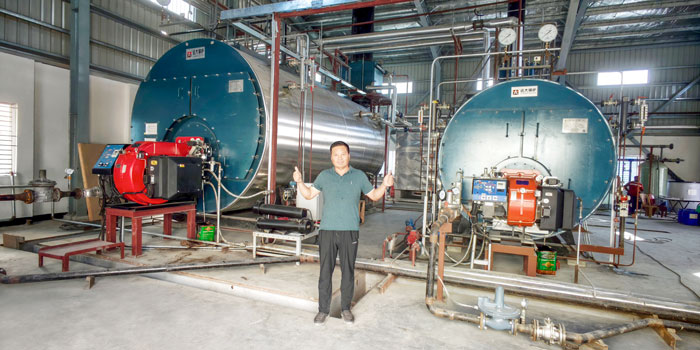

Yuanda Boiler installed two steam boilers at a textile factory in Bangladesh. The project includes one 6 ton and one 12 ton three-pass fire tube steam boiler. Both units use dual fuel: natural gas and diesel.
The boilers supply stable saturated steam at 13 bar for the dyeing machines, stenter machines, and sizing machines. They run 24/7 with automatic PLC control panel.
Visit related video : https://www.youtube.com/watch?v=geMGgVbH2OU
Visit related Linkein: https://www.linkedin.com/in/yuanda-boiler-suri-zhao-229578154/
Project point:
- Capacity: 6 t/h and 12 t/h
- Type: Three-pass fire tube steam boiler
- Layout: Horizontal boiler
- Fuel: Dual fuel – natural gas and diesel
- Steam pressure: 13 bar, saturated steam
- Operation: 7×24 hours continuous, automatic PLC control
- Application: Textile dyeing, stenter, sizing machines
- Location: Bangladesh
- Service: Installation by Yuanda engineers
6ton steam boiler diesel oil comsuption 388kg/h, natural gas comsuption 424m³/h; 12ton steam boiler oil comsuption 770kg/h, natural gas comsuption 847m³/h.

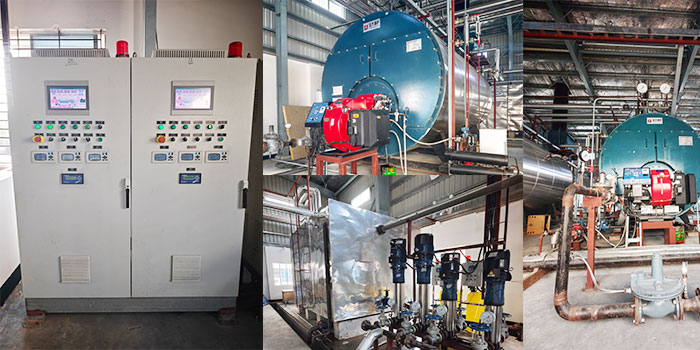

Complete Boiler Room Equipment
We also supplied the full boiler room system(turnkey boilers), including parts and drawings:
- CNP feed water pumps
- Softener water tanks
- USA Fleck water treatment system
- Steam distributor header with one inlet and three outlets
- Yuanda deaerator
- Chimney and duct
Customer Feedback
The customer reported that this three-pass fire tube steam boiler replacement helped them save 6% on fuel cost. The stable steam supply supports continuous textile production.
This project is a typical example in the Bangladeshi market, especially for the textile industry.
FAQ
Q: What type of boiler is suitable for a textile mill?
A: Depending on the operating temperature requirements of the textile mill, steam boilers or thermal oil boilers are typically used.
Q: Where else do you have projects in the textile industry?
A: We have established reference projects for textile mill boilers in many countries, including but not limited in Asia (Vietnam, Indonesia, Sri Lanka, Cambodia, the Philippines), the Middle East (Saudi Arabia, Egypt, Yemen, Kuwait, Oman), Latin America (Mexico, Peru, Guatemala, Argentina, Chile, Ecuador), and Africa (Zambia, Ghana, Uganda, South Africa, Madagascar, Nigeria).
Q: I have textile factory in Vietnam/Indonesia, gas diesel is expensive, can other fuels be used instead?
A: Certainly. Our DZL series (chain-grate boiler) and SZL series (water-tube boiler) can utilize solid coal or biomass wood, offering a better return on investment.
Coal or biomass fuels are generally more cost-effective; if you have access to wood waste, woodchips, tree barks, biomass residues, or agricultural waste, that is even better. We can utilize these materials as boiler fuel—burning them in boiler then generate thermal energy (steam or thermal oil) required by your textile mill—which not only reduces costs but also supports sustainable development.
