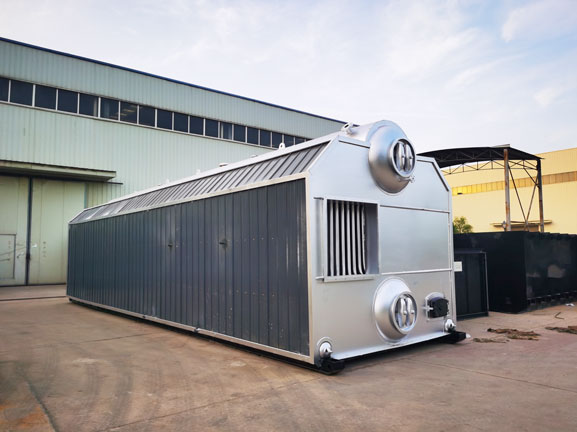

Coal Biomass Fired Superheated Steam Boiler

SZL SZW Superheated Steam Boiler, Cog eneration steam boiler

SZ series assembled industrial coal biomass fired superheated steam boiler is a double-drum water tube boiler, fuel burning on chain grate, reciprating grate or step grate. The maximum pressure of the boiler can reach 3.82 Mpa, widely used for electricity generation and factory production.

Output: steam
Model: SZL SZW SZF
Capacity: 1-40 ton/hr
Available Fuel: biomass, coal, sawdust, bagasse, palm shell/fiber, pellets, husks.
Applied Industries: steam boiler for factory and turbine, such food, beverage, feed mill, textile mill, paper mill, refinery, chemical etc

Introduction

  • SZ series assembly industrial coal biomass fired superheated steam boiler is a double-drum water tube boiler, fuel burning on chain grate, reciprating grate or step grate. The maximum pressure of the boiler can reach 3.82 Mpa / 450℃, widely used for electricity generation and factory production.

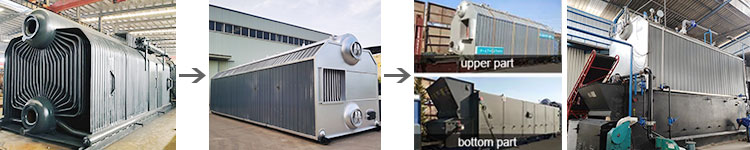

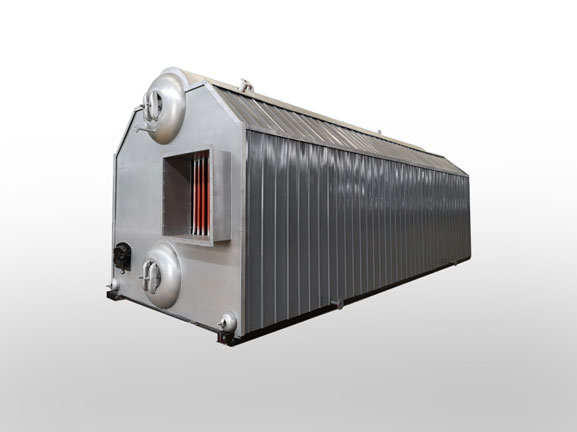

  • sz series coal biomass fired superheated steam boiler 360° looking

  • Our company SZ type boiler is a double-drum water tube assembly chain grate boiler (A type layout). The boiler proper has an upper drum and a bottom drum longitudinally arranged along the boiler center. The front of the upper drum and two sides water wall tubes constitute the boiler hearth radiation heating surface, and the tubes between the rear of the upper drum and the bottom drum constitute the convection heating surface. The economizer is arranged on the rear of the boiler, part of heat from high temperature exhaust gas generated by burning was absorbed by economizer, then the exhaust gas go through the cooling chamber,exhaust gas enters the convection heating surface to transfer heat power again, and through economizer,dust collector, finally draught by ID fan to Chimney,discharges into the atmosphere.

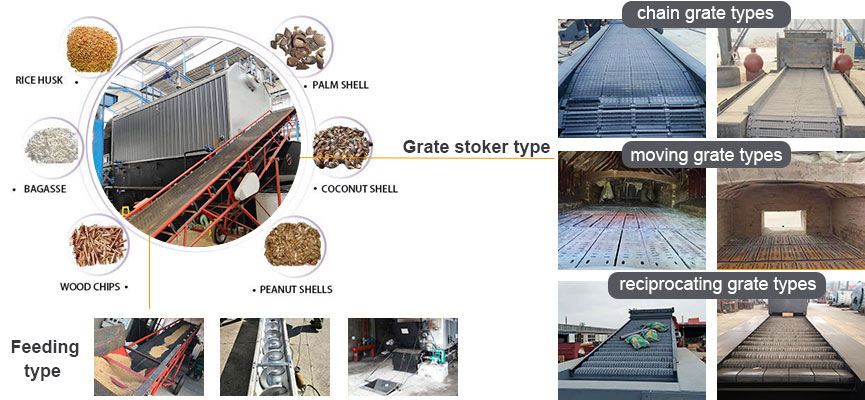

  • industrial coal biomass supeheated steam boiler details

  • SZL SZW superheated steam temperature:184℃,194℃,205℃,226℃,280℃, 300℃, 350℃, 350℃, 400℃, 450℃. Pressure: 1.25mpa to 3.82mpa. Over pressure, over temperature, low water level, air ignition alarm interlock. The lock protection function ensure the equipment running 100% safety.

  • Please share required datas and the relevant needs of your superheated steam boiler.

Typical Project

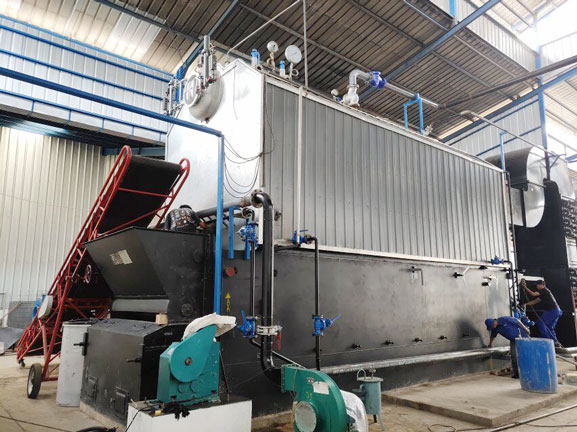

biomass superheated steam boiler

Product Advantages

★ The double-drum vertical arrangement and upper and lower assembly save the floor area of the boiler room.

★ It adopts large grate area, improving fuel adaptability and combustion efficiency.

★ The boiler has high dedusting efficiency, built-in deashing, and low original dust discharge concentration;

★ It has complete control function, is safe and steady, and guarantees the operation more;

★ It adopts a close isobaric wind chamber with more uniform air distribution and smooth regulation;

★ Its arch is designed by adopting momentum method, and “α” flame has more sufficient combustion;

★ The new arch and insulating materials have little radiation loss and increased heat efficiency;

★ It is novel in appearance, beautiful and pragmatic.

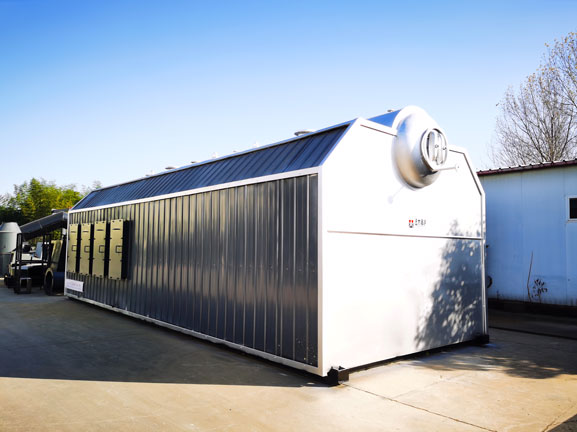

szl superheated steam boiler

We Provide

PROFESSIONAL ANSWER

From boiler solution, optimization to installation, 24 hours online, provide technical support and avoid risks for you

ENGINEER SUPPORT

Based on user needs, we supply tailored service, boiler drawing&PID system, boiler room design, foundation drawings etc

AFTER-SALE SERVICE

Full-life After sale service. With our professional technical experts and service team, skilled technology provides customers with professional services

CONSTRUCTION

Our engineer on-site guidance installation and commissioning, ensure boiler running perfect, free training for boiler operator

WHAT CAN YOU GET?

According to the customer production requirements, provide professional boiler solutions, cost analysis, project investment budget, boiler drawing&installation and commissioning service

Parameter

SZL MODEL
Boiler model Rated capacity Rated Rated steam temp. Feed water temp. Exhaust gas temp. Design effiency Boiler water volume Weight Dimension Delivery mode
pressure
ton/h Mpa ºC  m2 ºC %  m3 ton mm
SZL2 2 1.25/1.6/1.8/
2.5/3.82
194/204/
226/300/350/450
20/105 130.67 83.13 6.76 22 5900×2850×3460 Package
SZL4 4 142 84.23 5.1 29 6460×3280×3462 Package
SZL6 6 142 84.81 8.4 34 7830×3560×3462 Package
SZL8 8 149.15 85.02 9.4 40.5 8870×3670×3462 Package
SZL10 10 152.7 86.2 8.35 24 7645×3180×3526 Assembly
SZL12 12 148.7 86.56 12.8 37 9258×3294×3524 Assembly
SZL15 15 149.86 86.29 15.5 24.7 11010×3300×2200 Assembly
SZL20 20 147.4 86.8 15.8 25.97 16680×6200×8420 Assembly
SZL25 25 149.6 86.4 16.5 28 8300×3000×3600 Semi-Assembly
SZL30 30 148.6 86.8 16.8 29 8500×3600×3640 Semi-Assembly
Notice:
For place limited, we didnot list all models. Please contact us directly for get specifics.
