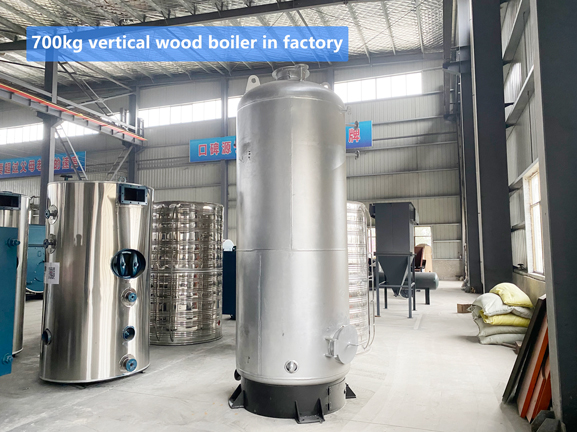

700kg vertical wood boiler

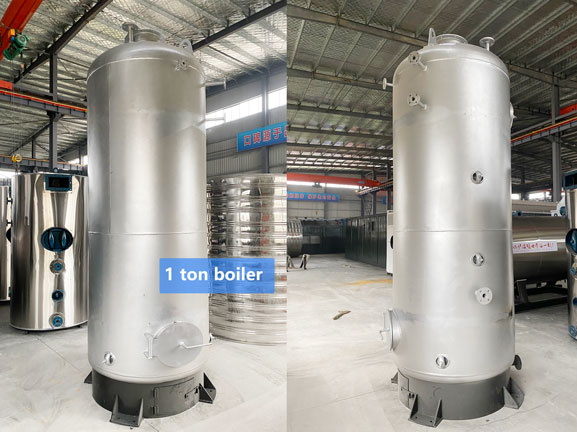

1 ton vertical biomass boiler

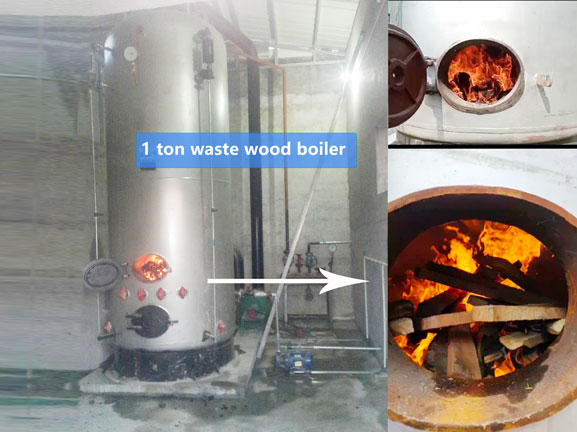

1 ton waste wood boiler

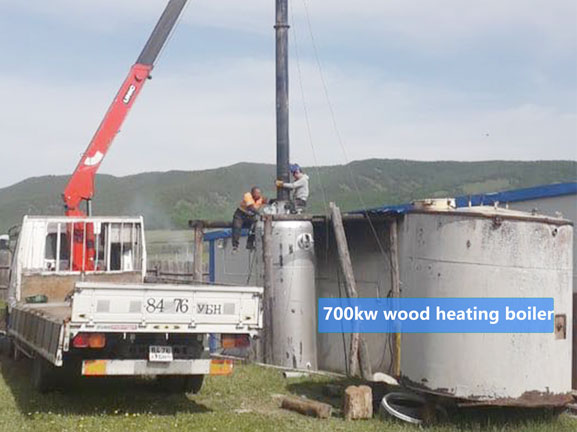

700kw wood vertical boiler
700kg vertical wood boiler
1 ton vertical biomass boiler
1 ton waste wood boiler
700kw wood vertical boiler

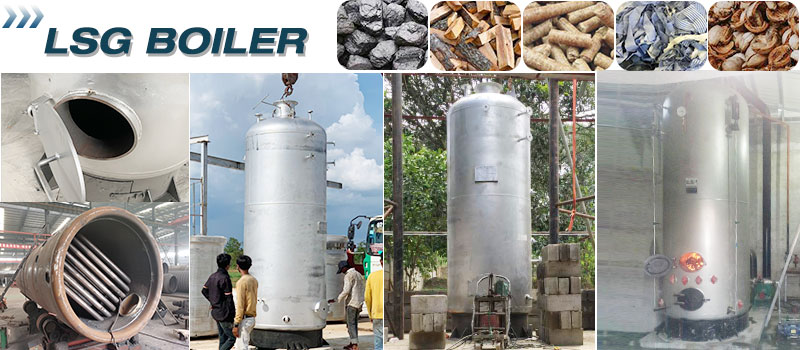

Small Vertical Wood Biomass boiler

vertical water tube boiler | fixed grate boiler | vertical wood biomass boiler

The LSG vertical boiler also known as small wood biomass boiler. It is the vertical fixed grate boiler with water tube. It can burn firewood, log, coal, biomass, waste jute, charcoal, pellets. Steam capacity 100kg 200kg 300kg 500kg 700kg 1000kg 1500kg 2000kg.

Output: steam, hot water
Heating Capacity: 100-2,000kg/hr 120-1400kw/h
Horsepower: 10hp to 120hp
Fuel: logs, firewood, pellets, coal, waste fabric, briquette, coconut shell etc
Applied Industries: food, diaries, milk, tofu, feed mill, garment, packaged, chemical, laundry, hotel, greenhouse etc

Introduction

The LSG vertical boiler also known as small wood biomass boiler. It is the vertical fixed grate boiler with water tube. It can burn firewood, log, coal, biomass, waste jute, charcoal, pellets.

Steam capacity 100kg 200kg 300kg 500kg 700kg 1000kg 1500kg 2000kg. Heating capacity 70kw to 1400kw.

vertical wood boiler, vertical biomass boiler, small biomass wood boiler

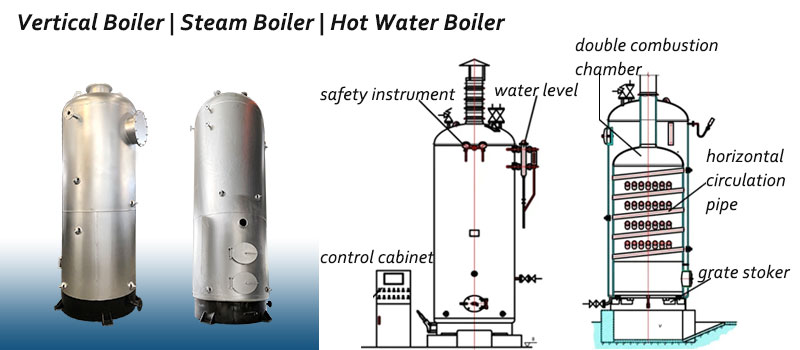

Main Features

1. Low pressure operation, safe and quick steam/hot water generation
2. Vertical type, small area occupied, lowinvestment cost
3. Simple structure, easy to use and installation
4. Double-deck fire grate combustion chamber design, flue gas burn twice, low fuel consumption
5. Horizontal circulation water pipe with large heating area, better water circulation, low requirments for water quality
6. Water level and pressure automatic control
7. It is easy to operate and maintain, small in size and low in capital investment, more economical boiler options for scale factory.

Hot Model Wood Boiler

01

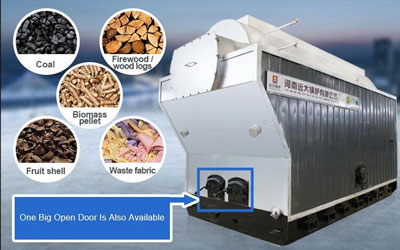

DZH Horizontal Wood Boiler

Hand feeding wood/biomass boiler with the highest fuel adaptability. Moving grate boiler, can customized feeding door according different fuel such as firewood, briquette, logs, wood waste, rice husk, palmshells etc.

02

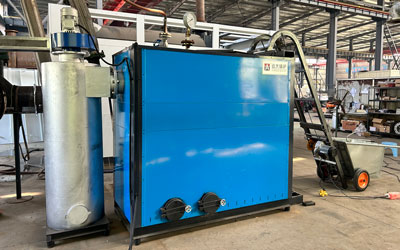

CWHS Wood Biomass Steam Generator

Small wood biomass industrial steam generator. Integrated structure, only need connect water, electric, steam pipe, easy to install and maintain.

About Yuanda

■ Founded in 1956, a quality supplier assessed, certified and inspected by SGS Group
■ CE ASME DOSH EAC GOST ISO TUV BUV high standard boiler certification
■ More than 17 years of export experience, gold medal supplier, guarantee payment and shipment.
■ Strong technical center, professional pre-sale boiler suggestions and customized drawing services
■ Full service team, providing local installation and after-sales service.
■ Support video/VR or third party factory inspection

■ Provide quality assurance service and free replacement during the warranty period.

Parameter

LSG steam boiler
Model Rated steam output
(Ton/hr)
Rated steam pressure
(Mpa)
Rated steam temperature
(℃)
Feed water temperature
(℃)
Thermal efficiency(%) Overall dimension (m)
LSG0.1-0.4-T 0.1 0.4/0.7(4-10 in bar) 130~174 20 89 0.8x 1.94
LSG0.2-0.4-T 0.2 0.4/0.7(4-10 in bar) 130~174 20 89.2 0.9x 2.7
LSG0.3-0.4/0.7-T 0.3 0.4/0.7(4-10 in bar) 130~174 20 89.5 1.2x 2.58
LSG0.5-0.4/0.7-T 0.5 0.4/0.7(4-10 in bar) 130~174 20 89.6 1.3x 2.95
LSG0.7-0.4/0.7-T 0.7 0.4/0.7(4-10 in bar) 130~174 20 91 1.6x 3.0
LSG1-0.4/0.7-T 1 0.4/0.7(4-10 in bar) 130~174 20 91 1.5x 3.2
Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design.
