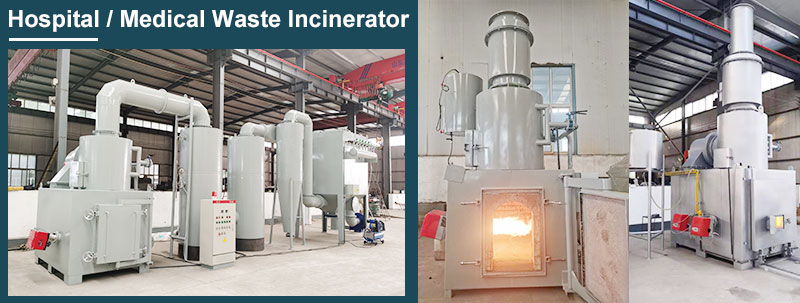

Incinerator Machine for Medical/Hospital/Infectious/Plastic/Solid Waste

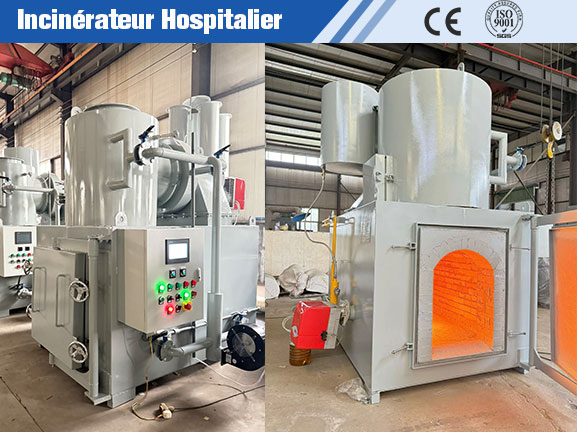

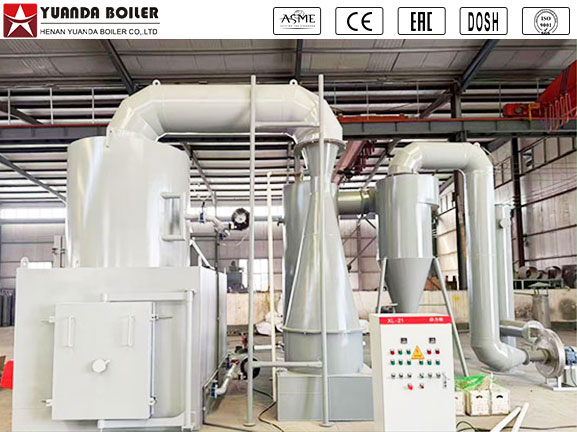

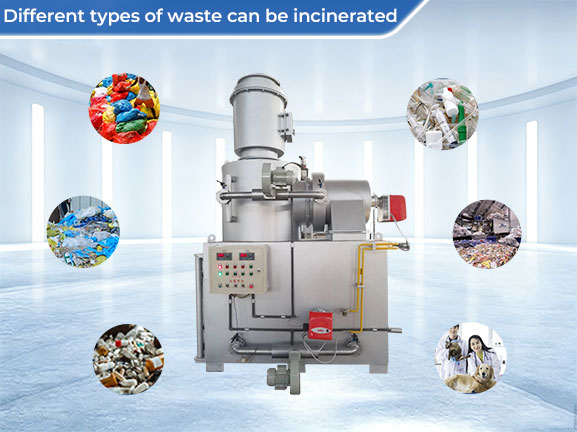

Yuanda Boiler developed YDF double chambered incinerator for hospital and medical waste disposal. It is approved by CE ISO certification, smokeless and odorless. Especially suitable for incineration of hospital waste, infectious waste, sharps, sanitary napkins, medical waste, biological waste, plastic waste, public waste, industrial waste, etc.
| Model: | YDF |
| Capacity: | 20kg, 30kg, 50kg, 100kg, 150kg, 200kg, 300kg, 400kg, 500kg, 750kg |
| Type: | Manual, Automatic, Mobiled |
| Fuel: | Gas, Diesel |
| Application: | Solid waste, medical waste, industrial waste, general garbage,and other special waste |
Introduction

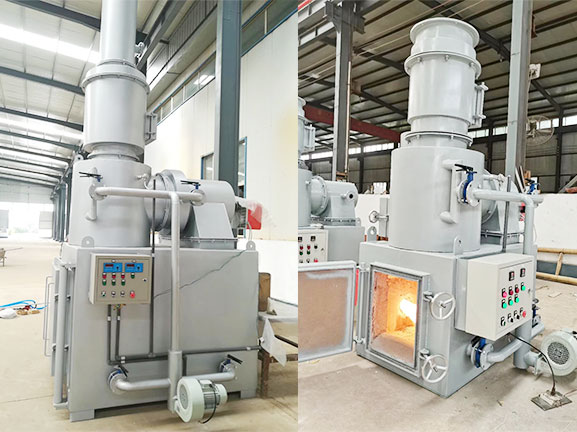

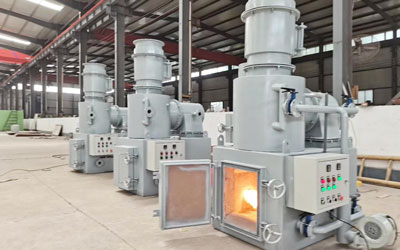

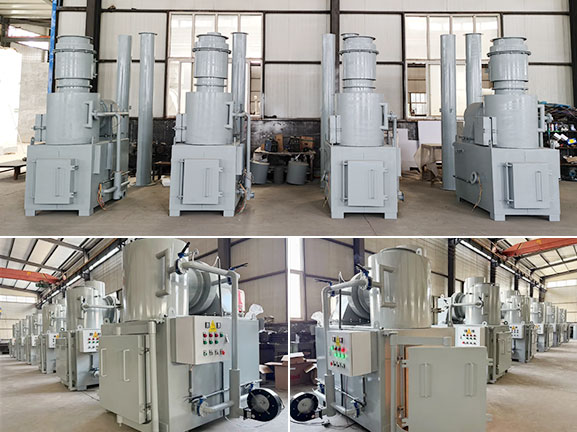

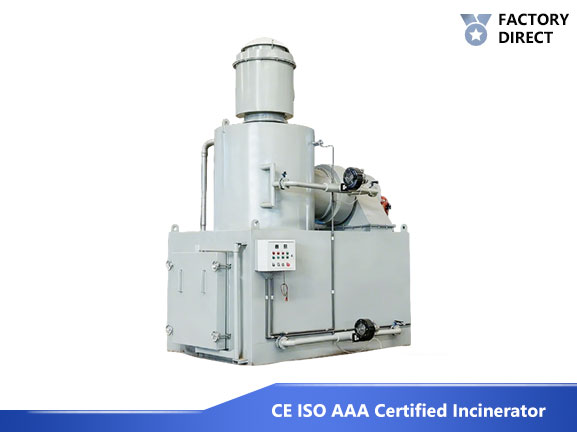

Yuanda Boiler developed YDF series medical hospital waste incinerator, vertical type funace body, compact size, high rate of burning, easy to operate. It adopts advanced gasification unit pyrolysis combustion, multi-stage flue gas purification system, fully enclosed operation, environmentally friendly, smokeless and odorless.
Negative pressure combustion without backfire, incineration temperature is 800-1100℃, flue gas residence 2 seconds. Especially suitable for incineration of hospital waste, infectious waste, sharps, sanitary napkins, medical waste, biological waste, plastic waste, public waste, industrial waste, etc.

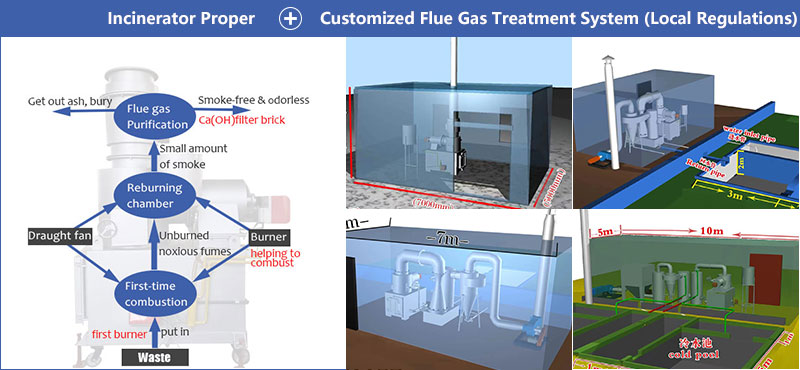

Treatment Process: primary combustion-secondary combustion-water cooled cyclone dust removal-primary spray tower-secondary spray tower-induced draft fan-chimney discharge.

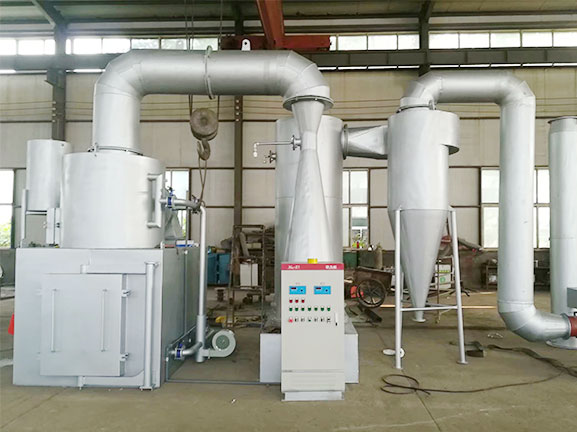

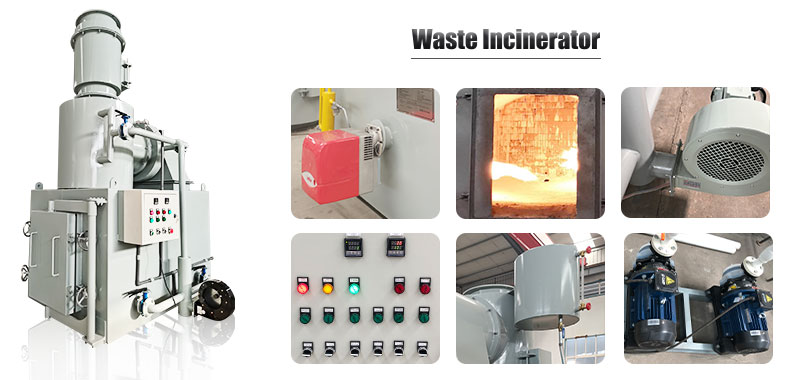

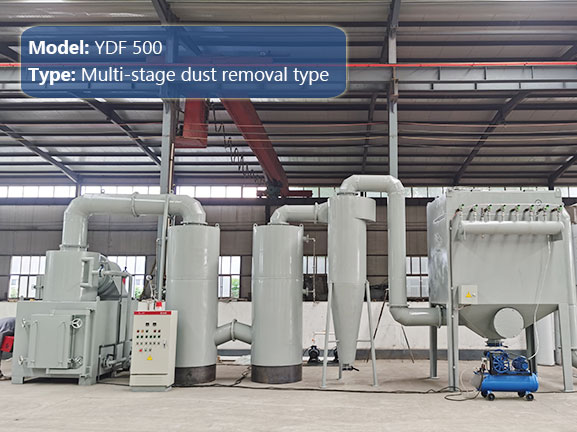

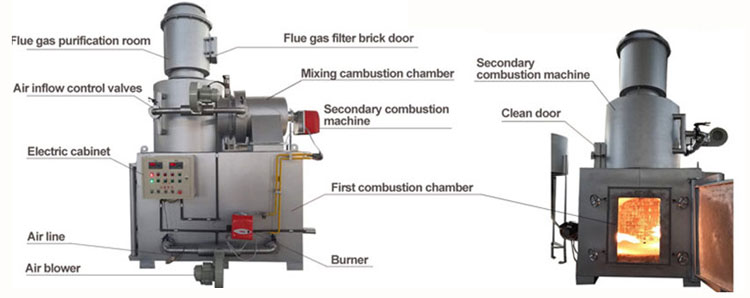

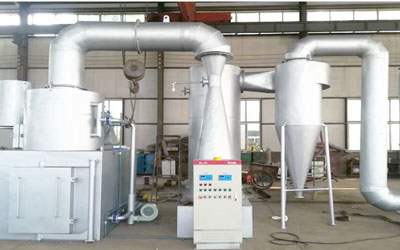

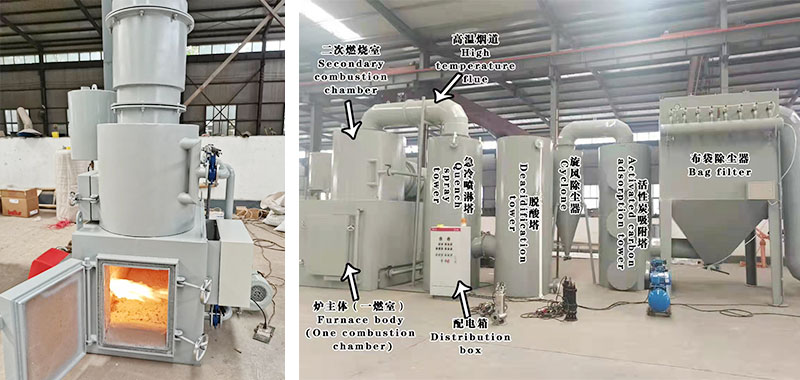

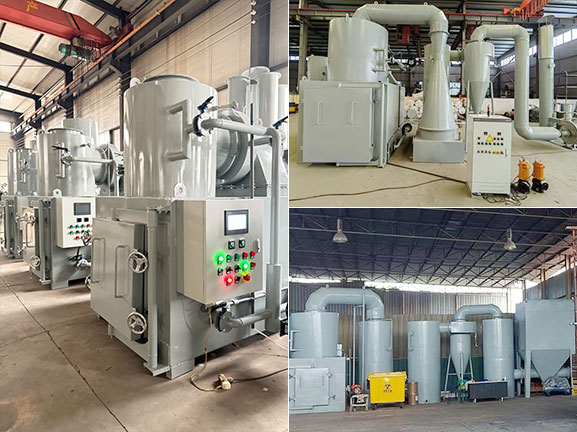

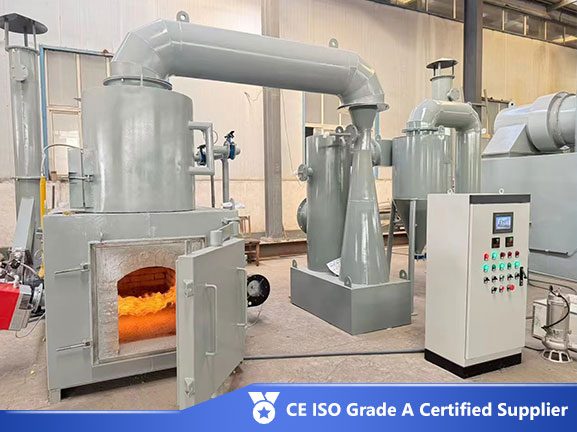

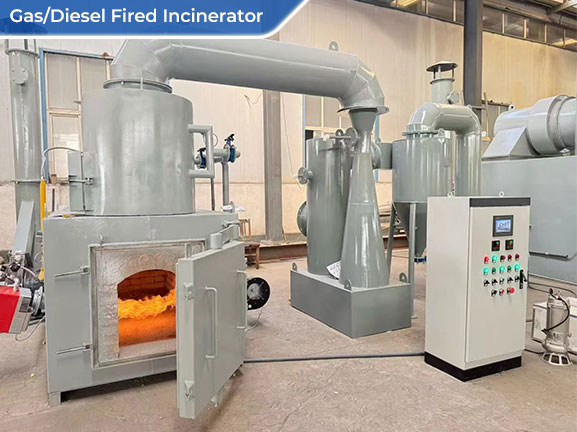

Yuanda Boiler incinerator is mainly composed of vertical furnace body, secondary combustion chamber, water-cooled cyclone dust collector(or venturi scrubber), primary spray tower, secondary spray tower, induced draft fan, chimney.

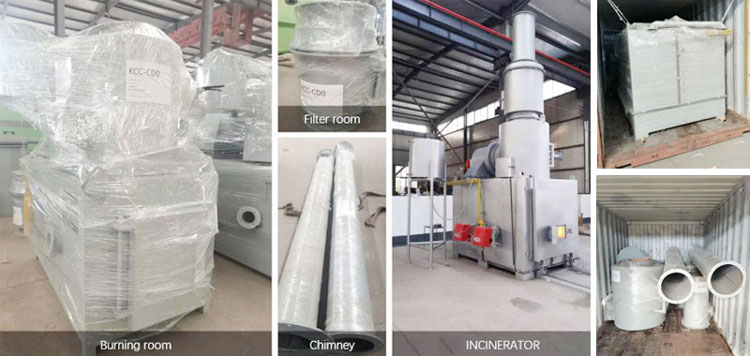

And it is very easy to install: 1. All parts detachable to small pieces - convenient for transportation; 2. Flange connections reserved - easy to assemble with bolt at worksite; 3. Clear marks at wires & flanges - as assemble guidance.
■ Founded in 1956, reliable and leading supplier inspected by SGS Group;
■ CE ISO certified;
■ More than 17 years of export experience, gold medal supplier, guaranteed payment and delivery;
■ Integrating research&development production and sales;
■ Support video/VR or third party factory inspection;
■ Projects covered more than 108 countries.
Advantages
01

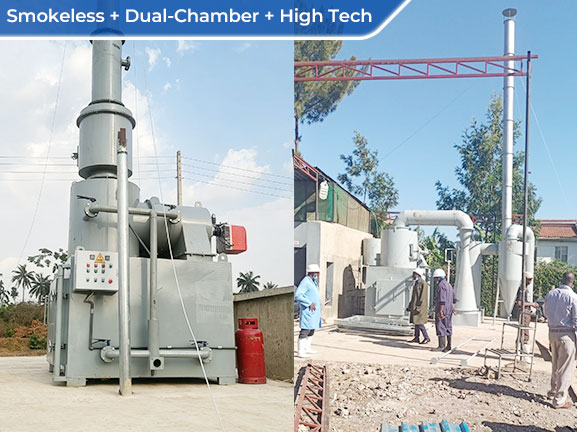

Smokeless and Odorless, Low Emission CE Standards
①High-temperature pyrolysis gasification technology+mixed incineration+burnout treatment ②Incineration efficiency＞99.9%, the chamber temperature up to 1200°C, retention 2 seconds ③Enclosed burning, avoid secondary pollution ④Single/double/multi-stage flue gas treatment;
02
High Burning Rate, Save Fuel, Low Cost

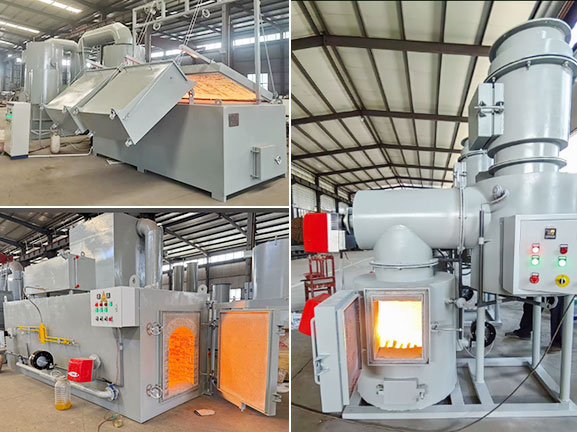

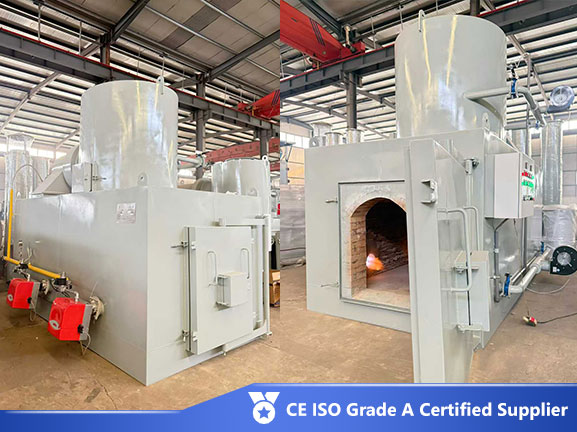

①Double chamber for incineration ②100% imported Italy Baltur brand burner, less failures ③When the temperature of the first combustion chamber reaches the set temperature, the burner is automatically shut down and the residual temperature is used for incineration.
03
Long Using Life and Easy Operation

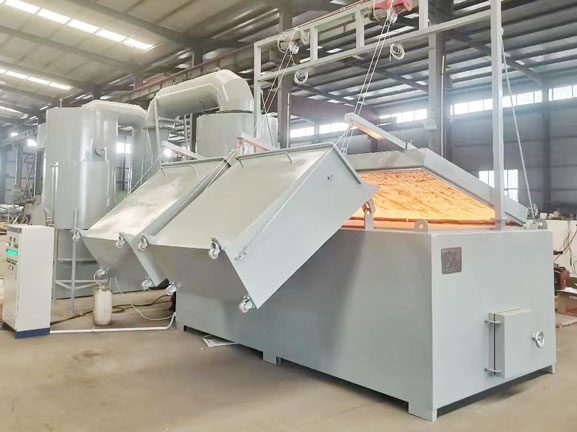

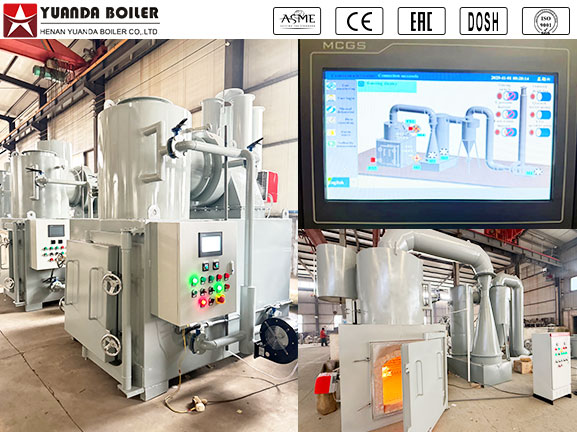

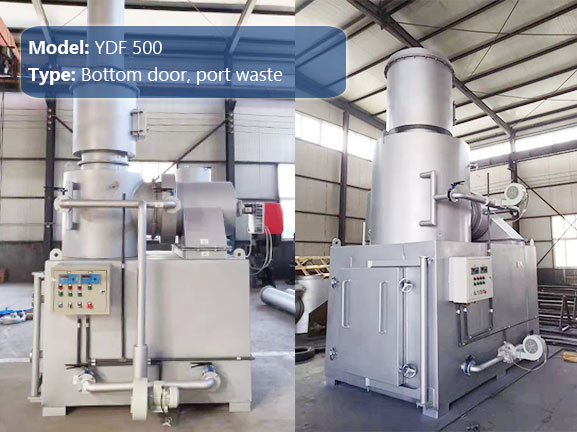

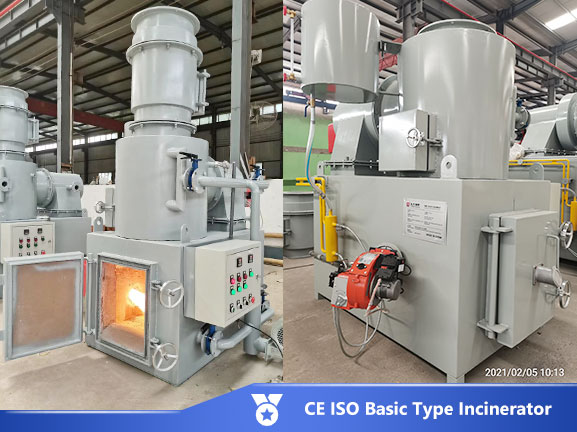

①Pre-assembled and well-debugged in factory. On-site flange connection ②Easy operation, full automatically, one worker can operate it easily.③Use ceramic fiber sealing tape rather than asbestos material ④Front opening to facilitate loading and easy collect slags .
04

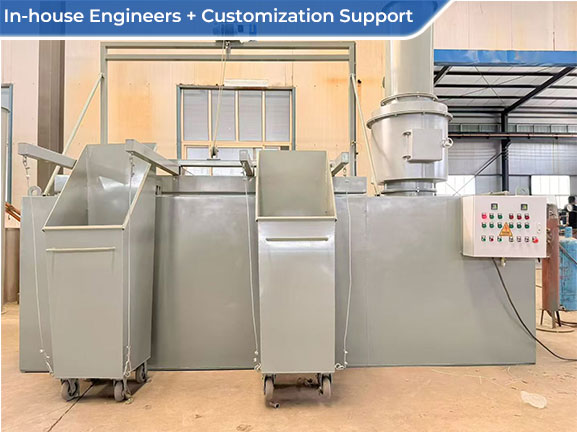

Professional Customized Incinerator Solutions

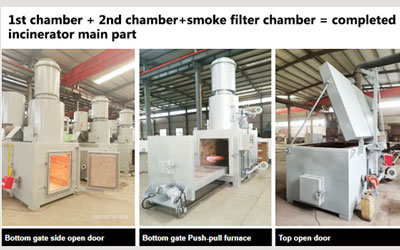

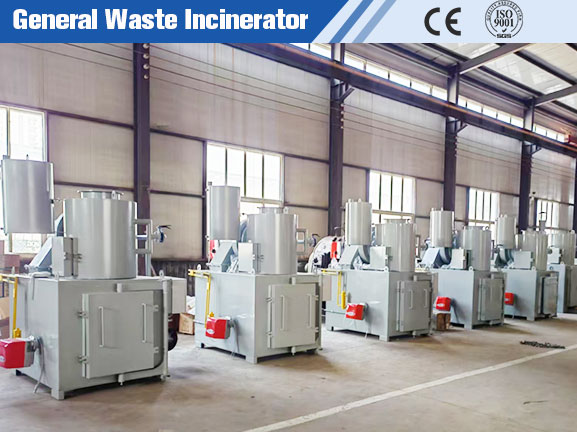

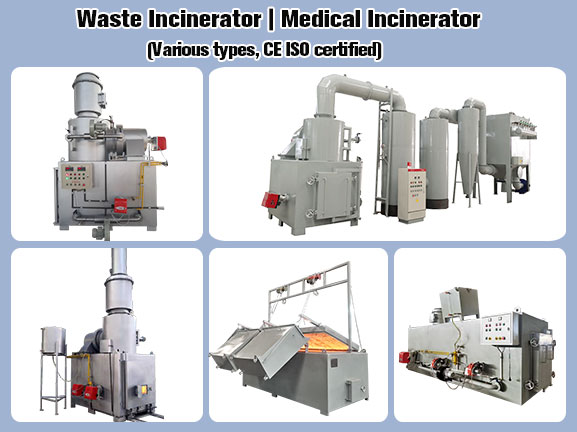

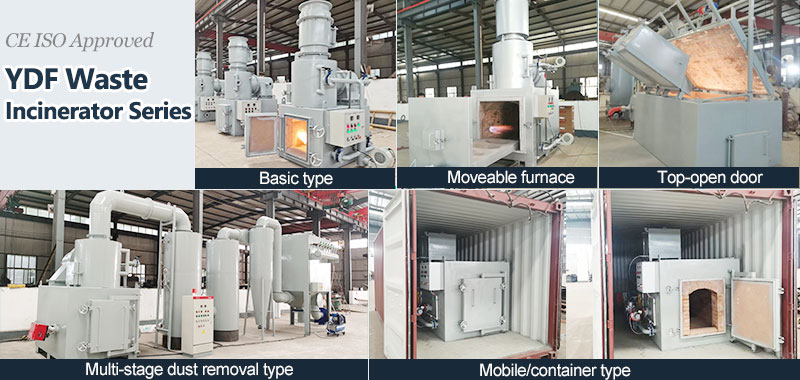

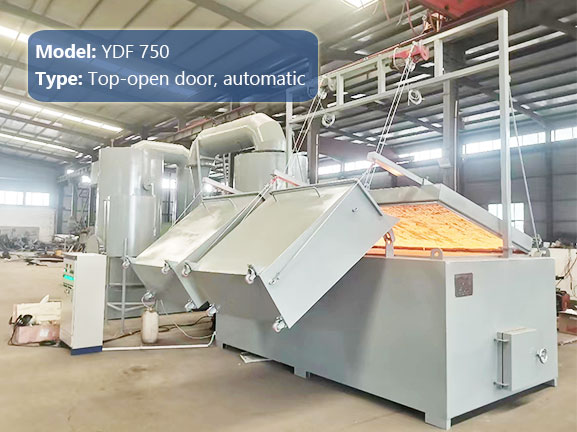

Custom designs are available depending on the type of waste. Such containerized incinerators, mobile incinerators, automatic incinerators, front loading incinerators or top loading incinerators.
Why Choose Us
Founded in 1956, Gold supplier certified by SGS Group; Over 16 years export experiences, payment&shipping protection
65 years experience, provide pre-sale incinerator proposal & cost anslysis for customer select; Technical discussion, customized incinerator & drawing.
Directly factory low price&quality protection; With CE ISO high standard certified; Exported to 108 countries.
Two years warranty; Video/VR factory inspection; Completed technology & after-sale service team; Abroad installation and training service etc.
According to the customer production requirements, provide incinerator solutions, cost analysis, investment budget, drawing, installation and commissioning service.

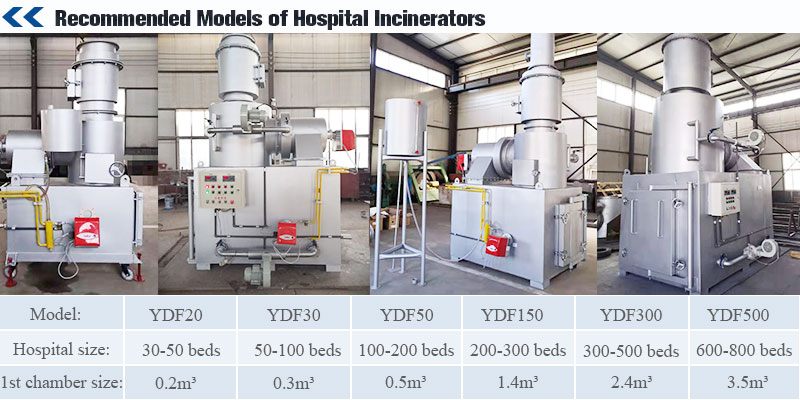

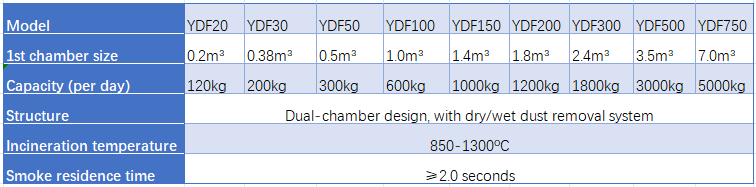

Parameter
| Model | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 |
|
Burning Capacity (5-6 batch/day) |
20-30kg/h | 20-30 kg/h | 30-50 kg/h | 50-100 kg/h | 100-150 kg/h | 200-300 kg/h | 300-500 kg/h |
| Incinerator Size(m) (L*H*B) | 1.6*1.3*1.75 | 1.45*0.9*2.55 | 1.8*1.15*3 | 1.8*1.4*3.4 | 2*1.4*3.5 | 2.2*1.4*3.8 | 3*2*4.8 |
| Imputing Size(mm) | 380*480 | 480*600 | 620*800 | 760*960 | 760*960 | 900*1100 | 1080*1280 |
| Chimney External Diameter(mm) | 280 | 280 | 280 | 300 | 300 | 400 | 460 |
| Draught Fan | 0.25kw | 0.37kw | 0.37kw | 0.5kw | 0.5kw | 1.1kw | 1.1kw |
| Voltage |
380V 220V |
380V 220V |
380V 220V |
380V 220V |
380V 220V |
380V 220V |
380V 220V |
| Weight(kg) | 1800 | 3000 | 5000 | 7000 | 8200 | 10000 | 16000 |

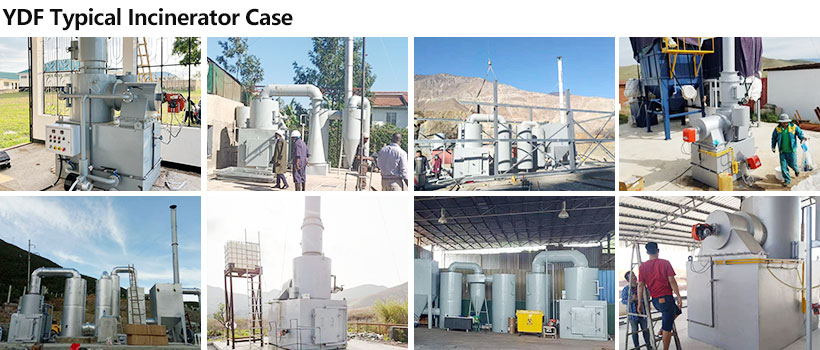

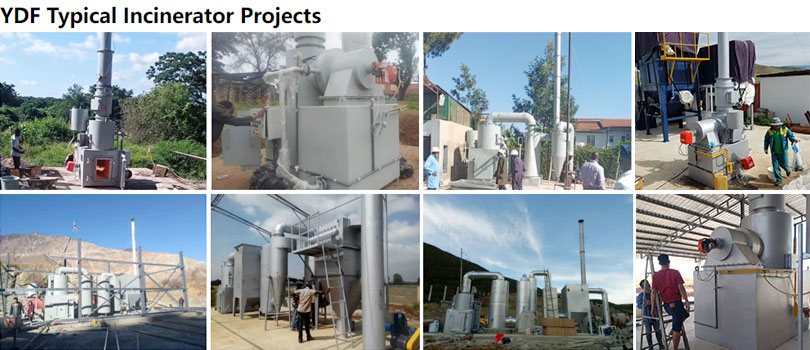

Relate Cases
