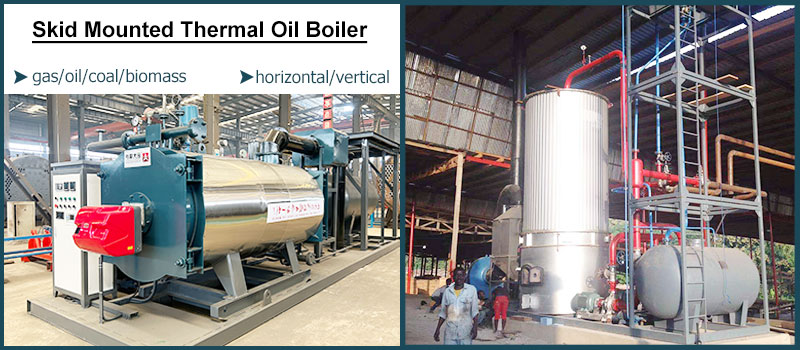

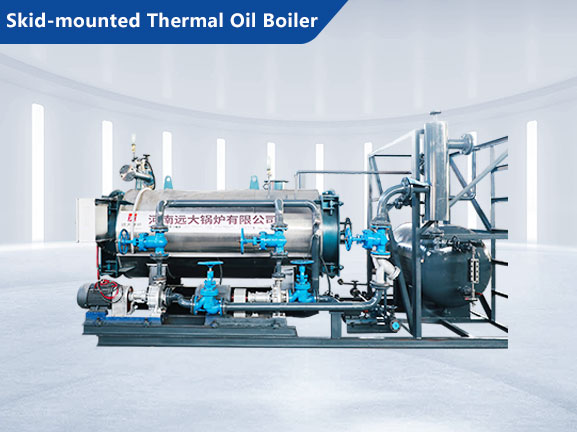

Skid-Mounted Thermal Oil Boiler

Skid thermal oil boiler | Skid thermal oil heater | Oil heating boiler

Skid-mounted thermal oil boilers, also known as packaged oil heating boiler solution. Yuanda Boiler pre-installed, skid-mounted thermal oil heater systems offer a comprehensive, ready-to-use solution for various fluid heating. Can fueled by gas, diesel, coal, wood, electricity. Capacity 210kw-7000kw, 200000kcal-6 mkcal.

Output: hot oil
Capacity: 210kw to 7000kw, 200,000kcal to 6m kcal
Style: horizontal or vertical
Pressure 0-1.6Mpa, 0-16bar
Applied Industry: Chemical and Petrochemical, Plastics and Rubber, Food and Beverage, Pharmaceuticals and Cosmetics, Textiles and Paper, Woodworking, Automotive, Machinery manufacturing

Introduction

Skid-mounted thermal oil boiler, a kind of all-in-one, ready to use hot oil heating boiler solution. Can fueled by gas, diesel, dual fuel, coal, biomass, electric.

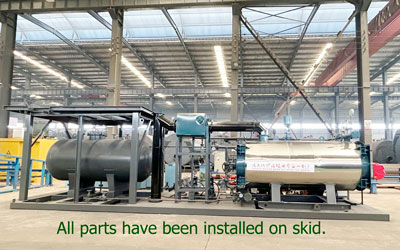

The whole boiler system, inclusive of all accessories and pipes&valves, meticulous pre-installation and commissioning by Yuanda Boiler engineer, firmly anchored to a steel skid. space-efficient with minimal footprint, reducing installation time and labor.

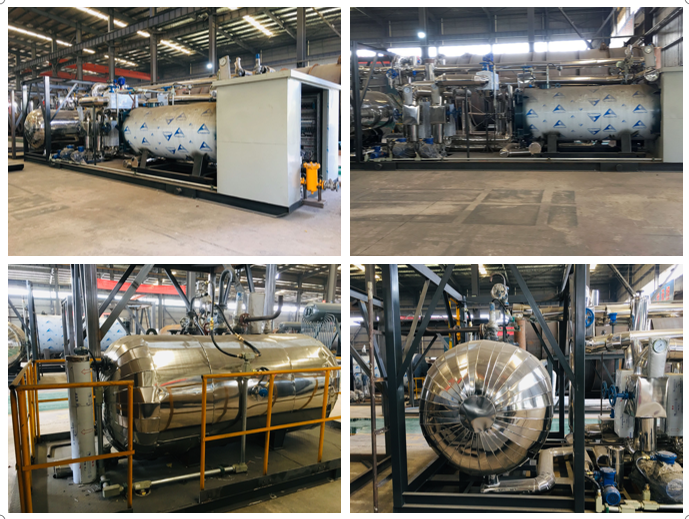

skid mounted thermal oil boiler, boiler thermal fluid oil

●Certified by ASME CE ISO DOSH EAC TUV BUV. Meet different boiler standard in the world, long life assurance.

●Equipped with first-level brand burner, automatic operation of ignition, flameout, big/small fire switch

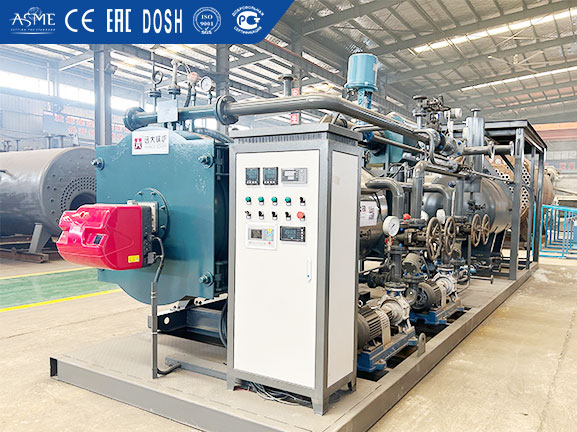

●PLC automatic control, interlock system for burner, oil temeperature, pressure.

●Energy saving device, such preheater.

Features & Advantages

01

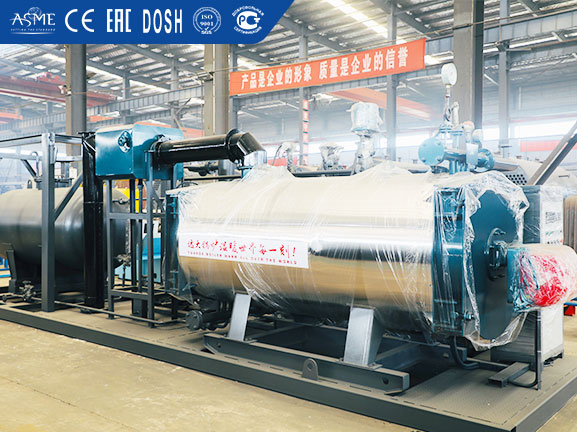

asme code thermal oil boiler skid mounted

Ready to Operate Boiler, Efficiency and Time Savings

①Reducing installation time and labor compared to conventional thermal oil boiler; ②Easy to dismantle and reposition; ③Connect oil pipes, electric then put into use soon; ④Space-efficient with minimal footprint.

02

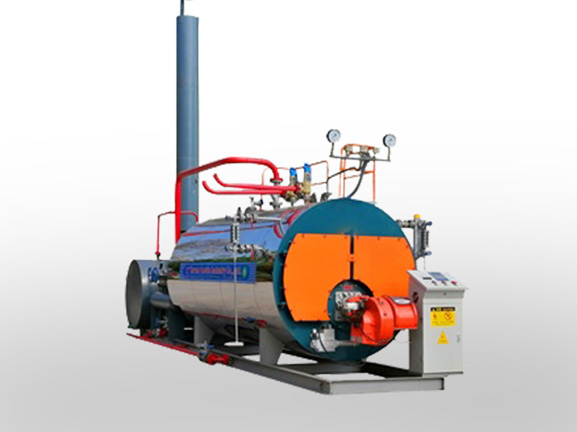

350kw skid mounted thermal oil boilers

High Efficiency, Save Fuel and Running Cost

①3-pass wet back; ②Oil cover fire structure; ③Compact coil tube, no gaps; ④Double Layer 12cm aluminum silicate insulation


03

1400kw 1200000kcal thermal oil boiler

High Security, 100% Safe Easy Operation

①High-matching PLC control & digital display; ②Pressure protection; ③Super/lower oil temperature alarm, Low oil flow alarm, Over exaust gas temperature alarm; ④Oil level protection.

04

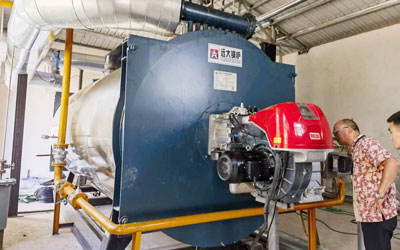

thermal oil boiler 3500kw oil heater boiler

Long Using Life and Convenient for Maintenance

①Outputting oil tank external design, prevent oil carbonization, easy for maintenance;②Explosion-Proof door, make sure safety;③Rapid solidification and high-strength refractory building materials;④Double door for check

Application

Thermal oil boiler used in: Chemical and Petrochemical, Plastics and Rubber, Food and Beverage, Pharmaceuticals and Cosmetics, Textiles and Paper, Woodprocessing, Automotive, Machinery manufacturing etc.

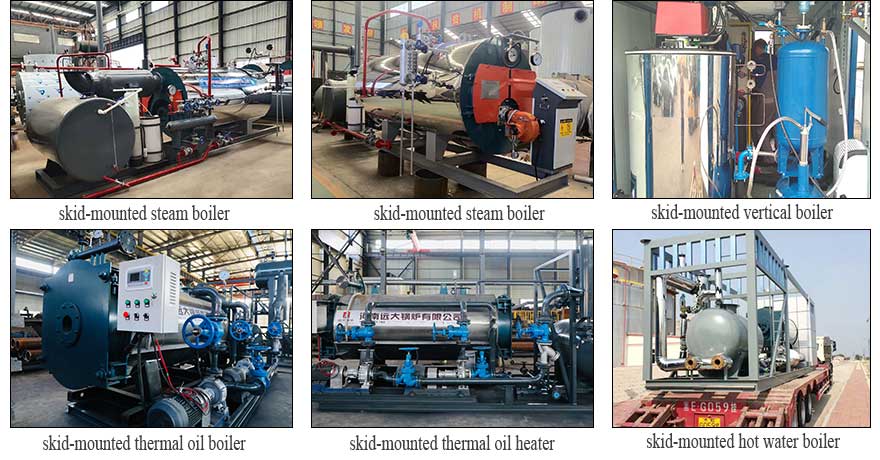

Related Product

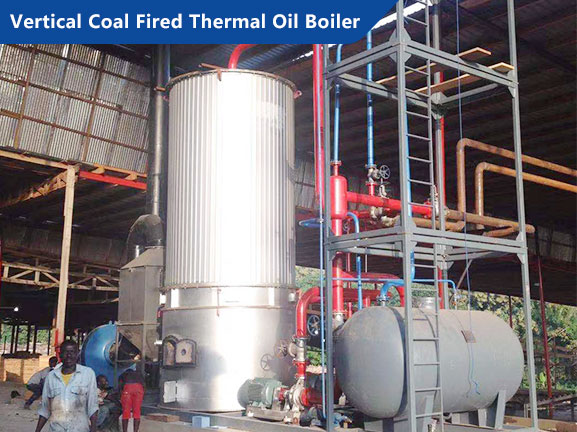

Besides our extensive range of oil and gas-fired thermal oil boilers, we also proudly offer coal-fired, biomass/wood-fueled, and vertical thermal oil boiler to cater to diverse customer needs.

Simply share your preferred fuel type and heating demands with us, we will be delighted to furnish you with a tailored, professional thermal boiler solution.

About Our Company

■ Founded in 1956, a quality supplier assessed, certified and inspected by SGS Group
■ CE ASME DOSH EAC GOST TUV BUV ISO high standard boiler certification
■ More than 17 years of export experience, gold medal supplier, guaranteed payment and delivery.
■ Integrating research&development production and sales
■ Support video/VR or third party factory inspection
■ Best seller in 108 countries, more than 100,000 customers

Our Service

Pre-sale Service:

1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Competitive Price一As one boiler factory, we have lowest price and high quality, shipping partners etc.

After-sale Service:

1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.

Quality Assurance

Steel element test→Steel rust cleaningWelding electrodes drying processAutomatic welding, argon arc welding, expansion welding etc. methodsNDT(Nondestructive Testing) including X-ray Test, Ultrasonic Test, Magnetic particle TestHydraulic pressure test.

FAQ of Skid-mounted Boiler

1. How much fuel does the boiler use per hour?

Take 700KW thermal oil boiler as an example, the gas consumption per hour is 73m³, light diesel oil is 64kg.

2. Is there any other installation work?

No. User just need to connect the boiler with fuel source, electricity andoil pipe, then it can work.

3. Our boiler room width is limited, how?

We have vertical thermal oil boiler, smaller footprint than horizontal boiler.

4. Do you have agent here?

We have agents and partners in some countries, will check list for you.

Parameter

Oil gas thermal oil boiler
Model Rated thermal power
(KW)
Heating power
(kcal)
Rated working pressure
(Mpa)
Thermal oil outlet temperature
(℃)
Fuel consumption
Light diesel oil(kg/h) Natural gas(Nm3/h)
YY(Q)W-350Y(Q) 350 300000 0.8/1.0 ≤350 30.5 36.1
YY(Q)W-700Y(Q) 700 600000 0.8/1.0 61.3 73.6
YY(Q)W-1000Y(Q) 1000 850000 0.8/1.0 92 101.5
YY(Q)W-1400Y(Q) 1400 1200000 0.8/1.0 122.6 147.1
YY(Q)W-3000Y(Q) 3000 2500000 0.8/1.0 249.2 296.4
YY(Q)W-3500Y(Q) 3500 3000000 0.8/1.0 305.6 366.8
YY(Q)W-4200Y(Q) 4700 4000000 0.8/1.0 367.5 436.6
YY(Q)W-5600Y(Q) 5600 4800000 0.8/1.0 489.6 586.8
YY(Q)W-7000Y(Q) 7000 60000000 0.8/1.0 612.3 726.9
Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design.
