Steam Generator | Electric Boiler | Steam Generation Boiler
LDR electric steam generator adopts integrated compact structure, fully automatic operation, no annual inspection required. Using electricity as fuel, no need to arrange fuel, no chimney, thermal efficiency above 98%, and can meet the most stringent emission and fire protection standards.

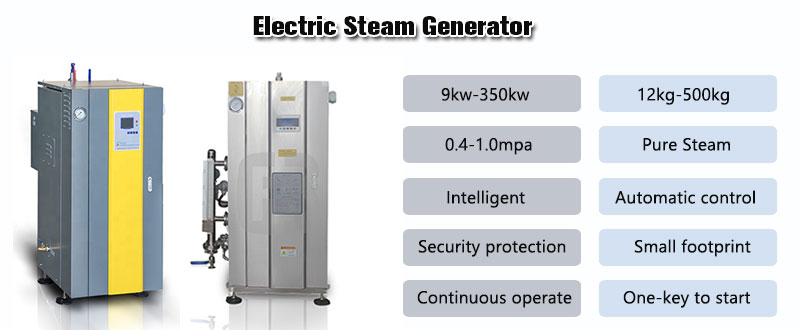

| Output: | Saturated Steam |

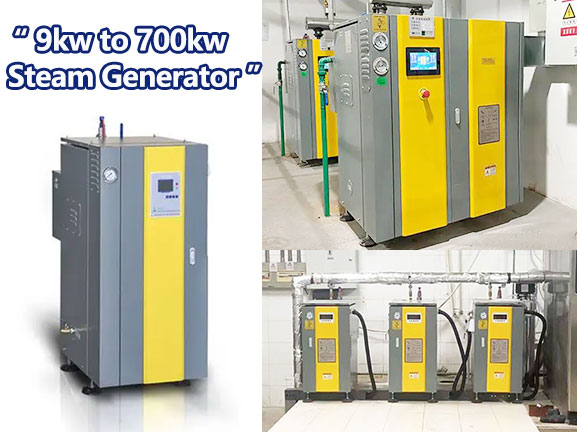

| Capacity: | 9kw-1400kw 13kg-2000kg |
| Horsepower: | 6-150hp |
| Working Pressure: | 0-1.0Mpa, 1-10Bar |
| Applied Industries: | Food, Beverage, Milk, Dairy, Washing ironing, Pharm, Packaging, Labeling, Chemical, Coating, Concrete Curing, Sauna, Heat exchange etc |
Introduction

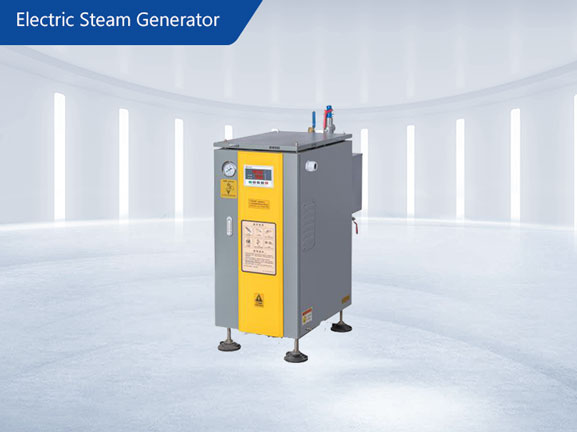

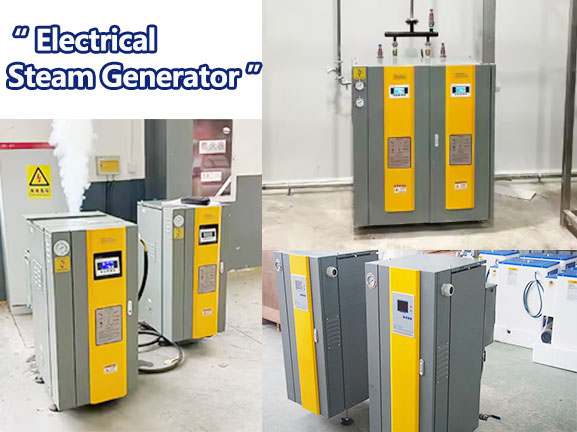

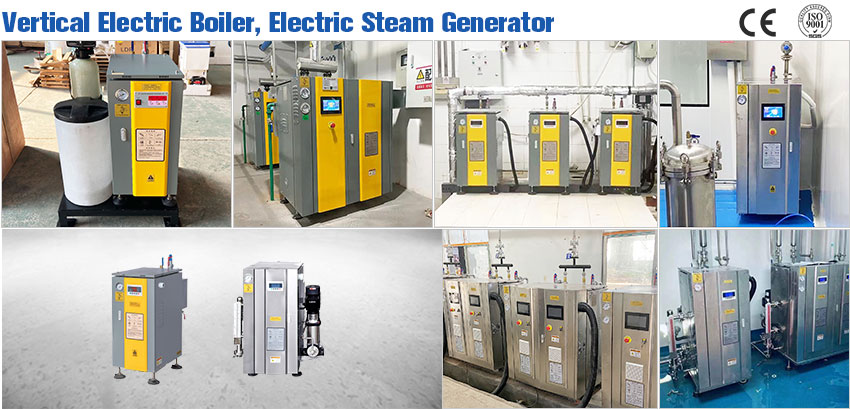

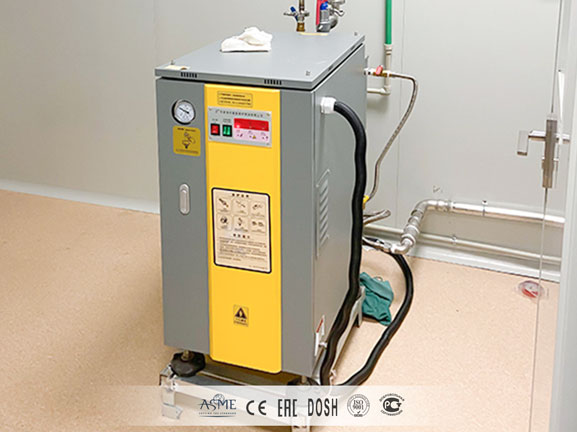

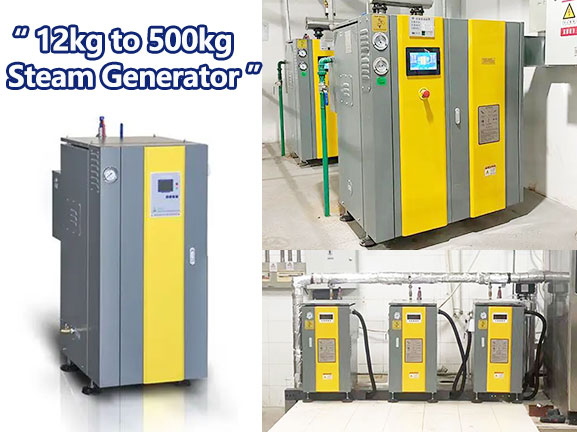

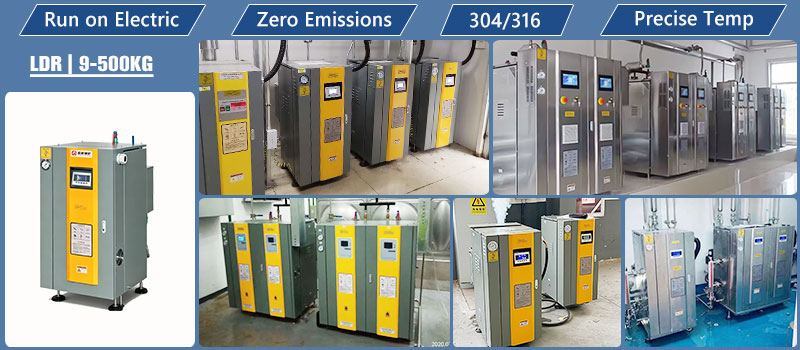

LDR electric steam generator, also known as small electric boiler, vertical electric boiler. It is a high-efficiency, environmentally friendly, and pollution-free thermal boiler equipment.
Full automatic control, automatic water refill, heating and alarm. One‑button start. Provide stable, clean, and precisely controlled steam for various industrial and commercial applications.
Our company is Yuanda Boiler (Grade A boiler manufacturer), established in 1956, boasts over 70 years mature technology and 15 years of export experience. We offer comprehensive services from design, manufacturing, to installation, training, and turnkey projects. Our own engineering and service teams save your time and costs.

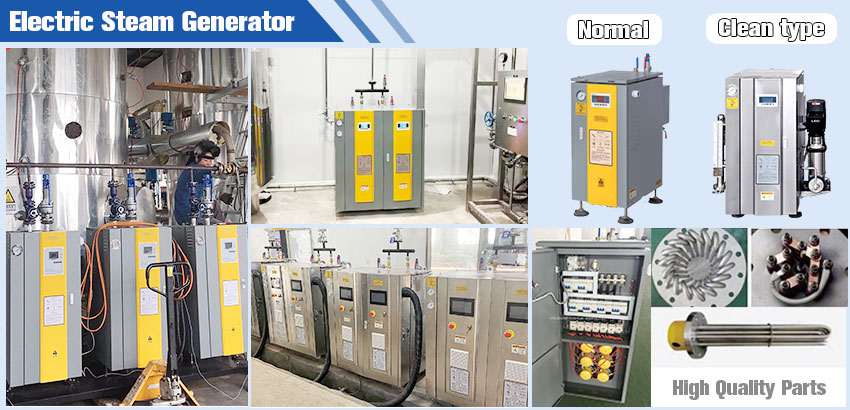

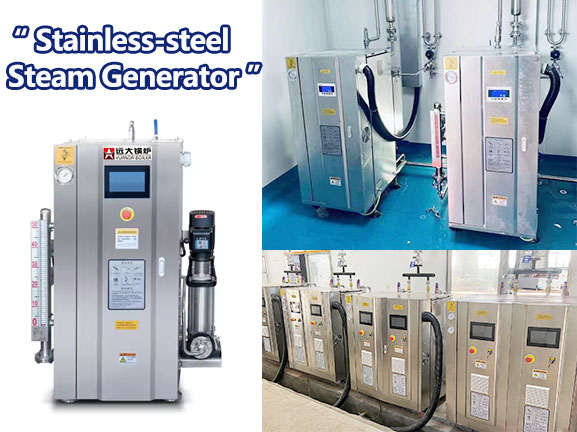

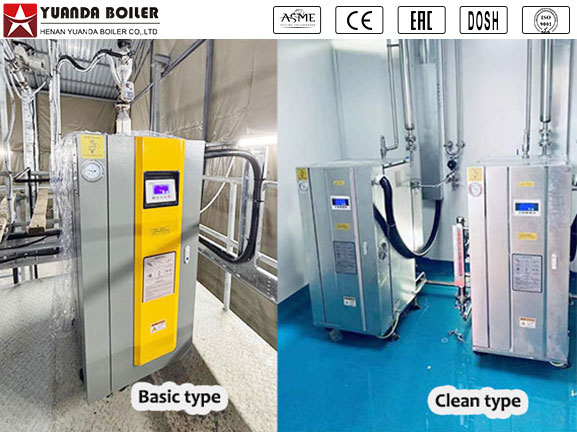

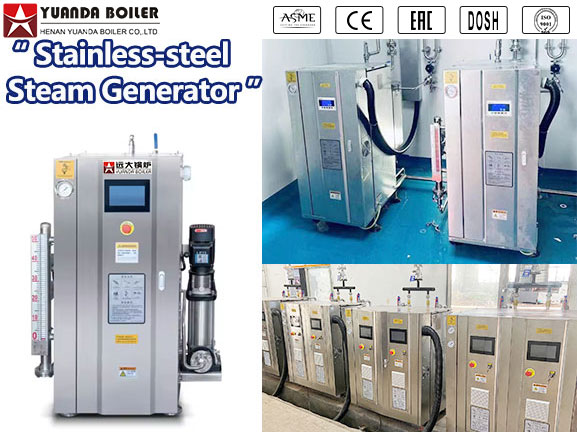

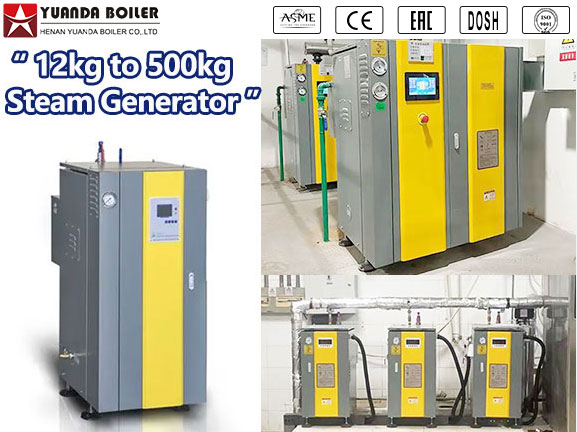

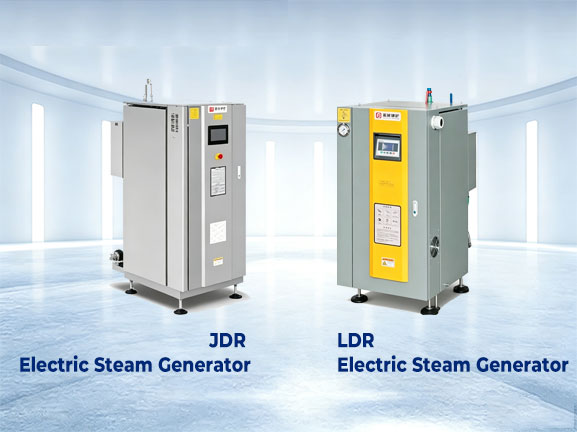

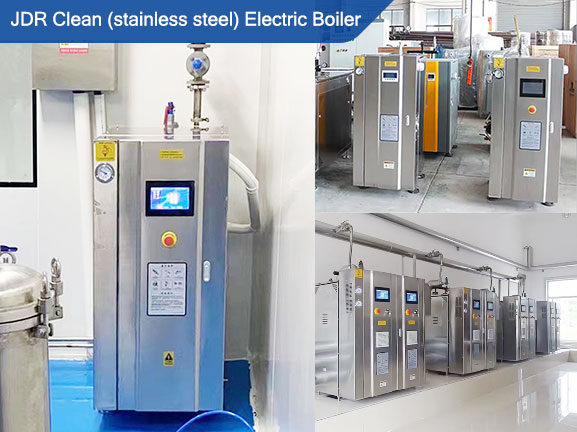

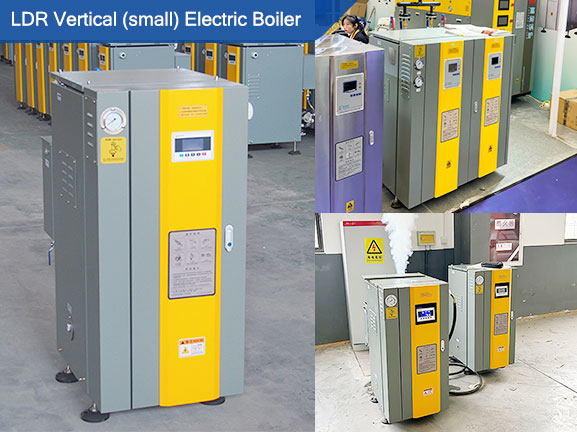

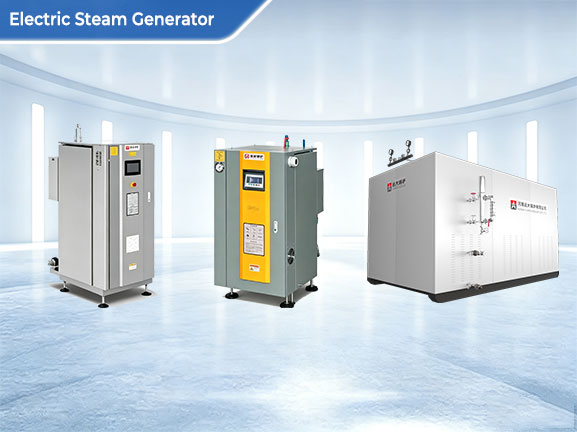

Our electric steam generator include: LDR vertical steam generator, JDR stainless steel electric steam generator.

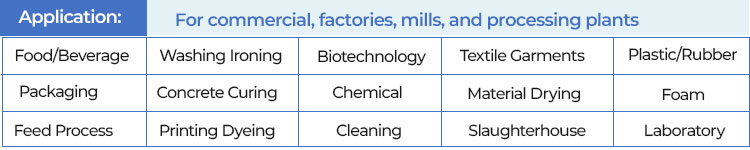

Widely used for food industry, washing and ironing, packaging industry, biological equipment industry, chemical industry, industrial cleaning, plastic/rubber processing, concrete curing, feed processing, slaughterhouses, material drying, foam industry, printing and dyeing industry, textile industry, laboratory, etc.
1. Precise Temperature Control
The electric heating elements respond instantly to temperature changes. This keeps the production line at the exact temperature.
2. High Thermal Efficiency, Clean Steam

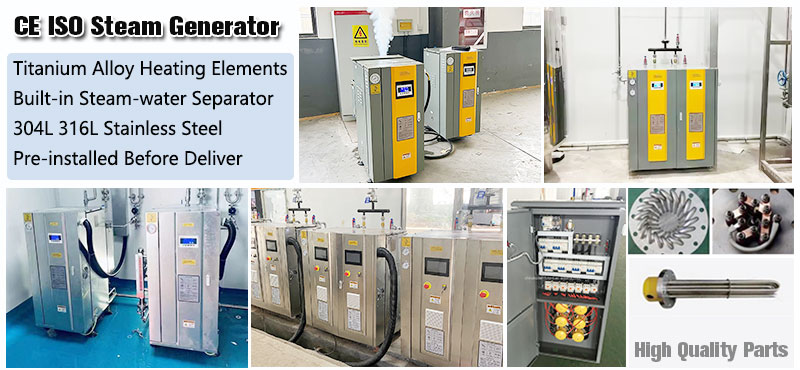

Utilizes Incoloy 800 and SUS316L heating elements, achieving a thermal efficiency of up to 99%. Electric steam generators produce pure steam without smoke, soot, or combustion gases.
3. Zero Emissions
No chimney, no smoke, no pollution. Electric steam generators meet strict environmental standards.
4. Compact and Easy to Install
The unit takes small footprint than traditional boilers. Compact structure, saving space; easy to install, move, and operate.
5. Simple Operation

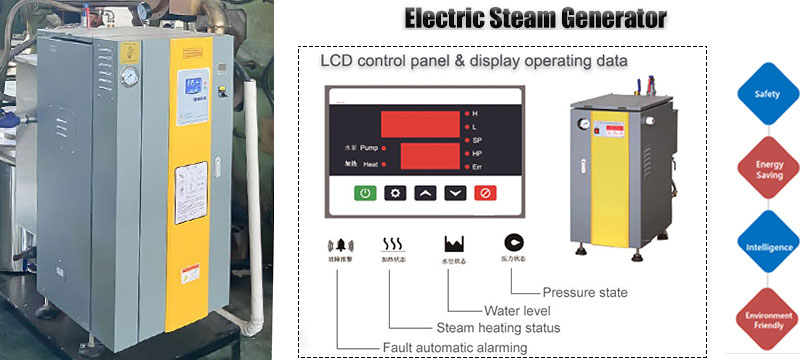

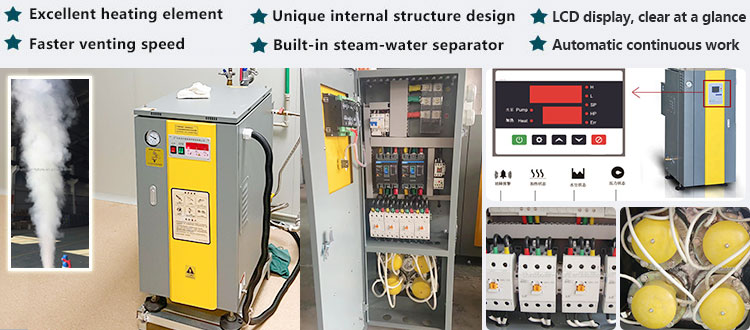

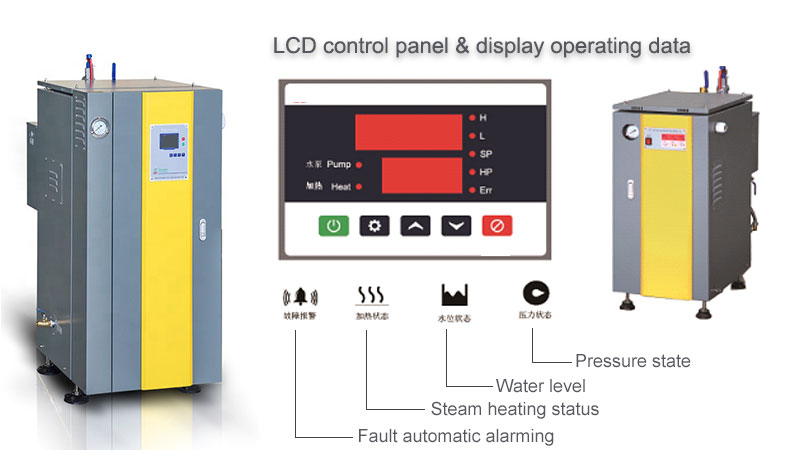

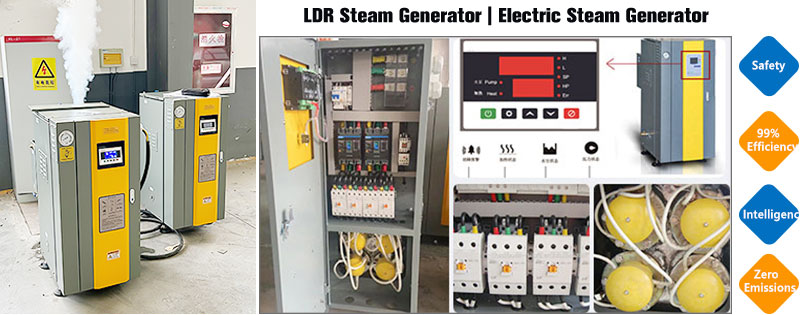

Fully automatic digital control with touch screen, LCD display. No need for specialized boiler operators.
6. Rapid Steam Generation
Provides continuous dry steam within 3-5 minutes of startup, achieving efficient heating.
7. Complies with EU Safety Standards
Equipped with overpressure protection, dry-burn protection, and automatic power-off safety devices.

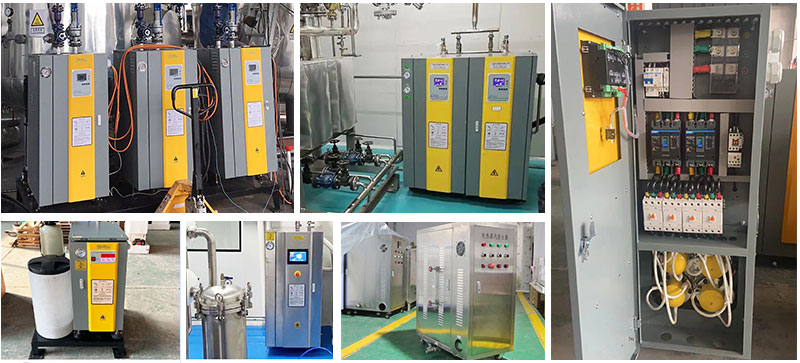

8. Complete system with water softener, tank, pump etc.

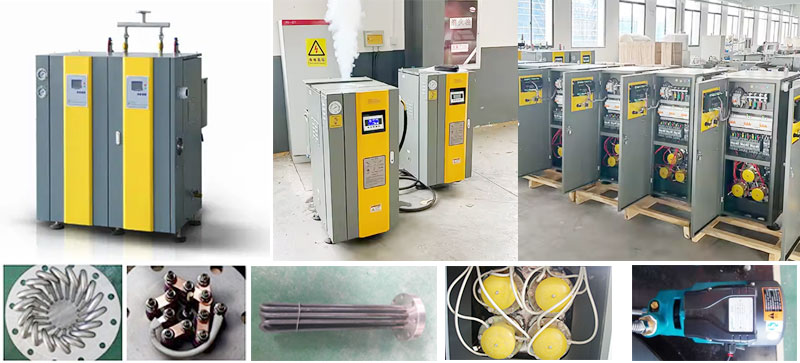

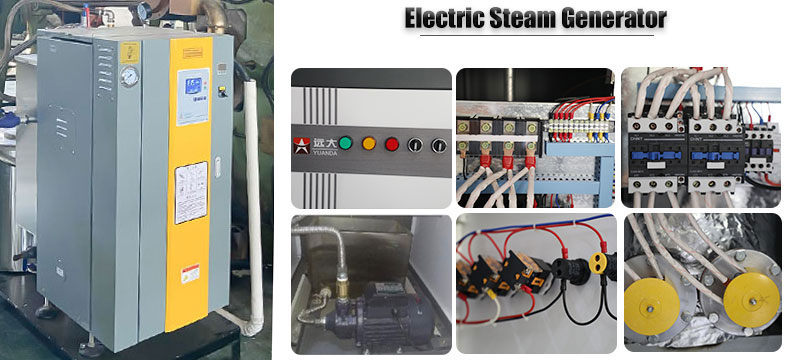

9. Independent flange‑connected heating elements – easy replacement, long life. Each heating rod can be controlled separately for energy saving.
10. 12-Month Warranty: Free replacement of major components for manufacturing defects, starting from the bill of lading date.
Parameter
| Model | Rated capacity | Input power | Rated pressure | Steam temperature | Thermal efficiency | Dimension | Weight |
| Unit | kg/h | kw | Mpa | ºC | % | mm | kg |
| LDR0.013-0.7 | 13 | 9 | 0.7 | 171 | 99.9 | 650×390×750 | 70 |
| LDR0.017-0.7 | 17 | 12 | 0.7 | 171 | 99.9 | 650×390×750 | 75 |

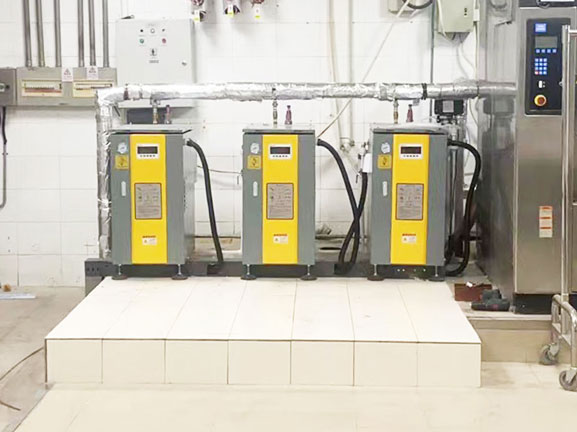

| LDR0.025-0.7 | 25 | 18 | 0.7 | 171 | 99.9 | 750×450×1050 | 90 |
| LDR0.035-0.7 | 35 | 24 | 0.7 | 171 | 99.9 | 750×520×1050 | 95 |

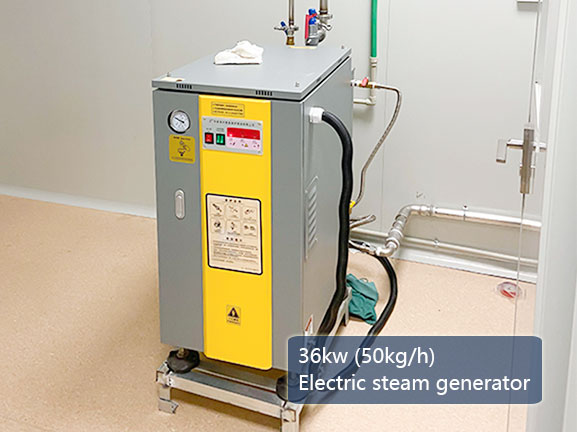

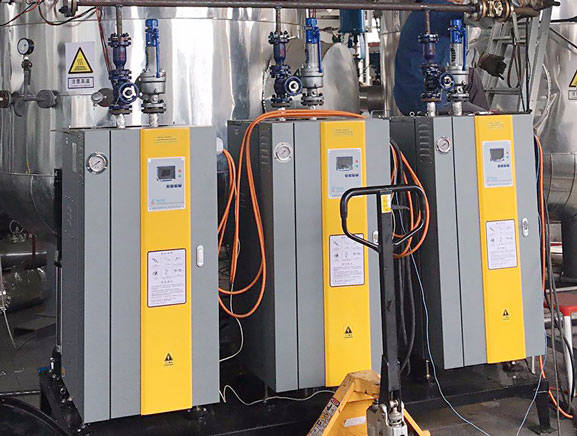

| LDR0.05-0.7 | 50 | 36 | 0.7 | 171 | 99.9 | 750×580×1150 | 101 |
| LDR0.065-0.7 | 65 | 48 | 0.7 | 171 | 99.9 | 800×580× 1200 | 115 |
| LDR0.075-0.7 | 75 | 54 | 0.7 | 171 | 99.9 | 800×580× 1300 | 140 |
| LDR0.085-0.7 | 85 | 60 | 0.7 | 171 | 99.9 | 800×600× 1300 | 145 |
| LDR0.1-0.7 | 100 | 72 | 0.7 | 171 | 99.9 | 860×650× 1390 | 172 |
| LDR0.11-0.7 | 110 | 80 | 0.7 | 171 | 99.9 | 860×650× 1390 | 185 |

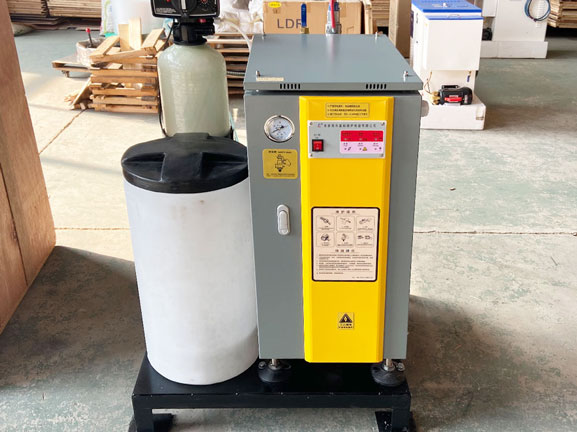

| LDR0.125-0.7 | 125 | 90 | 0.7 | 171 | 99.9 | 860×650× 1430 | 190 |
| LDR0.15-0.8 | 150 | 108 | 0.8 | 175 | 99.9 | 920×760×1600 | 245 |
| LDR0.18-0.8 | 180 | 126 | 0.8 | 175 | 99.9 | 920×760× 1600 | 260 |
| LDR0.2-0.8 | 200 | 144 | 0.8 | 175 | 99.9 | 1130×750× 1780 | 450 |
| LDR0.25-0.8 | 250 | 180 | 0.8 | 175 | 99.9 | 950×900× 1830 | 650 |

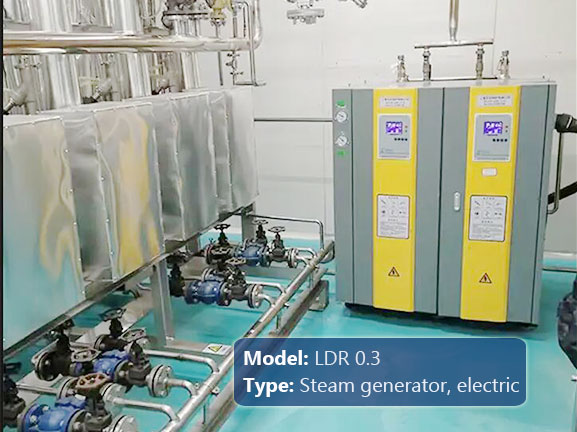

| LDR0.3-0.8 | 300 | 216 | 0.8 | 175 | 99.9 | 1320×1040× 1920 | 760 |

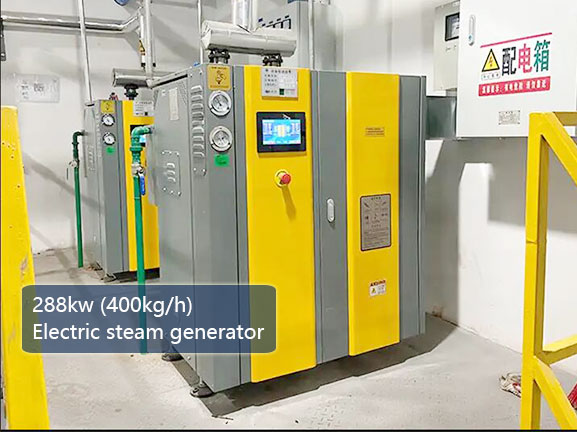

| LDR0.4-0.8 | 400 | 288 | 0.8 | 175 | 99.9 | 1380×1040× 2070 | 890 |
| LDR0.5-0.8 | 500 | 360 | 0.8 | 175 | 99.9 | 1020×890× 2350 | 1020 |

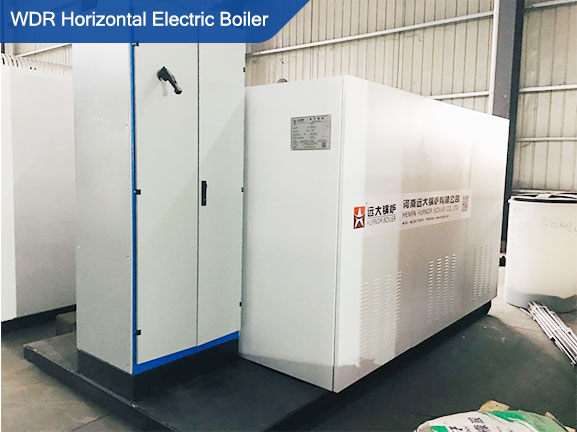

| WDR0.5-1.0 | 500 | 360 | 1 | 184 | 98 | 1755*1180*1510 | 1400 |
| WDR1.0-1.0 | 1000 | 700 | 1 | 184 | 98 | 2530*1380*1480 | 1730 |
| WDR2-1.0 | 2000 | 1400 | 1 | 184 | 98 | 2530*2000*2080 | 2730 |
| WDR3-1.25 | 3000 | 2100 | 1.25 | 194 | 98 | 2630*2210*2160 | 3420 |
| WDR4-1.25 | 4000 | 2800 | 1.25 | 194 | 98 | 3680*2360*2380 | 4320 |
| WDR5-1.25 | 5000 | 3500 | 1.25 | 194 | 98 | 3980*2580*2560 | 5130 |

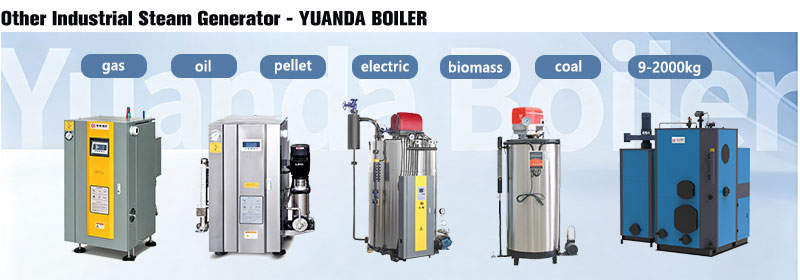

Related Steam Generators
In addition to LSS steam generators, we also offer fire-tube steam generators, biomass pellet steam generators, electric steam generators, clean pure steam generators, and coal-fired steam generators. Please feel free to contact us at any time.
About Our Company
Yuanda's philosophy: "Quality First, Integrity Wins the World, and Common Development with Customers"

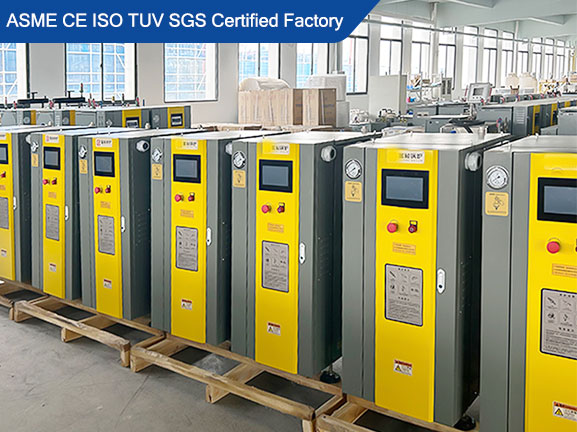

■ Founded in 1956, a premium supplier assessed, certified, and inspected by SGS Group. Leading industrial boiler manufacturer in China.■ Products sold to over 130 countries/regions, covering food, beverage, textiles, paper, wood industries. Serving over 100,000 customers.
Our Service
1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler system with accessories and installation materials for your company.
4. Transportation一We have shipping partners and forwarder for lowest price and safe.
After-sale Service:
1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
If you require any boiler information or price, please feel free to let us know—no obligation.

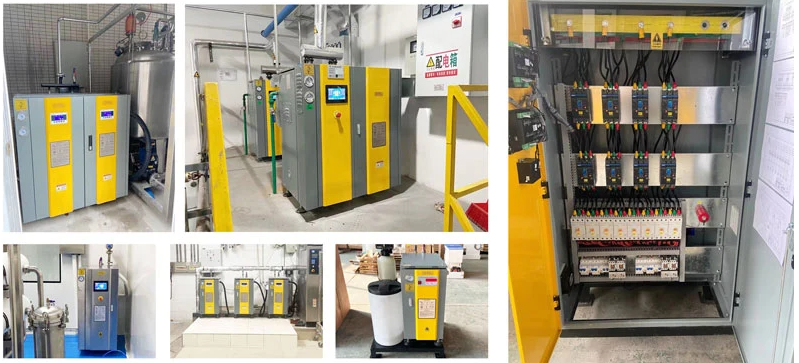

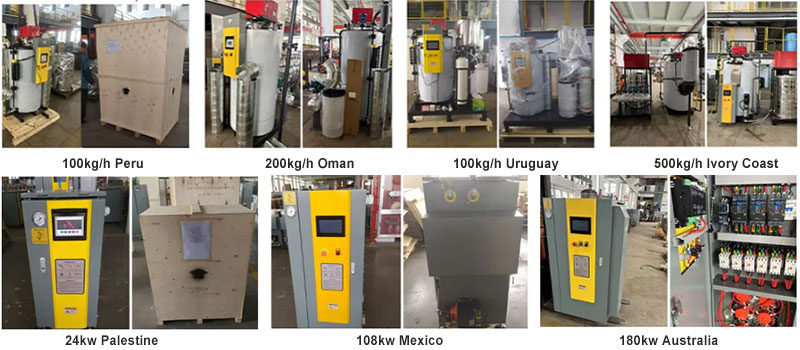

Relate Cases
