Biomass/Wood Pellet Boiler

biomass steam generator/boiler | biomass heating boiler

Steam generator machine using biomass wood pellets, or woodchips as burning fuel. Energy efficient, high degree of automation. The steam generator can be used to produce different pressure of high temperature steam, to meet factory production.

Model: LSS
Capacity Range: 50 kg to 10,000 kg, 40 kw to 7,000 kw
Horsepower 10-1500Hp
Style: compact or portable
Applied Industry: washing&ironing, food, packaging, concrete curing, heating, hotels, bathing, etc

Introduction

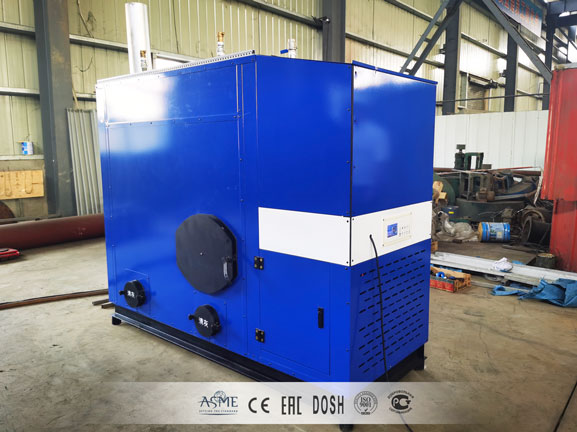

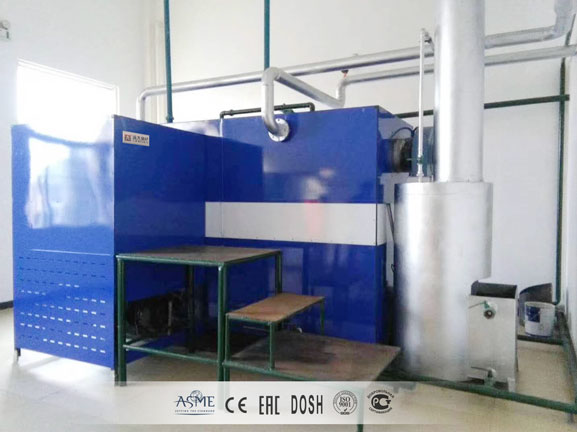

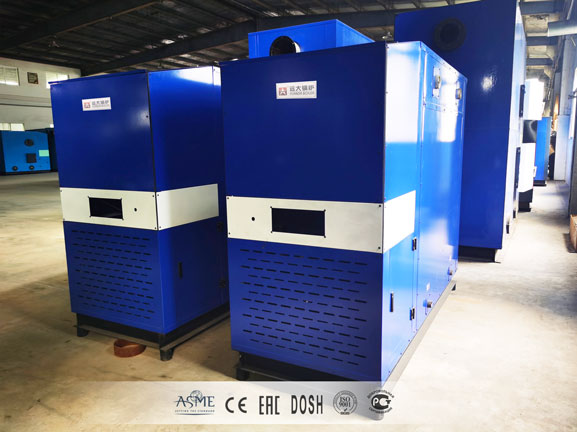

CWHS Biomass Pellet Boiler

CWHS series biomass pellet boiler is a intergratedboiler that produces steam or hot water for user. It's an ideal heating equipment in many fields, like food, beverage, brewery, paper, pharm, garment, laundry, hotel, concrete, biological fermentation, chemical manufacturing etc...

Capacity from 50kg(41KW) to 8000kg(5600KW). Intelligence, fast heat up, low noise and no dust. Simple structure to use it.


-- Integrated structure, only need connect water, elelctric, steam pipe, easy to install and maintain.
-- A new generation of biomass pellet combustion method
-- Built with famous high-quality materials&electrical components, to ensure long-lasting durability.

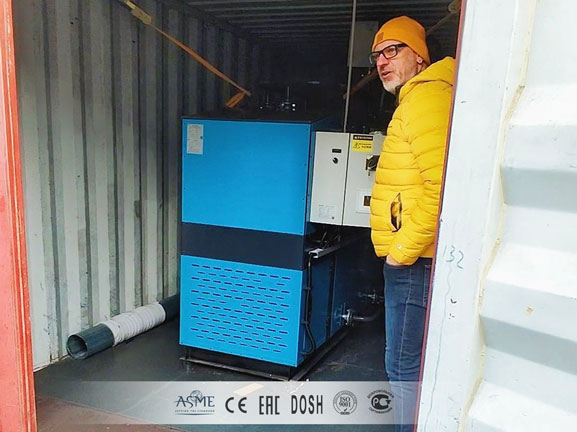

-- Can be made into container type, easy to move
-- Well-known brand since 1956, backed by a strong warranty and after-sales support.

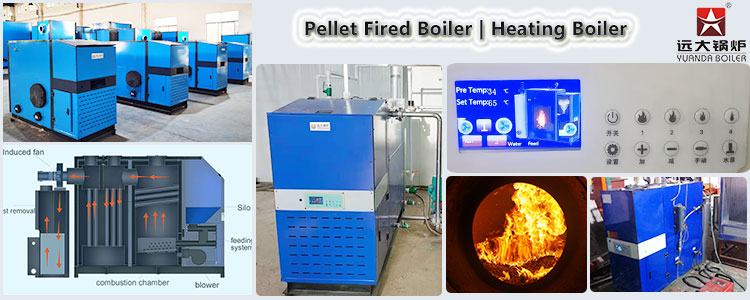

Features CWHS Biomass Boiler

①Vertical fire tube structure,high efficiency, low energy consumption.
②The secondary power device eliminates the hidden danger of backflushing of biomass boilers
③Using gasification combustion method, the combustion is complete and the thermal efficiency is >90%. Built-in waste heat recovery device efficiently utilizes flue gas and reduces heat loss.
④Integrated design of dust removal and waste heat, smoke-free and dust-free, more energy-saving and environmentally friendly.
⑤It adopts microcomputer one-button operation, automatic feeding, automatic ignition, free temperature setting, one-button start and stop and fault alarm functions.
⑥Multiple functions of steam production, hot water production, central heating etc

Related DZ Biomass Boiler

DZ series biomass boiler meaning horizontal three-pass flue gas boiler, wetback design, water-fire tube mixed, thread smoke tube in the drum. Mainly composed by boiler body, water treatment, flue gas system and control system.

DZL biomass boiler

Related SZL Biomass Boiler

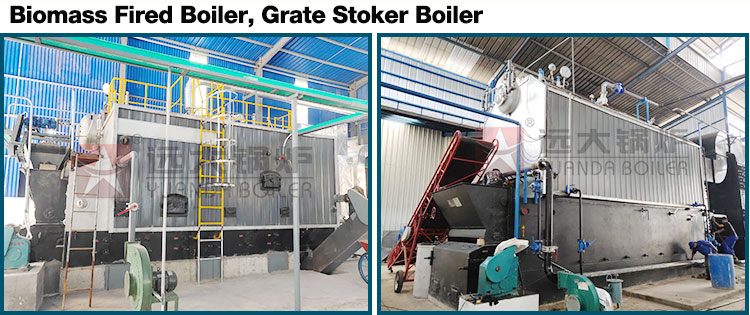

szl biomass boiler is a water tube structure boiler, longitudinally double drum boiler, combustione device is chain grate or reciprocating grate(step grate).

SZL biomass water tube boiler

About Yuanda Boiler

■ Established in 1956, as a stated owned enterprise.

■ Over 16 years export experiences, payment & shipping protection
■ CE ASME DOSH EAC GOST ISO high standard boiler certified
■ Production of various types boilers, provide pre-sale boiler proposal for customer select
■ Directly factory low price & quality protection.
■ Completed technology & after-sale service team.
■ Support Video/VR inspection. Abroad installation and commissing service etc
■ Technical discussion, drawing about boiler solution for your company use

Industrial Boiler Manufacturer

Service

WELCOME Contact Us for Boiler Information

Just please confirm 4 points as bellow, we will offer the appropriate boiler model for you, with price, specifications, running pictures.

1. How many ton/kg/kw/hp/kcal capacity you need?

2. What steam pressure or working temperature you need?

3. What fuel you plan to use?

4. What factory will you use the steam generator?

Parameter

biomass steam generator
Model CWHS-0.12-0.6-s CWHS-0.15-0.6-s CWHS-0.2-0.7-s CWHS-0.3-0.7-s CWHS-0.5-0.7-s CWHS-0.75-0.7-s CWHS-1.0-0.7-s
Rated steam capacity(Kg/h) 120 150 200 300 500 750 1000
Rated working pressure(Mpa) 0.6 0.6 0.6 0.7 0.7 0.7 0.7
Induced fan powerW 250 370 550 550 750 2200 4000
Fd fan powerW 85 120 120 330 500 500 500×2
Feeding motor power(W) 250 250 250 250 250 250 250
Pump power(w) 750 750 750 1100 1500 2200 2200
Power consumption(KW/h) 1.34 1.49 1.67 2.23 3 5.15 7.45
Thermal efficiency(%) 93 93 93 93 93 91 91
Fuel consumption(Kg/h) 17 22 29 43 58 108 158
Safety valve(Mpa) 0.58 0.58 0.58 0.68 0.68 0.68 0.68
Overall dimensions(mm) 1700×650×1550 1700×700×1650 1850×750×1700 2000×1320×1800 2470×1480×1940 1860×1350×2200 2100×1650×2750
Dust collector(mm) Φ520×1350 Φ551455 Φ550×1455 Built in dedusting Built in dedusting Φ755×2000 Φ755×2000
Shipping weightkg 728 880 980 1480 2000 2500 2900

Recommend Boiler

Electric Steam Generator

Powered by electricity, stainless steel steam generator, clean steam for factory

Gas Oil Steam Generator

Powered by gas or diesel fuel burner, vertical wet back boiler, three pass shell tube boiler.

Vertical Biomass Boiler

Running by wood, coal, or biomass fuel. Vertical manual-feeding boiler, wide fuel adaptability
