Firewood boiler | Moveable grate boiler | Boiler for garment/textile

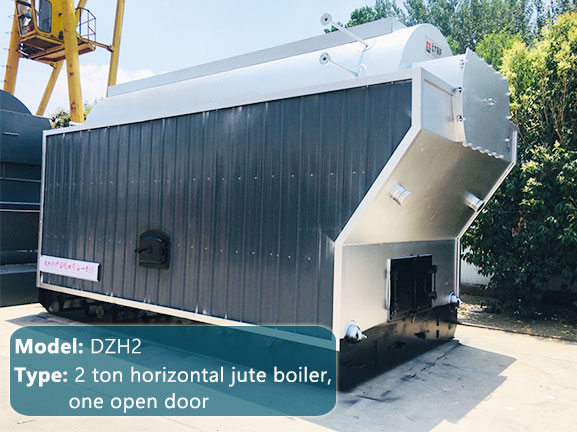

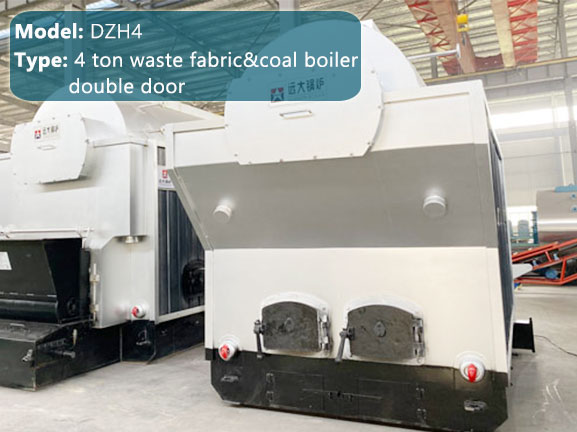

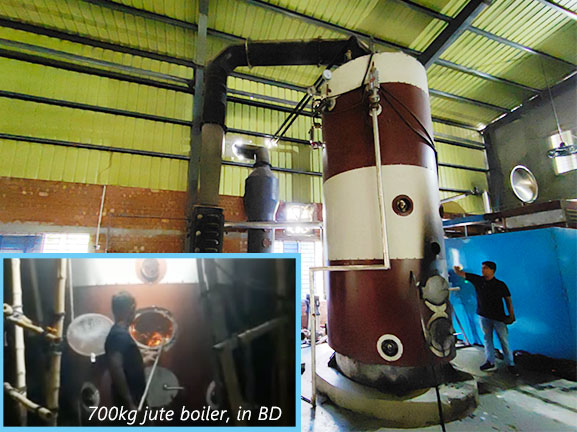

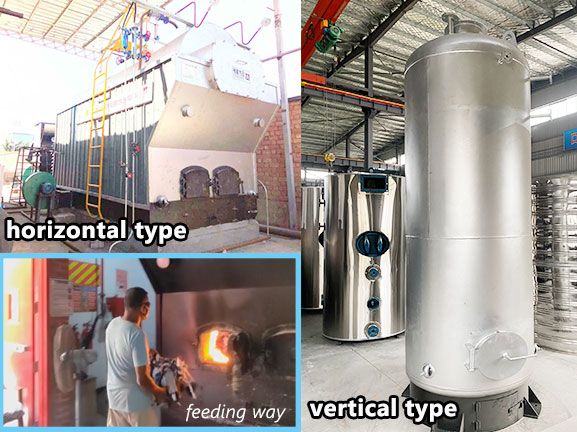

Waste fabric boiler, jute fired boiler, solid fuel fired boiler. DZH horizontal and LSC vertical jute waste fabric steam boiler capacity from 0.1ton/100kg to 8ton/8000kg. Popular used for garment factory, textile industry and clothes manufacturing.
| Output: | steam, hot water |
| Heating Capacity: | 100-8,000kg/hr 120-5600kw/h |
| Horsepower: | 10hp to 600hp |
| Fuel: | waste fabric, jute, solid fuel, waste fuel, wood, coal, plastic, paper... |
| Applied Industries: | food, beverage, feed mill, garment, packaged, chemical, pharm, etc |
It adopts water-fire tube, 3-pass wet back sturcture, and arched tube plate, to strengthen boiler efficiency;
Features:
1. Use traveling/fixed grate as combustion device, high fuel adaptability;
2. Safety assured by the automatic interlock control system(water level/pressure/flue gas temprature);
3. Two-wing flue gas at side, secondary air ventilation system in boiler;
4. Simple structure, low cost, less mechnical failure;
5. Easy to operate and maintain;

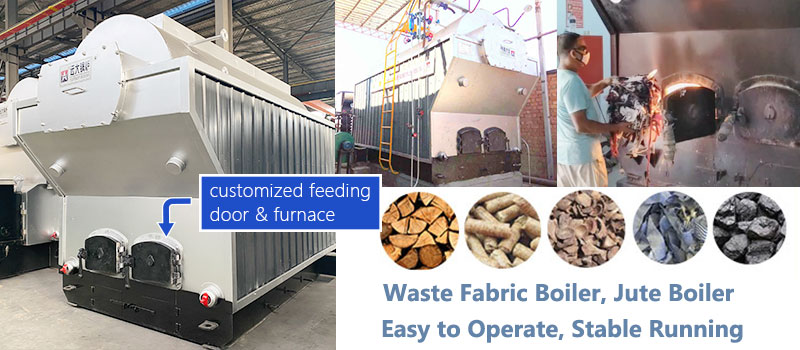

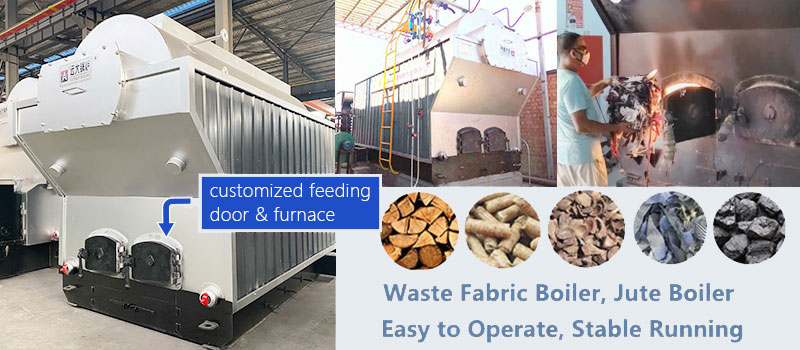

6. Customized feeding door, furnace and flue gas treatment

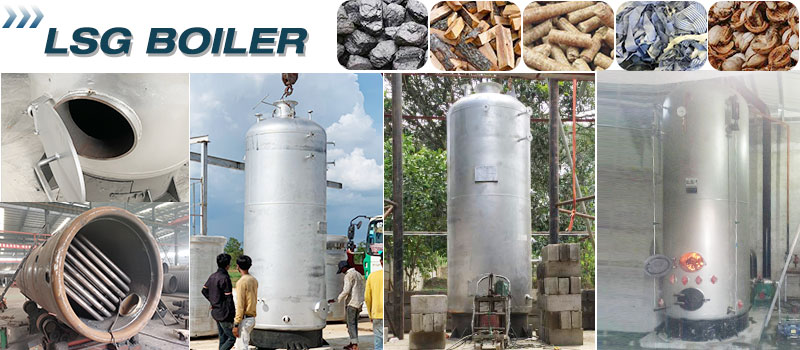

1. Vertical layout, occupy small area;
2. Double-deck fire grate combustion chamber design;
3. Simple structure, easy to use and installation;
4. Heat up quickly, produces steam fast;
Pre-sale Service:
1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Transportation一We have shipping partners and forwarder for lowest price and safe.
After-sale Service:
1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
Quality Assurance
(1) Strength calculation report with applied materials information;
(2) 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3) 100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4) Hydrostatic test: ensure the standard working pressure and safety;
(5) Third-party inspection report
(6) Passed ASME CE ISO DOSH EAC GOST boiler level certificate.
Our Service
Comprehensive Boiler Solutions – From Planning to Lifetime Support
Pre-Sales Support:Expert Design Guidance: Help you select the optimal boiler model tailored to your industry needs.
Detailed Technical Documentation: Provide certificates, CAD drawings, consumption analysis, and boiler room planning.
Customized Solutions: Deliver complete system designs including installation material lists.
Competitive Pricing: Factory-direct rates with uncompromised quality.
After-Sales Assurance:Genuine Spare Parts: Original components with reliable supply.
Global Installation & Commissioning: Overseas engineer dispatch available.
On-Site Training: Ensure safe and efficient operation.
24/7 Online Support: Rapid response for any technical needs.
Warranty & Lifelong Care: One-year free maintenance and lifetime service support.
Parameter
| Model | Rated steam output | Rated steam pressure | Rated steam temperature | Feed water temperature | Thermal efficiency(%) | |
| (Ton/hr) | kg/hr | (Mpa) | (℃) | (℃) | ||
| LSG0.1 | 0.1 | 100 | 0.4/0.7(<10bar) | 130～174 | 20/105 | ＞81 |
| LSG0.2 | 0.2 | 200 | 0.4/0.7(<10bar) | 130～174 | 20/105 | ＞81 |
| LSG0.3 | 0.3 | 300 | 0.4/0.7(<10bar) | 130～174 | 20/105 | ＞81 |
| LSG0.5 | 0.5 | 500 | 0.4/0.7(<10bar) | 130～174 | 20/105 | ＞81 |
| LSG0.7 | 0.7 | 700 | 0.4/0.7(<10bar) | 130～174 | 20/105 | ＞81 |
| LSG1 | 1 | 1000 | 0.4/0.7(<10bar) | 130～174 | 20/105 | ＞81 |
| LSG2 | 2 | 2000 | 0.4/0.7/1.0 | 130～195 | 20/105 | ＞81 |
| DZH 1 | 1 | 1000 | 1.0/1.25/1.6/2.5 (<25bar) | 130～350 | 20/105 | ＞84 |
| DZH 2 | 2 | 2000 | 1.0/1.25/1.6/2.5 (<25bar) | 130～350 | 20/105 | ＞84 |
| DZH 4 | 4 | 4000 | 1.0/1.25/1.6/2.5 (<25bar) | 130～350 | 20/105 | ＞84 |
| DZH 6 | 6 | 6000 | 1.0/1.25/1.6/2.5 (<25bar) | 130～350 | 20/105 | ＞84 |
| DZH 8 | 8 | 8000 | 1.0/1.25/1.6/2.5 (<25bar) | 130～350 | 20/105 | ＞84 |
