Medical-Grade Steam Boiler Solutions for Hospitals| Hospital Esterilizador Caldera
Yuanda Boiler manufacturing hospital sterilizer steam boiler/steam generator, medical-grade steam generation. Reliable sterilization steam supply for autoclaves, 3-pass fire tube design with 98% thermal efficiency (Gas/Diesel options)Fully automated operation with PLC control & remote monitoring, Compliant with EN 12953 & ASME standards for hospital safety.
| Output: | steam, hot water |
| Capacity Range: | 0.12mw-14mw, 120 to 14,000kw |
| Horsepower | 20hp to 2500hp |
| Layout | horizontal, vertical |
| Fuel type: | gas, lpg, diesel, hfo, electric etc |
Please enter your email address below
Introduction
✅ Reliable sterilization steam supply for autoclaves, CSSD & OT equipment
✅ 3-pass fire tube design with 98% thermal efficiency (Gas/Diesel options)
✅ Fully automated operation with PLC control & remote monitoring
✅ Compliant with EN 12953 & ASME standards for hospital safety
1. Capacity & Fuel Flexibility:
Steam capacity: 100 kg/h (7HP) to 20000 kg/h (1200HP)
Applicable fuel: Gas LP, Natural Gas, Propane, Diesel, Hfo, Dual-Fuel (Gas + Diesel)
2. High Efficiency & Energy Savings
Thermal Efficiency ≥ 98% (Condensing heat recovery optional)
With Economizer, Conderser, Deaerator etc
Low NOx & CO Emissions (Compliant with environmental regulations)
Intelligent Combustion Control (Auto-adjusts fuel-air ratio for optimal performance)
3. Reliability & Safety
3-Pass Fire Tube Wet Back Design (Maximizes heat transfer, minimizes fuel consumption)
Fully Automatic Operation (PLC control with remote monitoring)
Multiple Safety Protections (Low water cutoff, overpressure, flame failure, etc.)
4. Compact & Easy Maintenance
Horizontal Design (Saves space, ideal for hospital boiler rooms)
Quick Installation (Pre-assembled components reduce downtime)
Easy Access for Servicing (Removable front/rear smoke chamber)
5. Durable & Long Lifetime:
ASME/CE Certified – High quality, compliant with international standards
Europe Original Import Burner.
6. Plug&Play:

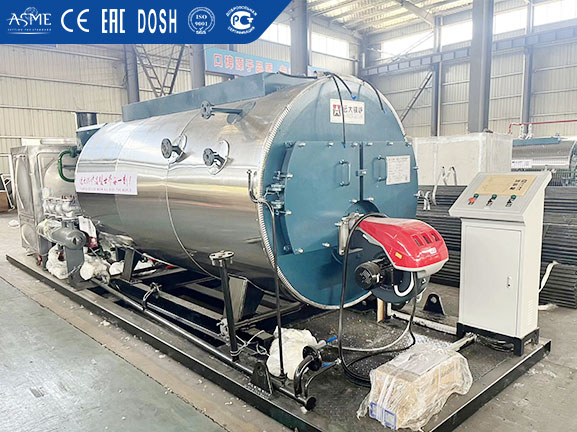

Skid Mounted Boiler System Available – Pre-installed, self-contained boiler system mounted on a steel base (skid) for easy transport, free of installation.
✔ Continuous Steam Supply – Ensures uninterrupted medical operations.
✔ Dual-Fuel Flexibility – Can switch between gas and oil for fuel security.
✔ Low Operating Costs – High efficiency reduces energy expenses.
✔ Compliance with Standards – Meets ASME, EN, and Chilean safety regulations.
■ Founded in 1956, quality supplier inspected by SGS Group
■ CE ISO quality certified
■ More than 17 years of export experience, gold medal supplier, guaranteed payment and delivery
■ Integrating research&development production and sales
■ Support video/VR or third party factory inspection
■ Exported to 132 countries, more than 100,000 customers
Why believe Yuanda boiler quality?
(1) Strength calculation report with applied materials information;
(2) 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3) 100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4) Hydrostatic test: ensure the standard working pressure and safety;
(5) Third-party inspection report
(6) Passed ASME CE ISO DOSH EAC GOST boiler level certificate.
Service
Provide a full range of right boiler and original spare parts, quality certificates, factory-inspect, fuel consumption calculation based on your needs, etc.
65 years experience, provide pre-sale boiler proposal & cost anslysis for customer select; Technical discussion, customized boiler & drawing for your company use
Directly factory low price&quality protection; With CE ASME DOSH EAC GOST ISO high standard boiler certified; Exported to 108 countries.
Two years warranty; 24 hours online, quick respond; Completed technology & after-sale service team; Overseas engineers installation and training service is available.
According to the customer production requirements, provide professional boiler solutions, cost analysis, investment budget, boiler drawing&installation and commissioning service
Parameter
| Model | Horsepower | Rated steam output | Rated pressure | Rated temperature | Feed water temperature | Fuel consumption | |
| (hp) | (Ton/hr) | (Mpa) | (℃) | (℃) | Light diesel oil(kg/h) | Natural gas(Nm3/h) | |
| LSS0.1 | 7hp | 0.1 | 0.4/0.7 mpa | 130～171 | 20/105 | 6.7 | 7.3 |
| LSS0.2 | 15hp | 0.2 | 130～171 | 20/105 | 12.8 | 17 | |
| LSS0.3 | 25hp | 0.3 | 130～171 | 20/105 | 19.2 | 25.5 | |
| LHS0.5/LSS0.5/WNS0.5 | 35hp | 0.5 | 130～171 | 20/105 | 32 | 42.5 | |
| LHS0.7/WNS0.7 | 50hp | 0.7 | 130～171 | 20/105 | 49.5 | 51 | |
| LHS1/WNS1 | 65hp | 1.0 | 0.4/0.7/1.0/1.25/1.6/2.5/3.0 mpa | 130～185 | 20/105 | 70 | 80 |
| LHS1.5/WNS1.5 | 100hp | 1.5 | 130～185 | 20/105 | 108.7 | 115.4 | |
| LHS2/WNS2 | 125hp | 2 | 130～185 | 20/105 | 135.2 | 150.4 | |
| WNS3 | 200hp | 3 | 130～226 | 20/105 | 192.9 | 212.1 | |
| WNS4 | 250hp | 4 | 130～226 | 20/105 | 258.2 | 283.4 | |
| WNS5 | 300hp | 5 | 130～226 | 20/105 | 323.5 | 354.7 | |
| WNS6 | 350hp | 6 | 130～226 | 20/105 | 388.6 | 424.2 | |
| WNS8 | 500hp | 8 | 130～226 | 20/105 | 514.6 | 566.3 | |
| WNS10 | 600hp | 10 | 130～226 | 20/105 | 641.7 | 707.8 | |
| WNS12 | 720hp | 12 | 130～226 | 20/105 | 768.9 | 849.3 | |
| WNS15 | 900hp | 15 | 130～226 | 20/105 | 960.1 | 1061.7 | |
| WNS20 | 1200hp | 20 | 130～226 | 20/105 | 1276.2 | 1415.8 | |
Recommend Boiler
Skid-mounted Boiler
Skid-mounted steam boiler and hot water boiler systems represents an all-in-one, ready-to-operate boiler solution.
Vertical Oil / Gas Boiler
More suitable for: small space, low budget, OR steam demand of 100 to 2000 kg/h, 120 to 1400 kw/h
