Plug and play boiler | Skid-mounted boiler | Portable steam boiler
Portable steam boiler has skid mounted boiler and container boiler, which is to fix all auxiliary equipment like boiler, control system, soft water processor, soft water tank, feed water pump, sub-cylinder, fuel tank and instrument valve, and realize the portable of the whole equipment.
| Transfer medium: | steam |
| Thermal Capacity: | 50-10,000kg/hr 100-7000kw/h |
| Styles: | steam boiler, hot water boiler, hot oil boiler |
| Fuel: | Fuel oil, electricity |
| Applied Industries: | food, beverage,paper mill, packaged, refinery, chemical, laundry, hotel, oilfiled, construction, bitumen etc |
Introduction

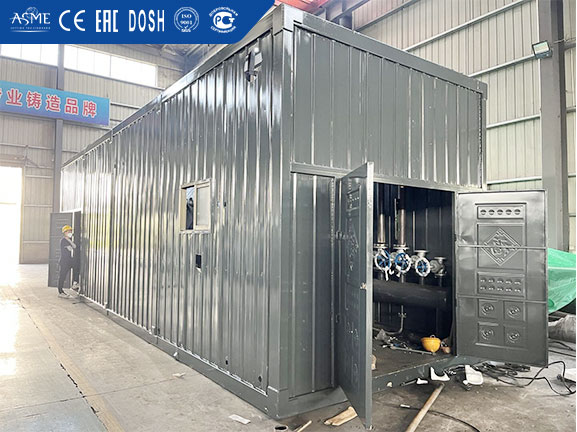

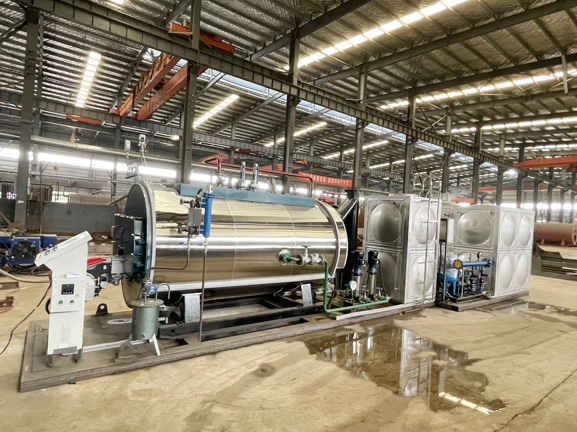

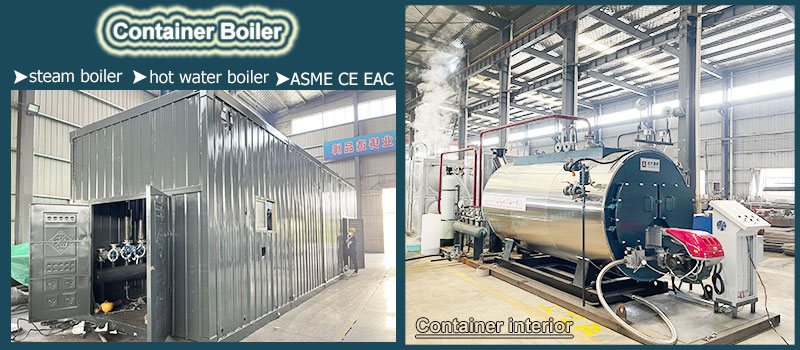

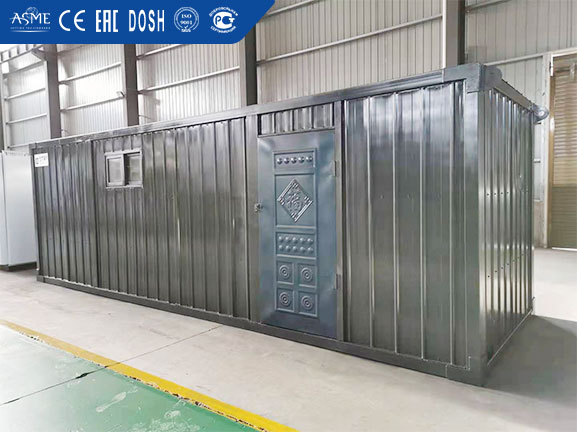

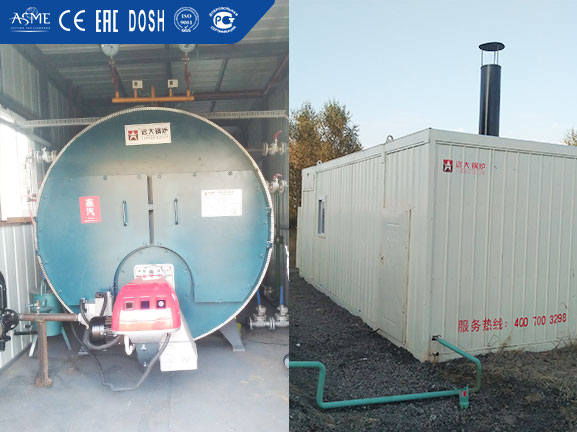

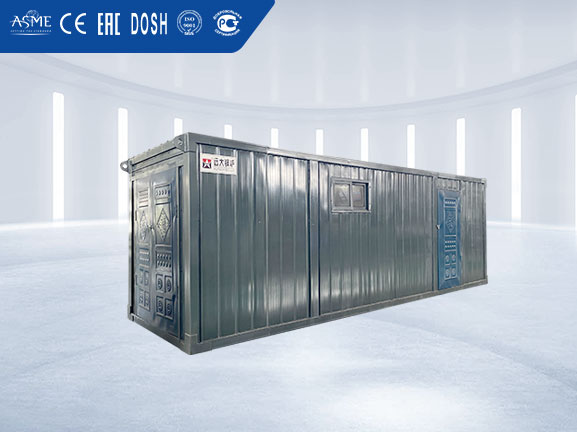

Portable steam generating boiler has 2 types: skid mounted boiler and containerised boiler.
Free installation, only need to conect water/electricity/fuel then put into use.
Easy for moving, low requirements for the boiler use environment, no boiler room construction
Boiler main advantages: "first furnace tube pass" "second fire tube pass" "three fire tube pass", "wet back water wall", "large corrugated furnace" and "patented thread pipe" technology. It equipped with famous burner & valve groups, and independently developed high-matching PLC control system to realize muitiple linkages. Over pressure, over temperature, low water level, air ignition alarm interlock. The lock protection function ensure the equipment running 100% safety.
We Yuanda Boiler has strict quality control department. Such as many tests for raw materials, boiler NDT((Nondestructive Testing) including X-ray Test, Ultrasonic Test, Magnetic particle Test, then three hydraulic pressure test before packaged.

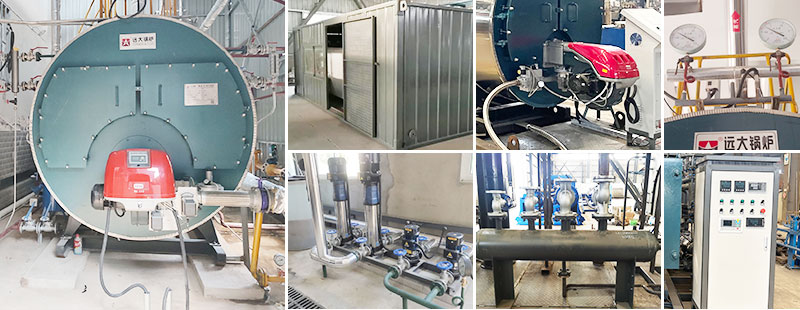

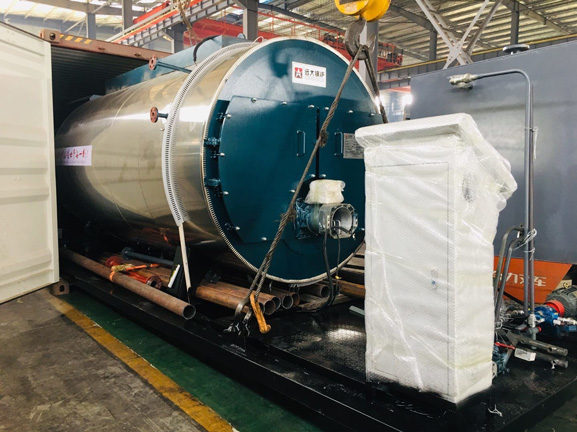

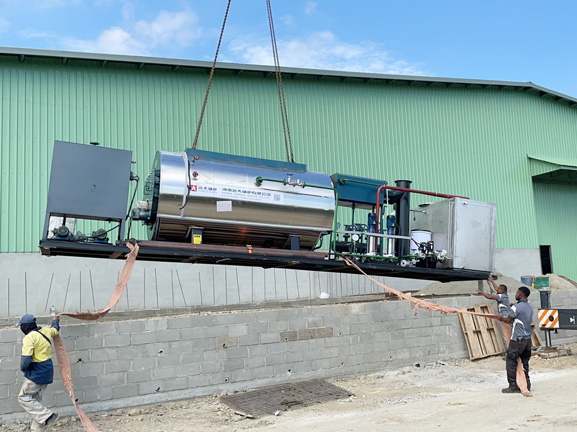

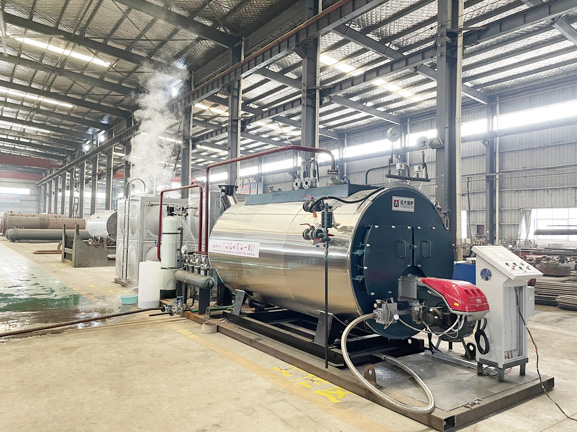

Portable Boiler View
Characteristics
Benefits
From boiler solution, optimization to installation, 24 hours online, provide technical support and avoid risks for you
Based on user needs, we supply tailored service, boiler drawing&PID system, boiler room design, foundation drawings etc
Full-life After sale service. With our professional technical experts and service team, skilled technology provides customers with professional services
Our engineer on-site guidance installation and commissioning, ensure boiler running perfect, free training for boiler operator
According to the customer production requirements, provide professional boiler solutions, cost analysis, project investment budget, boiler drawing&installation and commissioning service
Parameter
| Model |
Rated steam output (ton/hr) |
Rated pressure (Mpa) |
Rated steam temperature (℃) |
Feed water temperature (℃) |
Fuel consumption | |
| Light diesel oil(kg/h) | Natural gas(Nm3/h) | |||||
| WNS 0.5 | 0.5 | 0.4～2.5 mpa | 130～226 | 20/105 | 32.5 | 35.7 |
| WNS 1 | 1 | 0.4～2.5 mpa | 130～226 | 20/105 | 64.6 | 70.1 |
| WNS 1.5 | 1.5 | 0.4～2.5 mpa | 130～226 | 20/105 | 96.8 | 105.2 |
| WNS 2 | 2 | 0.4～2.5 mpa | 130～226 | 20/105 | 129.3 | 140.3 |
| WNS 3 | 3 | 0.4～2.5 mpa | 130～226 | 20/105 | 192.9 | 212.1 |
| WNS 4 | 4 | 0.4～2.5 mpa | 130～226 | 20/105 | 258.2 | 283.4 |
| WNS 5 | 5 | 0.4～2.5 mpa | 130～226 | 20/105 | 323.5 | 354.7 |
| WNS 6 | 6 | 0.4～2.5 mpa | 130～226 | 20/105 | 388.6 | 424.2 |
| WNS 8 | 8 | 0.4～2.5 mpa | 130～226 | 20/105 | 514.6 | 566.3 |
| WNS 10 | 10 | 0.4～2.5 mpa | 130～226 | 20/105 | 641.7 | 707.8 |
| WNS 12 | 12 | 0.4～2.5 mpa | 130～226 | 20/105 | 768.9 | 849.3 |
| WNS 15 | 15 | 0.4～2.5 mpa | 130～226 | 20/105 | 960.1 | 1061.7 |
| WNS 20 | 20 | 0.4～2.5 mpa | 130～226 | 20/105 | 1276.2 | 1415.8 |
| Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design. | ||||||

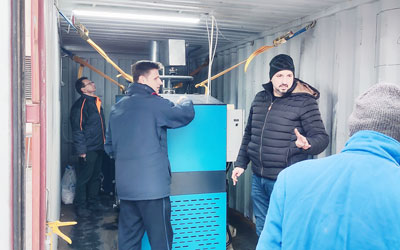

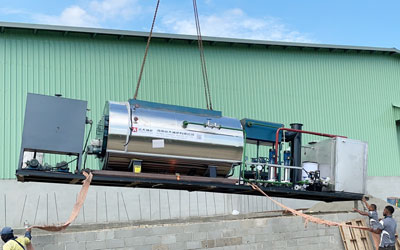

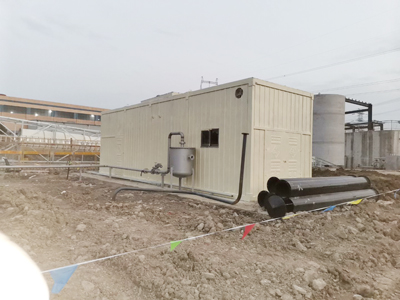

Relate Cases
