ASME STEAM BOILER

Yuanda Boiler is a grade A ASME S & U stamp certified industrial boiler manufacturer with over 70 years of engineering excellence. Our ASME steam boilers are designed, manufactured, and tested in strict compliance with ASME Boiler and Pressure Vessel Code (BPVC) Section I – the global benchmark for boiler safety and reliability. From 0.5 ton/h to 100 ton/h, we provide complete steam solutions for food processing, chemical plants, textile mills, paper factories, and power generation industries worldwide.

Certifications: ASME S Stamp | CE (PED) | ISO 9001:2015 | EAC | DOSH | TUV | BV

Our ASME Steam Boiler Series

Three-pass wet-back structure with large corrugated furnace and patented thread smoke tubes. International first-level burners and self-developed PLC control system.

Capacity: 0.5–20 t/h | Pressure: 0.4–2.5 MPa | Fuel: Natural gas, LPG, diesel, heavy oil | Efficiency: >98%

Features: Skid-mounted, factory pre-assembled, fast startup, fully automatic, complete set shipped to site.

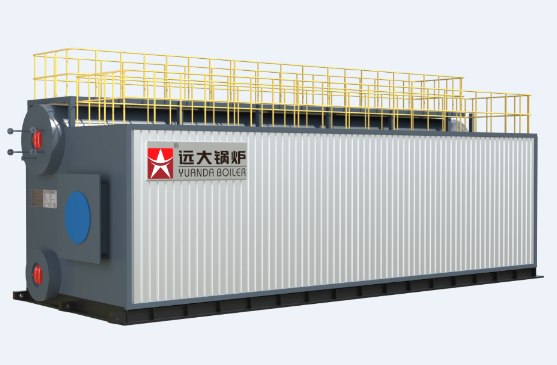

SZS Series – Vertical D-Type Water Tube · Membrane Wall

Double-drum D-type water tube boiler with fully welded membrane water wall, flag-type superheater, and economizer. Ideal for high-pressure cogeneration.

Capacity: 4–100 t/h | Pressure: 1.0–3.8 MPa (up to 5.3 MPa) | Fuel: Natural gas, diesel, biogas | Efficiency: >92%

Features: Higher steam purity (<1% humidity), low NOx emission (≤50mg/m³), superheated steam up to 450°C.

DZL Series – Water-Fire Tube Hybrid · Chain Grate
Single-drum combined water-fire tube design with left-right water wall as radiant heating zone and convective heating via two-wing flues & threaded fire tubes.

Capacity: 1–10 t/h | Pressure: 0.7–2.5 MPa | Fuel: Coal, biomass, wood waste | Efficiency: >85%

Features: Ideal for small-medium scale, cost-effective, high automation for solid fuel, low ash accumulation.

SZL Series – Double Drum Water Tube · Chain/Reciprocating Grate
*Double-drum water tube boiler with cyclone combustion chamber and membrane water wall. Optimized for continuous 24/7 operation.*

Capacity: 2–35 t/h | Pressure: 1.0–2.5 MPa | Fuel: Biomass, coal, wood waste | Efficiency: >86%

Features: Self-cleaning grate, high fuel adaptability, multi-zone air distribution, eco-friendly dust collector.

LHS Vertical Series – Vertical Fire Tube · Space-Saving
*Vertical fire tube boiler with wet back and multi-pass smoke flow. Compact footprint, fast steam generation within 10 minutes.*

Capacity: 0.1–2 t/h | Pressure: 0.1–3.8 MPa | Fuel: Gas, diesel, heavy oil | Efficiency: >95%

Features: Small installation area, quick startup, easy maintenance, low operator requirement.

Installation: Fast & Hassle-Free

Package Boiler (WNS / LHS Series)
Skid-mounted and factory pre-assembled before shipping
Complete unit including boiler proper, burner, economizer, controls, water treatment, all piping, and chimneys
On-site: only connect water, gas/fuel, and electric supplies
Installation completed within 3-5 days by local team under remote guidance
Typical foundation: simple concrete pad – no special seismic design

Field-Assembled Boiler (SZL / SZS Series)
Major modules (drums, water walls, superheater, economizer) factory fabricated and shipped in sub-assemblies
Standard on-site erection takes 15-20 working days
Turnkey service covers foundation, piping erection, auxiliary equipment installation and commissioning
We provide foundation drawings, layout drawings, and boiler room design based on your site survey.
Comprehensive Support & Services
Before Delivery
Free technical consultation – foundation, layout, boiler room design, fuel consumption, and cost analysis.
Customized drawing package: GA drawings, P&ID, foundation and layout drawings.
Supply quality certificates, mill test certificates, and factory inspection reports.

Pre-Shipment
24/7 production tracking to ensure on-time delivery.
Pre-commissioning video verification with the client before shipping.
Spare parts list for 3 years of operation provided upfront.

On-Site & After-Sales
Overseas engineers available for on-site installation supervision and commissioning.
On-site training for boiler operators (English, Spanish, French language support).
1-year free maintenance and repair, lifetime service support.
Online technical support with response within 24 hours.
Readily available genuine spare parts shipped directly from factory within 5-7 days.
