Thermic fluid heater | Organic heat carrier boiler | Hot oil heating boiler

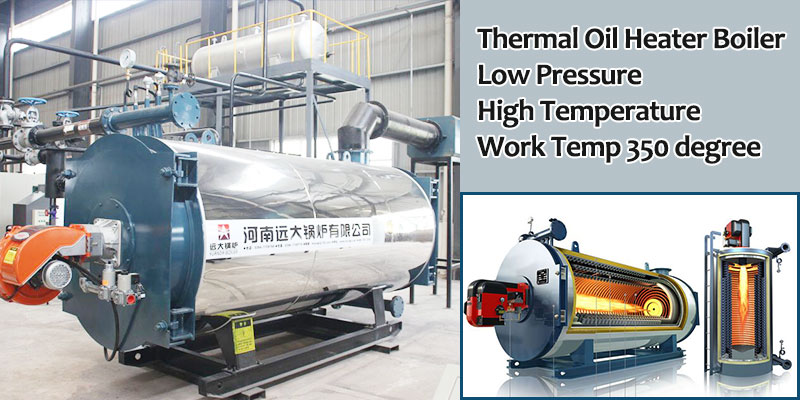

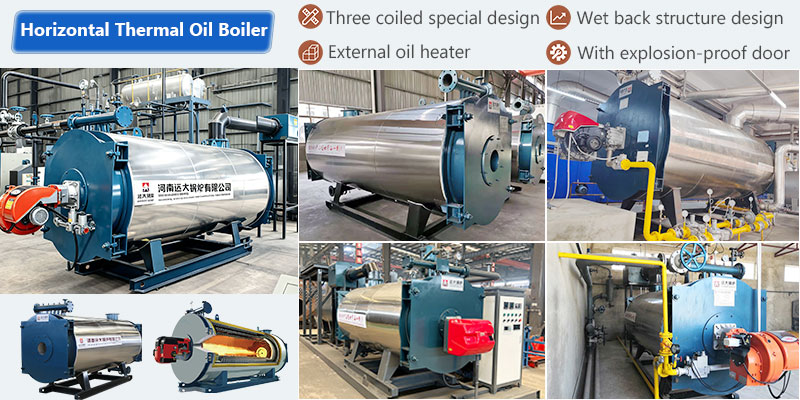

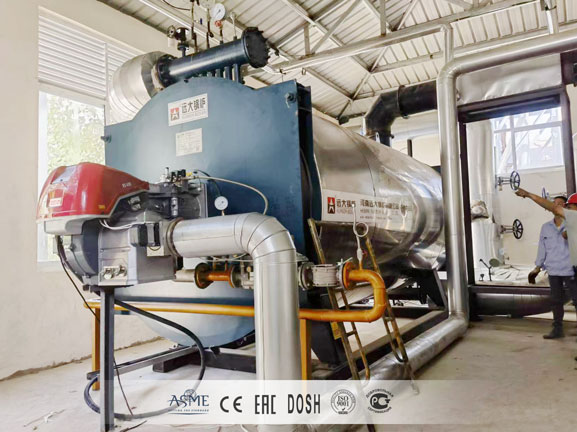

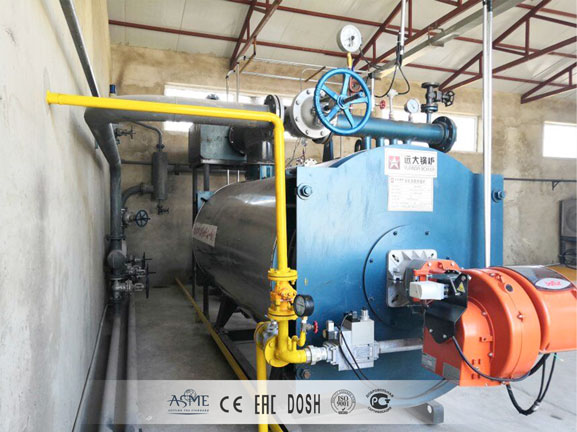

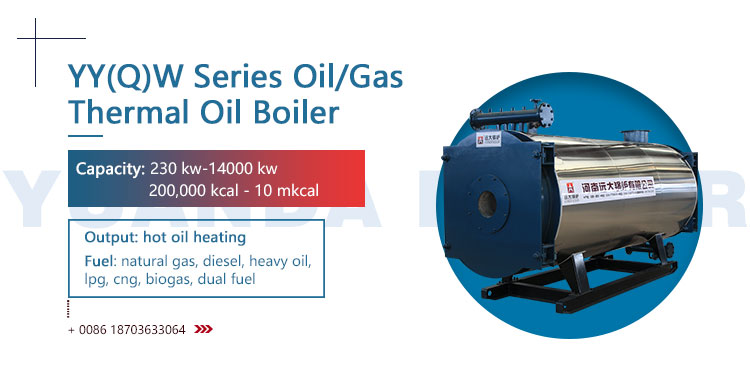

YY(Q)W series thermal oil boiler is horizontal chamber combustion three-coil structure, wet back boiler. This boilers are fully automatic, safe and designed to operate on a wide range of liquid and gaseous fuels like heavy oil, light oil, gas, and dual fuel options.
| Thermal Capacity: | 120-14,000kw 150,000-12,000,000Kcal |
| Work Temperature: | 0 ℃ ~ 400 ℃ |
| Layout: | Horizontal, Vertical, Skid-mounted |
| Available Fuel: | gas, lpg, heavy oil, diesel, dual fuel |
| Usage: | Plywood, Cement, Chemical, Plastic, Textile, Dyeing, Fiber, Rubber, Food, Painting, Coating |
Introduction

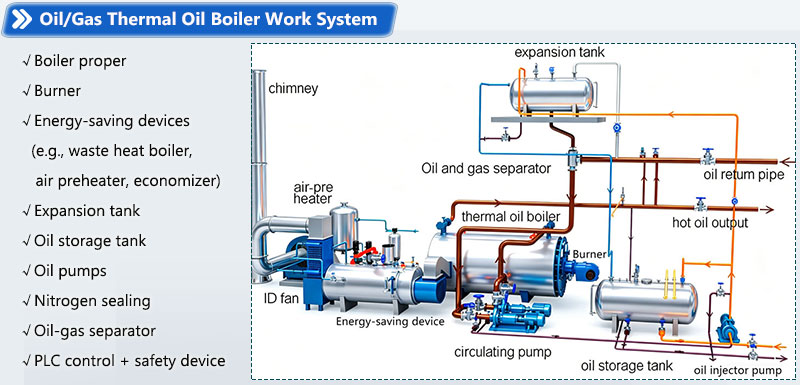

The Yuanda YYQW series thermal oil boiler is a kind hot oil boiler which uses gas(oil) as fuel, thermic oil(vegetable oil) as medium, using hot oil circulation pump to make the medium oil to forced circulation, deliver the heat to heating need equipments and then go back to the boiler. It can obtain a high working temperature at low pressure and can do high-precision control on the medium.
The boiler body is composed of outer coil pipe, middle coil pipe and inner coil pipe. Thermal oil boiler can be used for heating in various production process where the heating temperature is between 150℃ - 350℃ and temperature is adjustable.

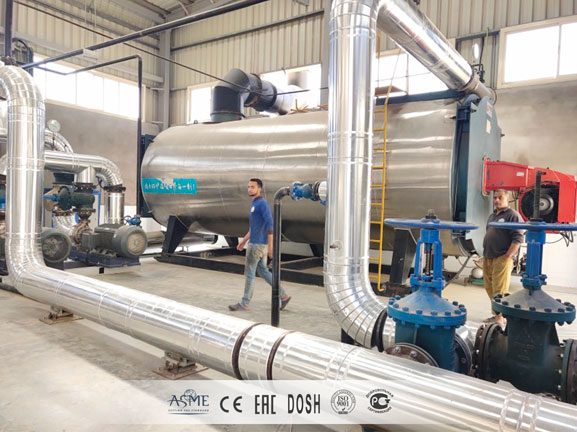

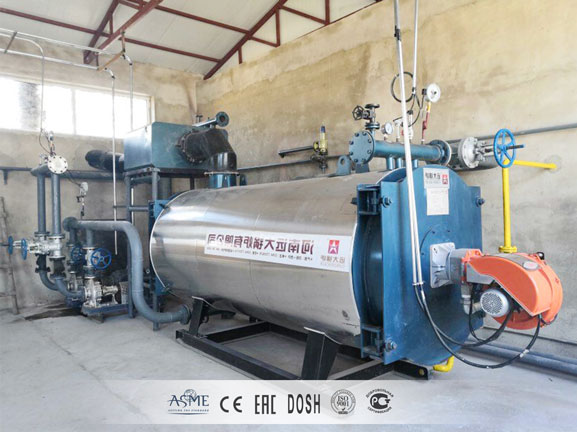

Most factory required the thermic fluid heater, such bitumen, gypsum plant, reaction kettle, Lubricant factory, Printing and dyeing factory, Rubber factory, Lumber factory, Plywood factory, Plastic factory, Food factory, Non-ferrous metal factory, chemical, resines, petrochemical industry, plastic rubber, food factory, oil & fat, paper making, textile, metal -working, plating, construction, lumber, other uses
Passed ASME CE ISO EAC DOSH GB ISO certification, can be installed in all over the world.

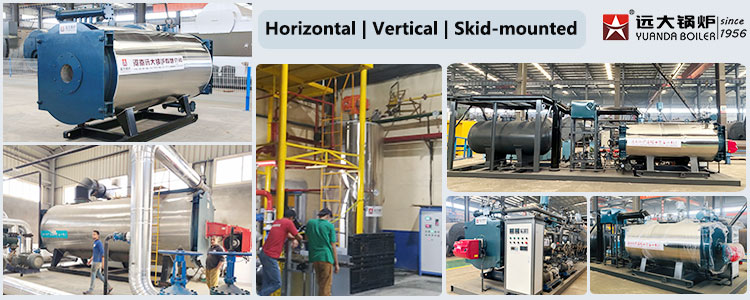

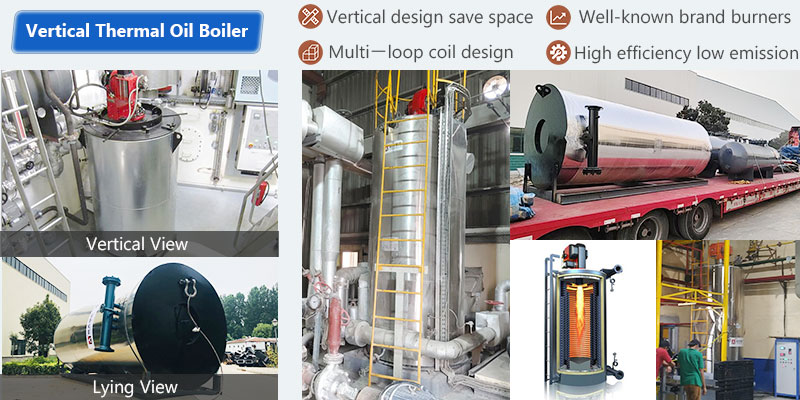

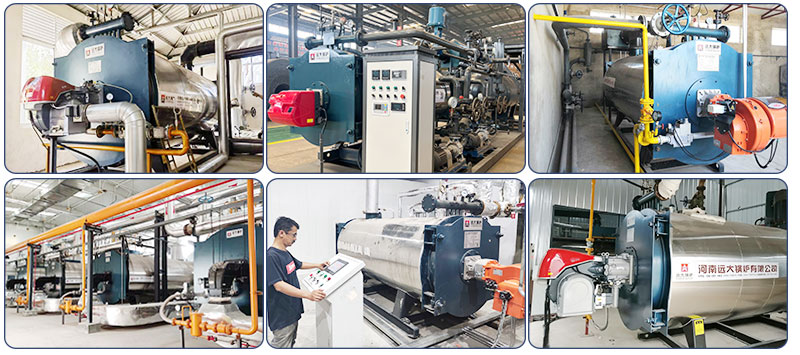

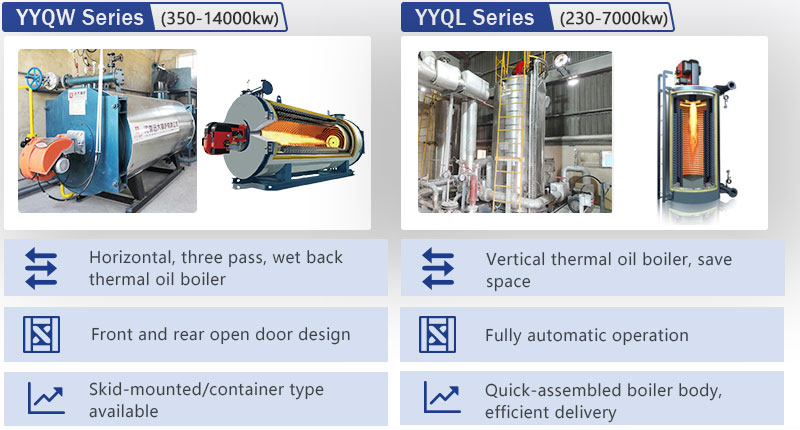

Vertical and skid-mounted thermal oil boilers are available.
"YYQW" is horizontal thermal oil boiler, "YYQL" is vertical gas oil fired thermal oil boiler.
Skid-mounted thermal oil is also called plug-and-play boiler. All auxiliary accessories are installed on the steel frame before shipment
• 3-pass wet back, oil cover fire structure, larger corugated furmace.
Increase radiant heating area, the boiler thermal efficiency is higher; Prevent the boiler shell from deforming under high temperature; Compact coil tube, no gaps, ensuring the flue gas flow
• High-matching PLC English/Russia/Spanish control system & touch screen display.
Realize muitiple linkages, easy to operate, protect the boiler long uselife & running safely.
• Double Layer 12cm aluminum silicate insulation
Boiler surface temperature is not higher than 40 ℃, energy saving and high efficiency
• Outputting oil tank external design
Prevent oil carbonization and avoid accidents, and easy for maintenance. Ensure the oil heater lifespan.
• Double door for smoke box
Easy inspection and maintenance; Explosion-Proof door, make sure safety.
Pre-sale Service:
1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Transportation一We have shipping partners and forwarder for lowest price and safe.
After-sale Service:
1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
Quality Assurance
Steel element test→Steel rust cleaning→Welding electrodes drying process→Automatic welding, argon arc welding, expansion welding etc. methods→NDT(Nondestructive Testing) including X-ray Test, Ultrasonic Test, Magnetic particle Test→Hydraulic pressure test.
FAQ of Thermal Oil Boiler
1. How much gas does the boiler use per hour?
Take 700kw natural gas thermal oil boiler as an example, the consumption per hour is 70m³.
2. Worried about the installation?
①We have skid mounted thermal oil boiler, free of installation; ②We can send engineers to install boiler.
3. Don't have enough space in our factory?
We have vertical thermal oil boiler, small footprint.
4. Do you have agent here?
We have agents and partners in some countries, will check list for you.
Parameter
| Model |
Rated thermal power (KW) |
Heating power (kcal) |
Rated working pressure (Mpa) |
Thermal oil outlet temperature (℃) |
Fuel consumption | |
| Light diesel oil(kg/h) | Natural gas(Nm3/h) | |||||
| YY(Q)W-350Y(Q) | 350 | 300000 | 0.8/1.0 | ≤350 | 30.5 | 36.1 |
| YY(Q)W-700Y(Q) | 700 | 600000 | 0.8/1.0 | 61.3 | 73.6 | |
| YY(Q)W-1000Y(Q) | 1000 | 850000 | 0.8/1.0 | 92 | 101.5 | |
| YY(Q)W-1400Y(Q) | 1400 | 1200000 | 0.8/1.0 | 122.6 | 147.1 | |
| YY(Q)W-3000Y(Q) | 3000 | 2500000 | 0.8/1.0 | 249.2 | 296.4 | |
| YY(Q)W-3500Y(Q) | 3500 | 3000000 | 0.8/1.0 | 305.6 | 366.8 | |
| YY(Q)W-4200Y(Q) | 4700 | 4000000 | 0.8/1.0 | 367.5 | 436.6 | |
| YY(Q)W-5600Y(Q) | 5600 | 4800000 | 0.8/1.0 | 489.6 | 586.8 | |
| YY(Q)W-7000Y(Q) | 7000 | 60000000 | 0.8/1.0 | 612.3 | 726.9 | |
| Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design. | ||||||
