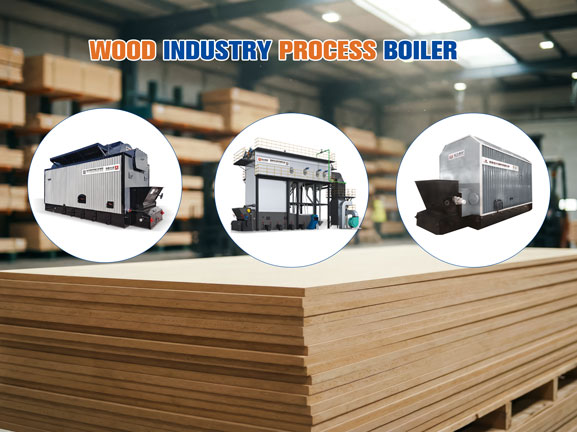

Biomass Steam & Thermal Oil Boiler for Wood Processing
Yuanda Boiler provide turnkey wood industry process boiler: DZL/DZH, SZL, SZW biomass steam boiler and YLW thermal oil heater for plywood, MDF, OSB, drying kiln. Fuel wood waste, chips, wood scraps, save cost, CE/ASME certified.
| Capacity: | 100kg-65000kg, 0.1ton-65ton, 120kw-28000kw |
| Work Pressure: | 3-40bar, 0.3-4.0Mpa |
| Heat Temperature: | 0-450℃ |
| Output: | Saturated/Superheated Steam, Hot Oil |
| Application: | For heating/drying/turbine drive in wood processing plant |
Biomass Steam & Thermal Oil Boiler for Wood Processing
In wood processing, a stable and efficient boiler system is the heart of your production line. From log steaming and veneer drying to fiber separation and hot pressing, the right boiler directly impacts product quality and operating costs. Yuanda Boiler offers complete heating solutions tailored for the wood industry, using your own wood waste as fuel to cut energy expenses significantly.
A wood industry boiler is a specialized industrial boiler designed to generate steam or thermal oil for various wood processing applications. Unlike standard boilers, our systems are engineered to burn wood waste (bark, sawdust, wood chips, sanding dust) efficiently, turning by-products into free fuel. Available as steam boilers (for saturation processes) and thermal oil heaters (for high-temperature precision heating).
Log steaming (12-30h), veneer drying, hot pressing. Requires 1.0-1.6MPa saturated steam.
Fiberizing, drying, hot pressing (thermal oil for precise temp control ±2°C).
Steam-to-air heat exchangers for controlled drying, preventing cracks and mold.
Thermal oil for impregnated paper drying, edge banding, and pressing.

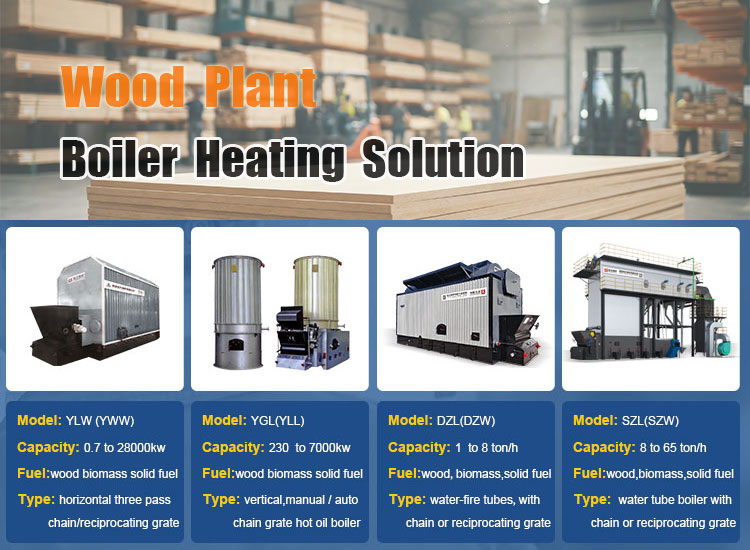

Yuanda offers four proven series, each optimized for different scales and heat media requirements.

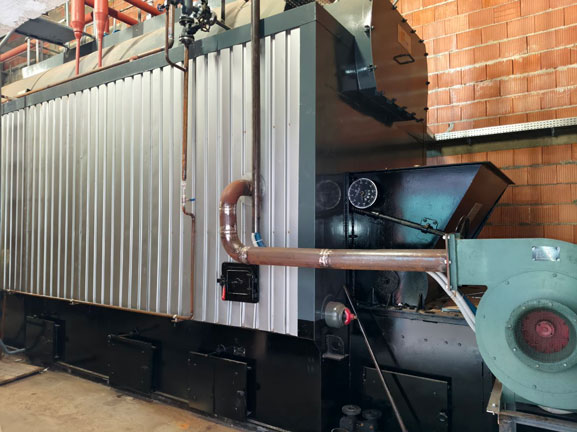

Horizontal water-fire tube biomass steam boiler. Capacity 2-10 t/h. Ideal for small to medium plywood or drying plants. Compact design, easy installation.
Assembly chain grate water tube boiler. 4-35 t/h. High efficiency (>85%), suitable for MDF/OSB lines with continuous operation.

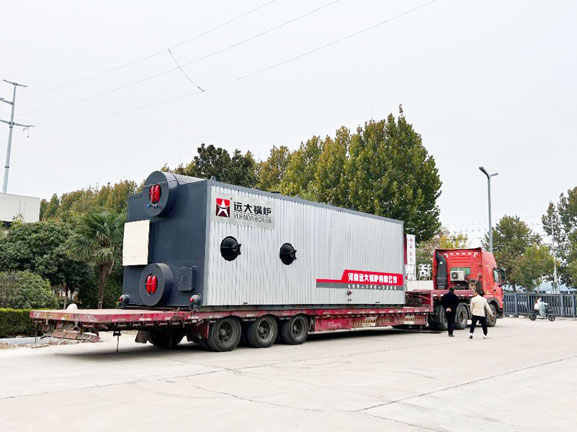

Water tube reciprocating grate boiler. 6-20 t/h. Specifically for high-moisture wood waste (up to 50%), self-cleaning grate.

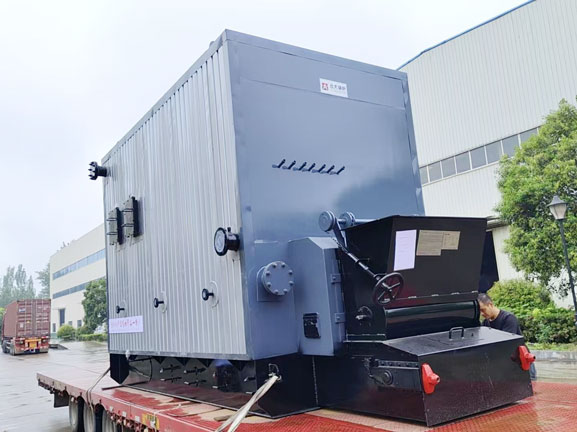

Horizontal thermal oil heater. 0.35-14 MW. Output temperature up to 320°C, precise control. Best for hot pressing, laminate drying.
| Factor | Consideration |
|---|---|
| Heat medium required | Steam only → DZL/SZL/SZW; thermal oil only → YLW; both → combination system |
| Capacity (steam t/h or MW) | Small plant (2-6 t/h) → DZL; medium to large (6-35 t/h) → SZL/SZW |
| Fuel moisture | Wet wood (≥40%) → SZW reciprocating grate; dry wood chips → chain grate |
| Operation mode | Continuous 24/7 → SZL/SZW; intermittent → DZL |
| Budget & space | Packaged DZL for quick installation; assembly SZL for larger projects |
Contact Yuanda Boiler for a free consultation and customized boiler solution based on your wood waste availability and production needs.
sales@yuandaboiler.com | www.yuandaboiler.comQuality Control
(1) Strength calculation report with applied materials information;
(2) 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3) 100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4) Hydrostatic test: ensure the standard working pressure and safety;
(5) Third-party inspection report
(6) Passed ASME CE ISO DOSH EAC GOST boiler level certificate.
Our Service
Comprehensive Boiler Solutions – From Planning to Lifetime Support
Pre-Sales Support:Expert Design Guidance: Help you select the optimal boiler model tailored to your industry needs.
Detailed Technical Documentation: Provide certificates, CAD drawings, consumption analysis, and boiler room planning.
Customized Solutions: Deliver complete system designs including installation material lists.
Competitive Pricing: Factory-direct rates with uncompromised quality.
After-Sales Assurance:Genuine Spare Parts: Original components with reliable supply.
Global Installation & Commissioning: Overseas engineer dispatch available.
On-Site Training: Ensure safe and efficient operation.
24/7 Online Support: Rapid response for any technical needs.
Warranty & Lifelong Care: One-year free maintenance and lifetime service support.
Parameter
| Model |
Steam output (Ton per hour) |
Rated steam pressure (Mpa) |
Rated steam temperature (℃) |
Feed water temperature (℃) |
Thermal efficiency (%) |
Fuel consumption (Kg/h) |
| DZL 1 | 1 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 150 |
| DZL 2 | 2 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 280 |
| DZL 4 | 4 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 570 |
| DZL 6 | 6 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 810 |
| DZL 8 | 8 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 1100 |
| DZL 10 | 10 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 1380 |
| DZL 15 | 15 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 2100 |
| DZL 20 | 20 ton | 0.4 to 2.5 mpa | 130～226 ℃ | 20/105 ℃ | ＞86 | 2600 |
| Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design. | ||||||

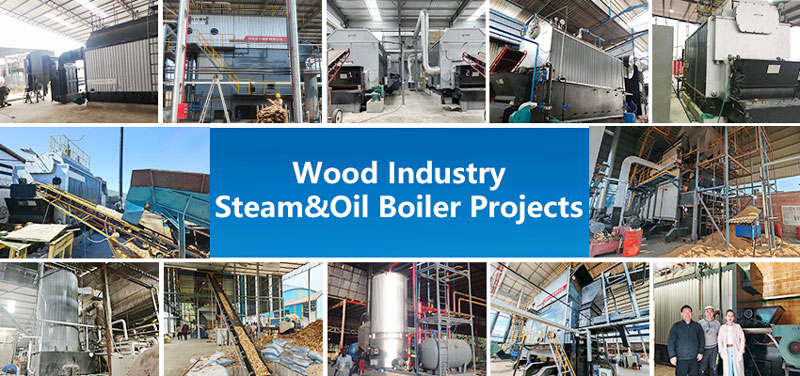

Relate Cases
