Firewood boiler | Traveling grate boiler | Horizontal wood boiler
The DZH series is a hand‑fired, moving grate boiler designed to burn biomass fuels such as wood logs, firewood, wood waste, coconut shell, straw, and other solid fuel. The name DZH stands for single drum, longitudinal layout, and hand‑fired operation.
| Output: | steam, hot water |
| Capacity: | 0.1ton-8ton, 120kw-5600kw |
| Work Pressure: | 3-20bar, 0.3-2.0Mpa |
| Heat Temperature: | 0-208℃ |
| Applied Industry: | steam or hot water for processing, heating, or sterilization. |
Introduction
The DZH series is a hand‑fired, traveling grate boiler designed to burn biomass fuels such as wood logs, firewood, wood chips, pellet, rice husks, shells and other solid fuel. The name DZH stands for single drum, longitudinal layout, and hand‑fired operation.
The boiler uses a water‑fire tube combination design. The furnace is surrounded by water‑cooled walls, and the drum contains fire tubes for heat exchange. This gives good heat transfer in a compact size.
The DZH boiler is manually operated. Fuel is fed by hand, and ash is removed by hand. Therefore, this boiler is an idea choice for small and medium-sized enterprises with low-cost biomass fuel and labor.
1. Hand‑operated traveling grate – you can break clinkers, move fuel, and remove ash without stopping the boiler.
(The operator loads biomass fuel (firewood, chips, briquettes, or pellets...) onto the moving grate through the front fire door)
2. Large furnace with front and rear arches – gives more time for volatile gases to burn, reducing black smoke.

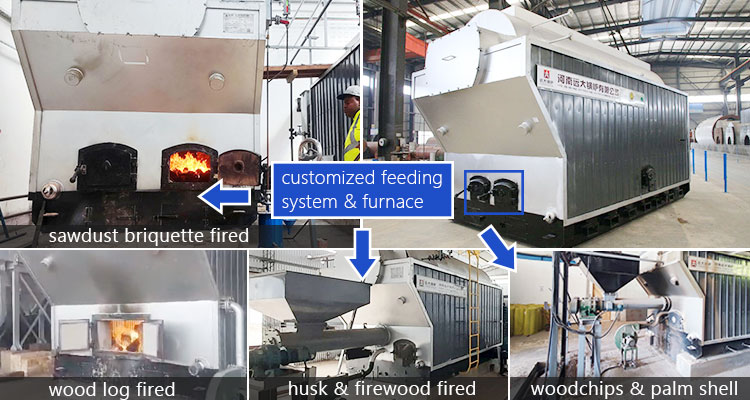

3. Customized feed door and furnace arch based on fuel.
4. Three‑pass flue gas path – extracts more heat from the exhaust.
5. Threaded smoke tubes – create turbulence for better heat transfer than smooth tubes.
6. Wing‑shaped flue passages – act as dust settling chambers to reduce tube wear.
7. Manual fuel feeding, with natural draft and mechanical secondary air assistance,ensure burning well
8. Large water volume – helps the boiler handle sudden load changes and gives safety during power outages.

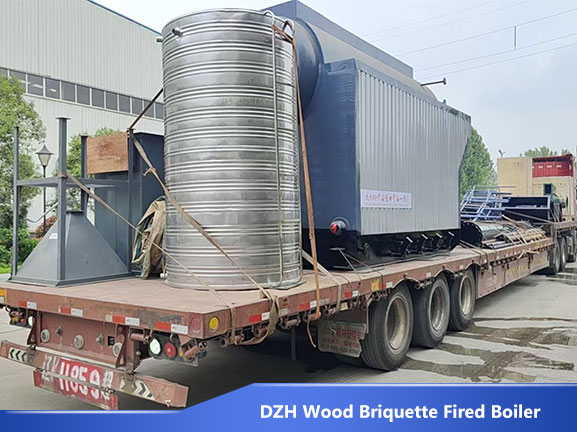

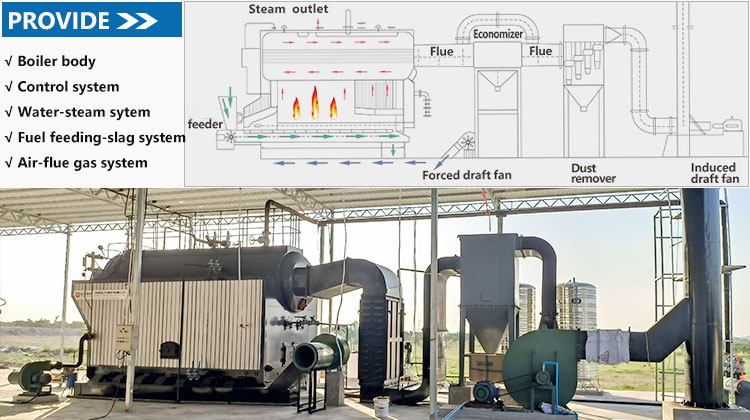

Each DZH boiler is delivered as a packaged unit and includes:
① Boiler body+Moving grate assembly ② Control cabinet ③ Water treatment & tank ④ Basic instrumentation (pressure gauge, water level gauge, thermometer) ⑤ Chimney with rain cap ⑥ Safety valves and blowdown valves
⑦ Induced draft fan and forced draft fan ⑧ Cyclone dust collector ⑨ Steam header ⑩ Slag remover
Optional Upgrades: Automatic fuel feeding (auger), Mechanical ash removal, Digital control panel, Higher‑efficiency dust collector (water film or bag filter), Economizer (feedwater preheater), Air preheater
√ Low fuel cost – biomass is cheaper than oil, gas, or coal in many areas.

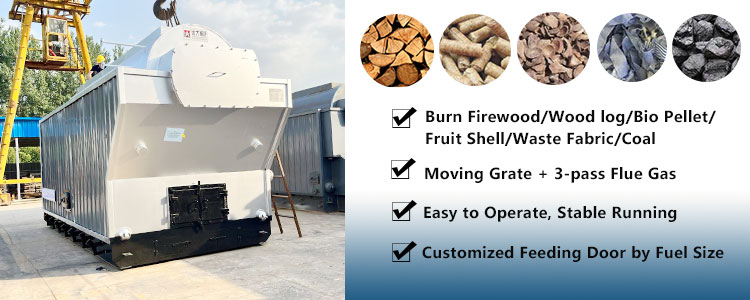

√ Fuel flexibility – One of the greatest advantages of the DZH boiler. It can burn agricultural residues(Rice husks Peanut shells Coconut shells Palm kernel shells Sunflower husks Coffee husks ) Wood-based Fuels (Wood logs and branches/Sawdust/Wood chips/Bark/Wood processing waste/Offcuts). Coal firing is also optional.
√ Simple to operate – no complex automation; local staff can learn quickly.
√ Low spare parts cost – mechanical parts are easy to find and replace.
√ Lower initial investment – costs much less than fully automated systems.
√ Waste to value – turns on‑site agricultural or wood waste into useful steam or heat.
Discover our products: Oil/gas-fired boilers, coal-fired boilers, wood biomass boilers, electric boilers, thermal oil boilers, incinerators, hot water boilers, exhaust gas boilers.
■ Founded in 1956, a premium supplier assessed, certified, and inspected by SGS Group. Leading industrial boiler manufacturer in China.
■ Holds international boiler certifications: CE, ASME, DOSH, EAC, GOST, ISO
■ Over 17 years of export experience, gold-level supplier, ensuring payment and delivery.
■ Professional team integrating R&D, production, sales, and service.
■ 53,053㎡ Factory area, supporting video/VR factory audits or third-party inspections.
■ Engineers serving over 50 countries.
■ Products sold to over 130 countries/regions, covering food, beverage, textiles, paper, wood industries. Serving over 100,000 customers.
Tech Point
01
Three pass gas flue structure & Arched tube plate
1. Three pass design extends the flue gas distance, strengthen the thermal transfer efficiency; 2. Arched tube plate increases the toughness of the tube sheet, prevent end cover cracking
02
Spiral Fire Tubes(Smoke Tube) Technology
Use the advanced technology which is our patent to design the spiral tubes, to enhance the boiler thermal power 10% higher than normal, and avoid the spiral tube from ash deposition and wearing
03
Robust and Durable Manual Moving Grate
Use big piece fire grate, air supply sufficient and evenly, tight connection, almost no leakage, avoid loss of calorific value and affect boiler thermal efficiency
04
Economizer Design, Energy Saving
1. Recycle exhausted smoke to heat feed water, increase feed water temp then save fuel cost at least 6% per hour 2. Reduce chimney smoke temperature
Our Service
Pre-Sales Support:
Expert Design Guidance: Help you select the optimal boiler model tailored to your industry needs.Competitive Pricing: Factory-direct rates with uncompromised quality.
After-Sales Assurance:
Genuine Spare Parts: Original components with reliable supply.Warranty & Lifelong Care: One-year free maintenance and lifetime service support.
We Welcome Your Inquiries If You Have Any Related Needs.
Parameter
| Model |
Rated steam output (Ton/hr) |
Rated steam pressure (Mpa) |
Rated steam temperature (℃) |
Feed water temperature (℃) |
Thermal efficiency(%) | Fuel consumption(Kg/h) |
| DZH 1 | 1 | 0.4/0.7/1.0/1.25/1.6/2.5 | 130～226 | 20/105 | ＞81 | 140 |
| DZH 2 | 2 | 0.4/0.7/1.0/1.25/1.6/2.5 | 130～226 | 20/105 | ＞81 | 280 |
| DZH 4 | 4 | 0.4/0.7/1.0/1.25/1.6/2.5 | 130～226 | 20/105 | ＞81 | 570 |
| DZH 6 | 6 | 0.4/0.7/1.0/1.25/1.6/2.5 | 130～226 | 20/105 | ＞81 | 810 |
| DZH 8 | 8 | 0.4/0.7/1.0/1.25/1.6/2.5 | 130～226 | 20/105 | ＞81 | 1100 |
| DZL 10 | 10 | 0.4/0.7/1.0/1.25/1.6/2.5/3.0/3.82 | 130～304 | 20/105 | ＞84 | 1380 |
| DZL 15 | 15 | 0.4/0.7/1.0/1.25/1.6/2.5/3.0/3.82 | 130～304 | 20/105 | ＞84 | 2100 |
| DZL 20 | 20 | 0.4/0.7/1.0/1.25/1.6/2.5/3.0/3.82 | 130～304 | 20/105 | ＞84 | 2600 |
| Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design. | ||||||
