100-40.000kg, 0.1-40ton, 80-14000kw, 10-2500hp

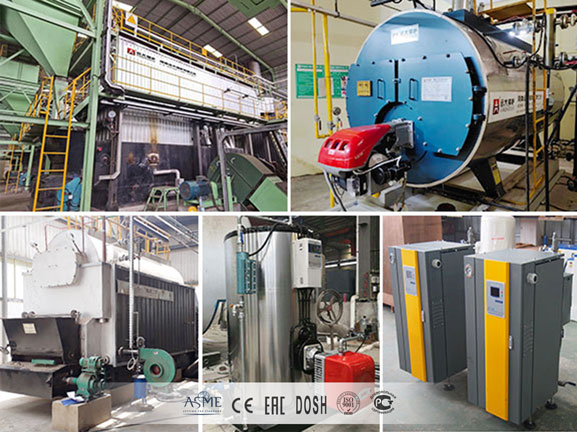

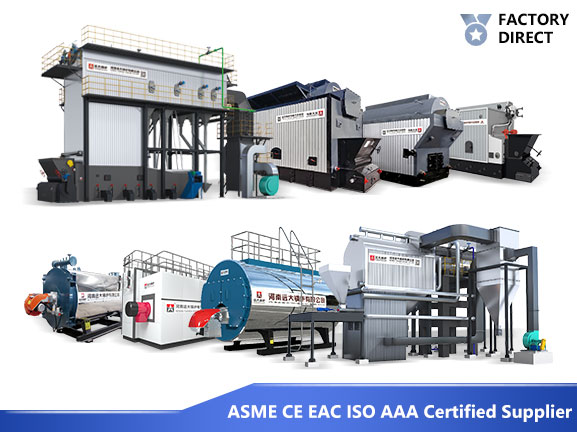

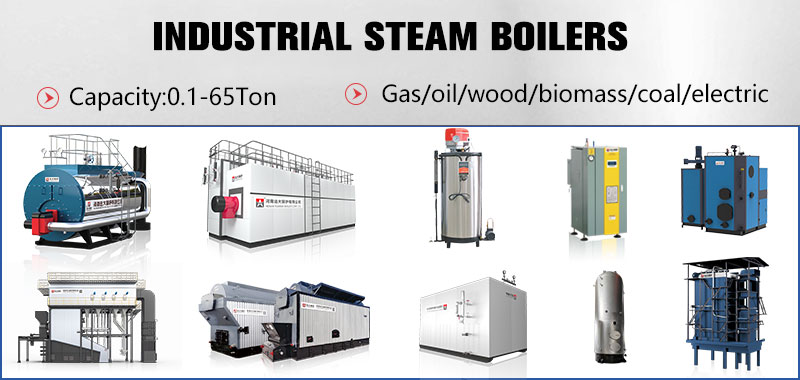

Industrial steam boiler is an important heating equipment for factory production, popular in all the needs of steam or hot water/air/oil. Widely used in food/beverage, paper making, packaged, textile, feed mill, refinery, chemical, building materials, laundry, hotel and other industries.
| Layout: | Horizontal, Vertical, Skid Mounted, Container |
| Capacity: | 0.1 - 50ton/h, 80 - 28000kw |
| Horsepower: | 10 to 2500hp |
| Available Fuel: | gas, lpg, diesel, coal, briquette, wood, biomass, husk, electric etc |
| Applied Industries: | food, beverage, paper making, packaged, textile, feed mill, refinery, chemical, building materials, laundry, hotel |
Introduction
1. Yuanda Boiler, leading boiler manufacture & supplier since 1956.

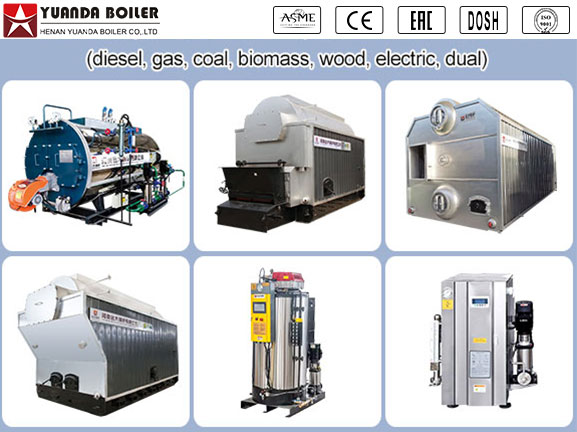

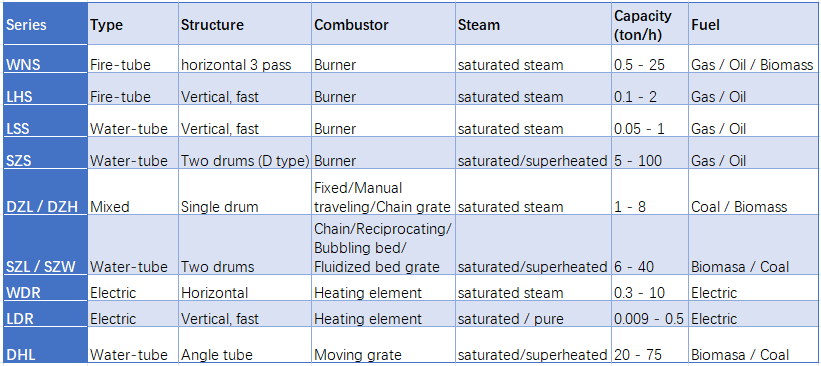

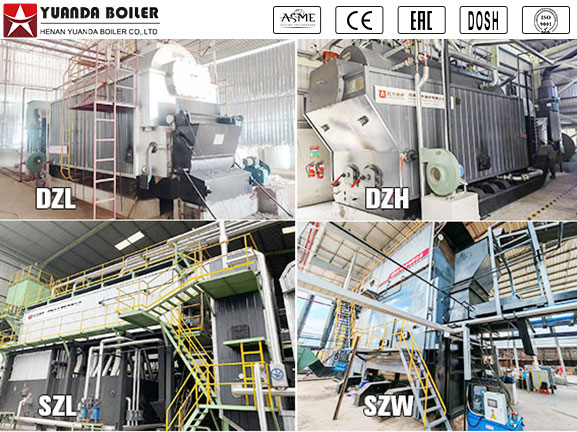

2. Well known model: WNS/LHS/SZS/DZL/DZH/SZL/LDR/WDR.
3. Can run by natural gas, lpg, diesel, heavy oil, dual fuel, coal, wood, biomass, electric etc.
4. Horizontal/vertical/skid-mounted layout optional.

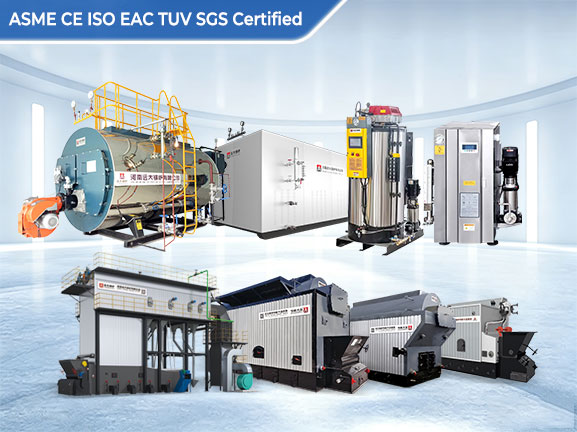

5. Passed ASME CE ISO EAC DOSH TUV BV SGS certification, ensure high quality & 100% safety.

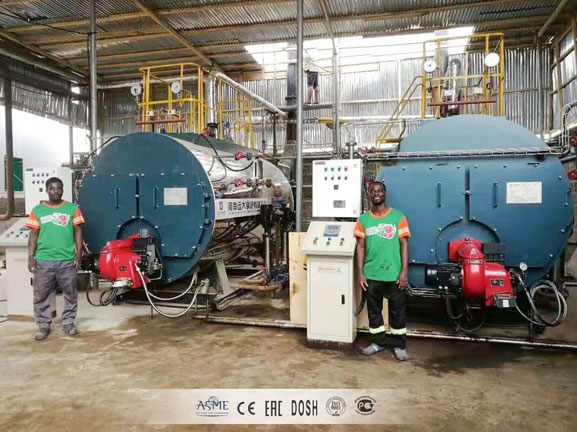

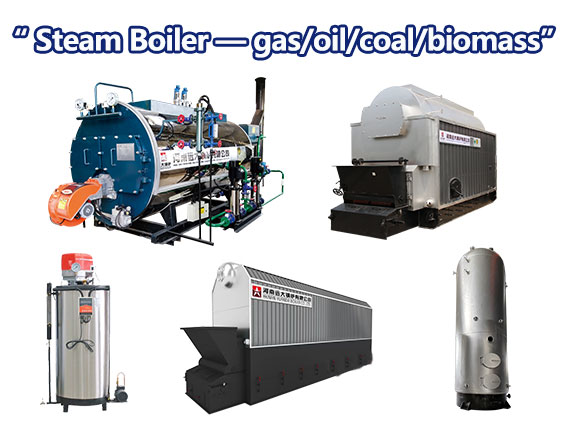

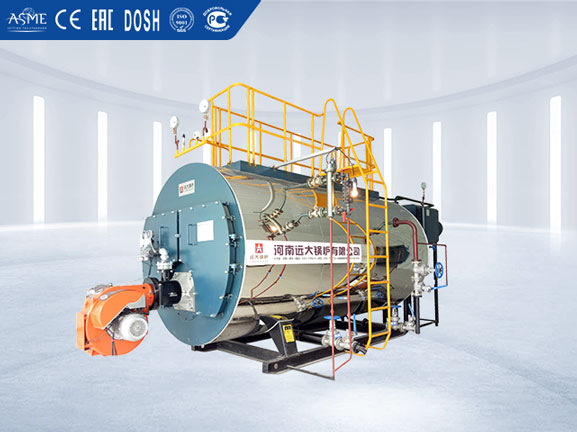

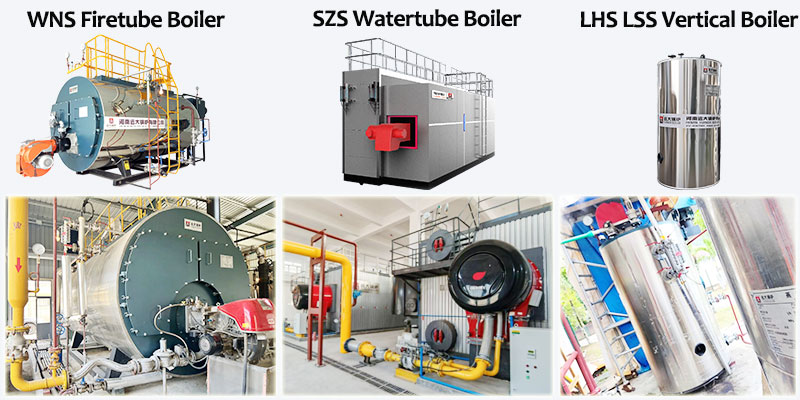

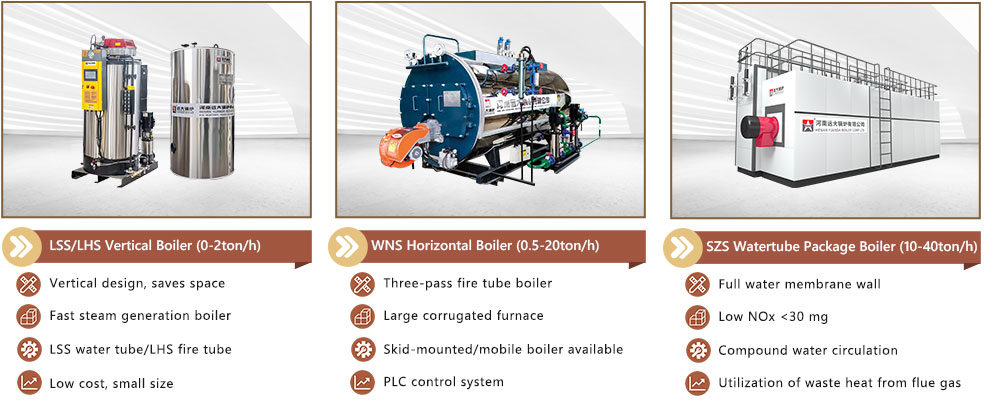

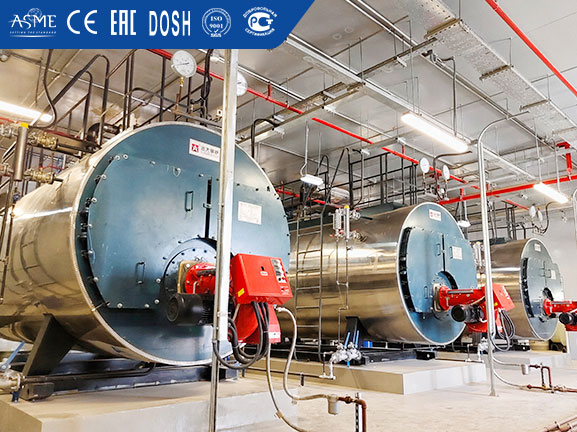

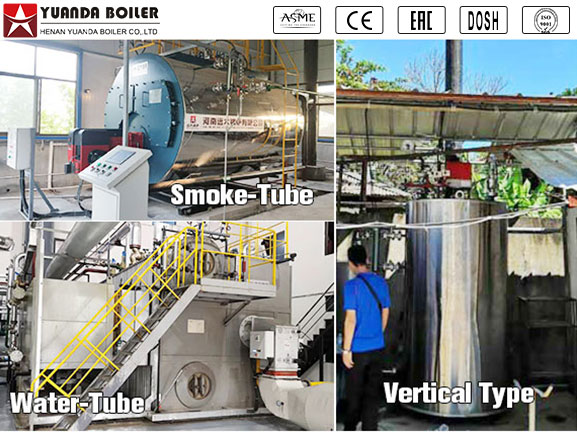

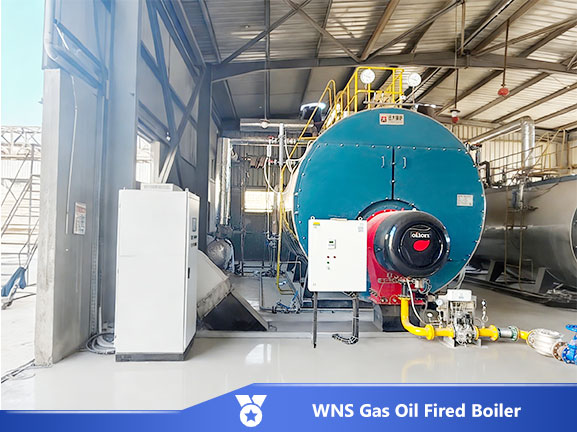

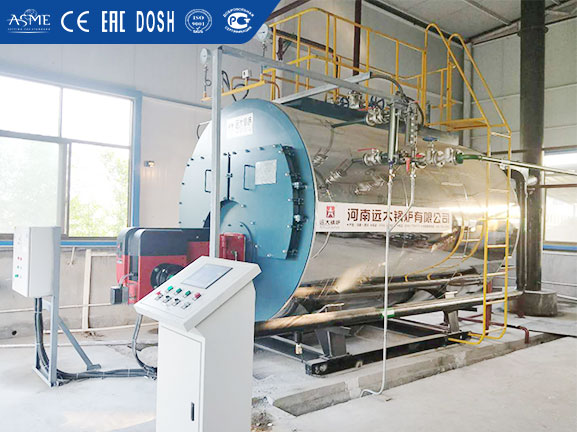

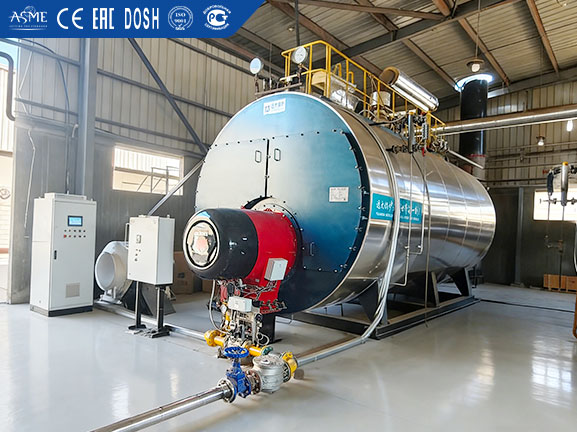

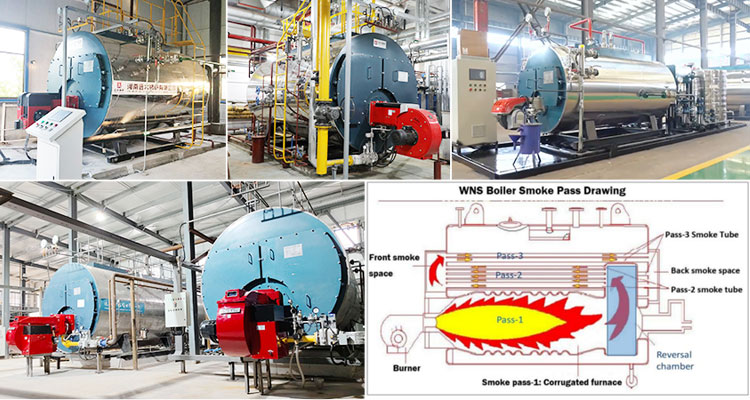

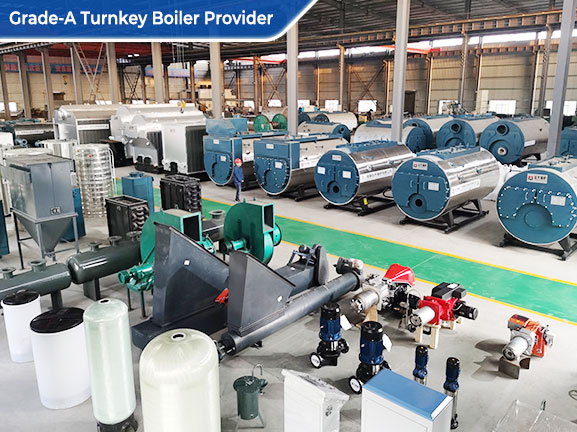

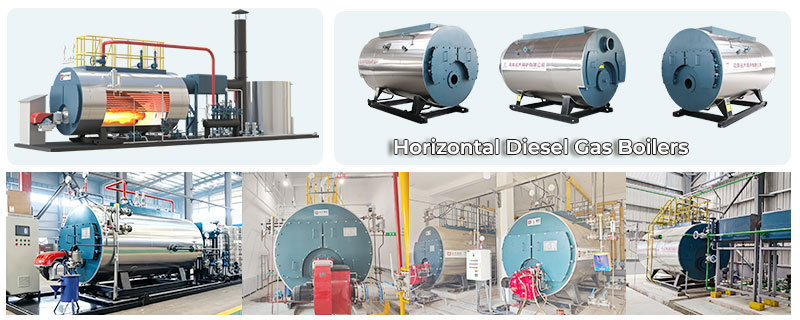

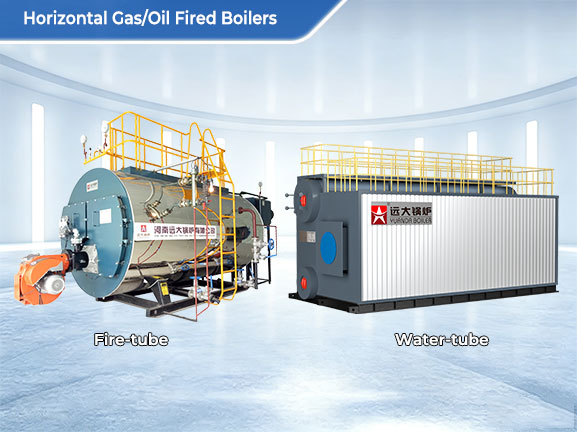

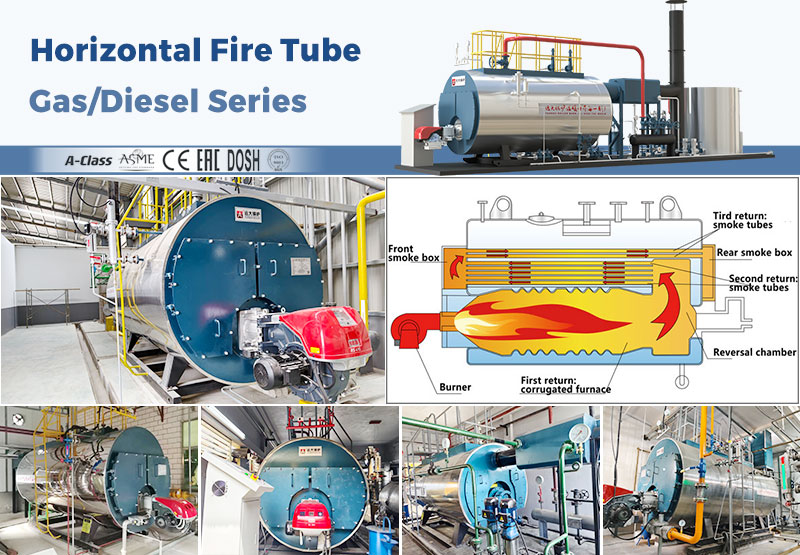

① WNS fire tube gas diesel steam boiler, horizontal type with economizer, wet back design.

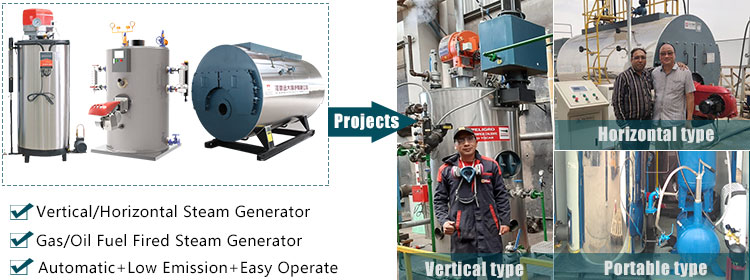

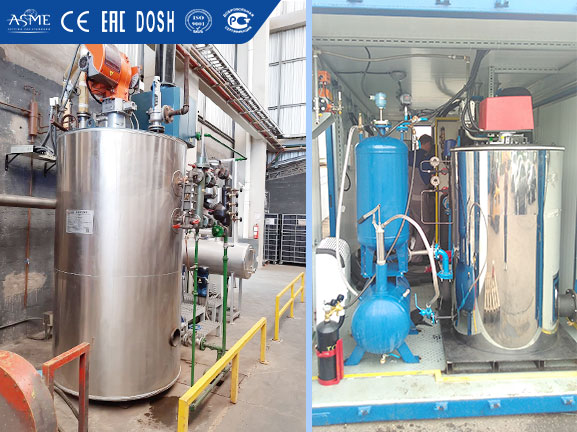

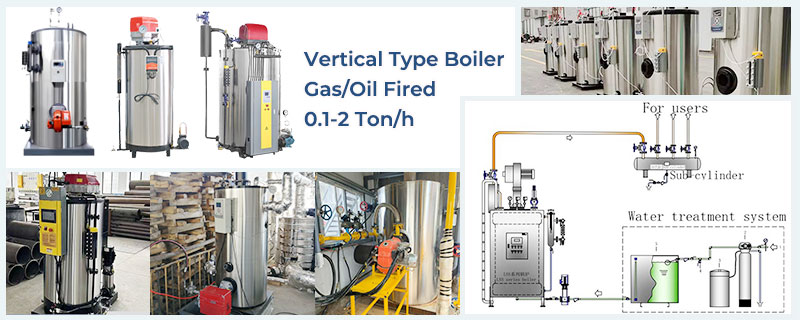

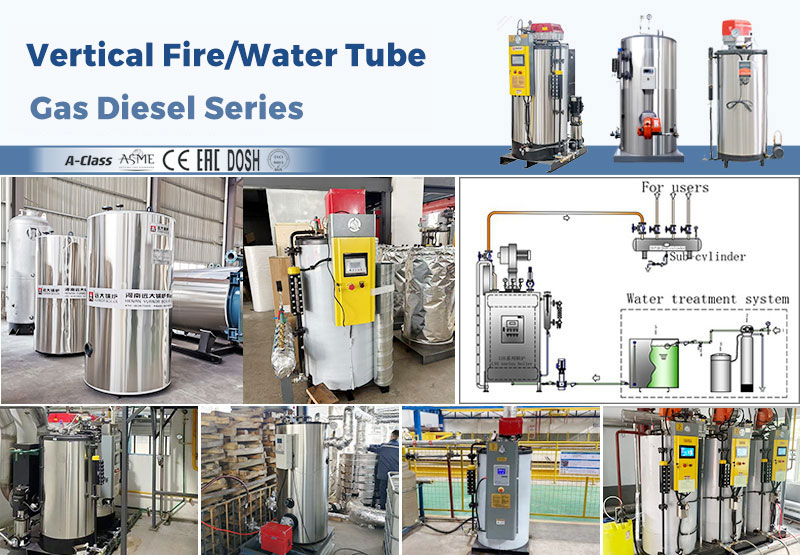

② LHS LSS Small gas/diesel boiler, vertical layout for space-saving, gas/diesel steam generator, quick into use.

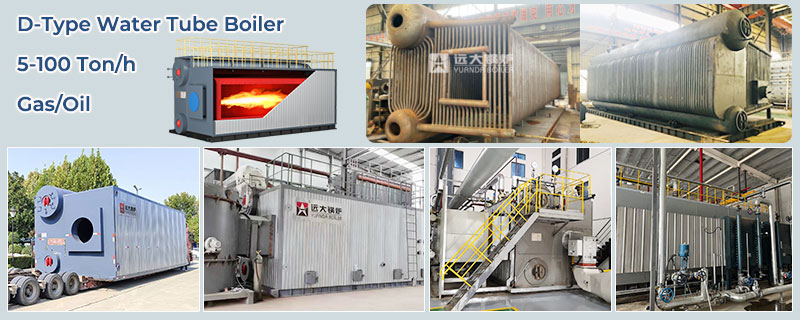

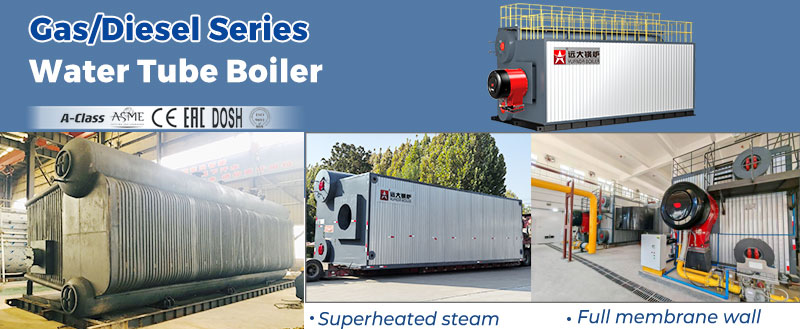

③ SZS water tube gas/oil fired boiler, D-type design, bigger furnace, strong output with full membrane wall.

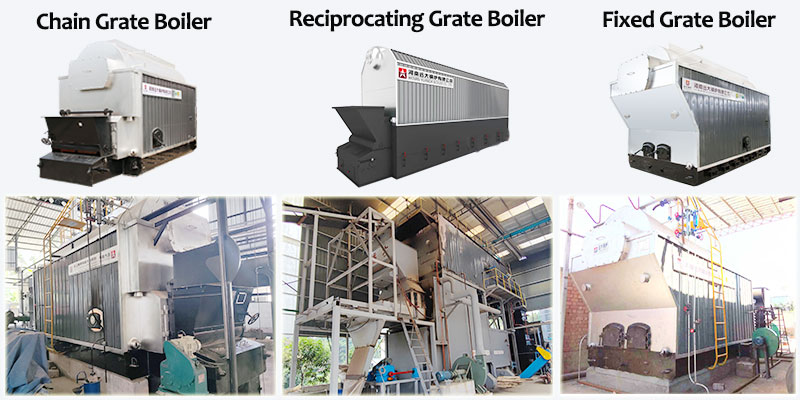

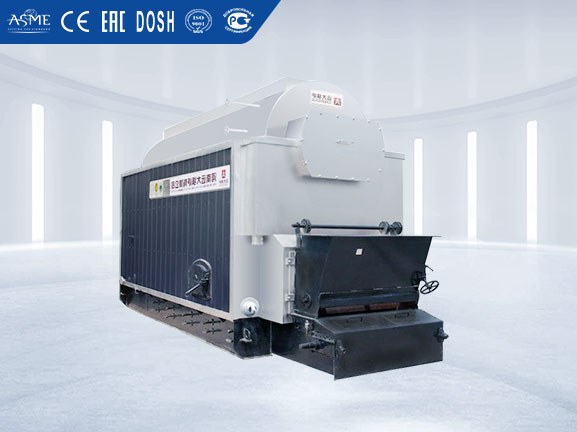

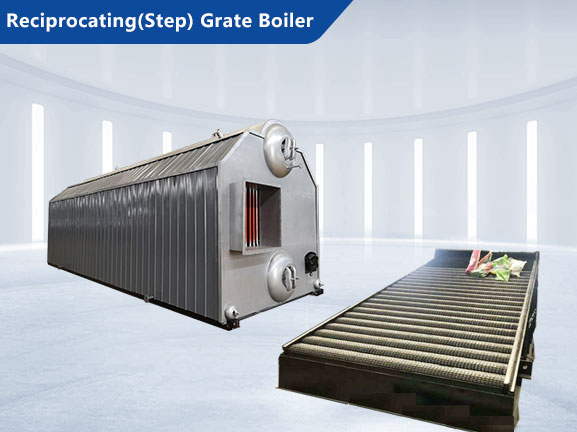

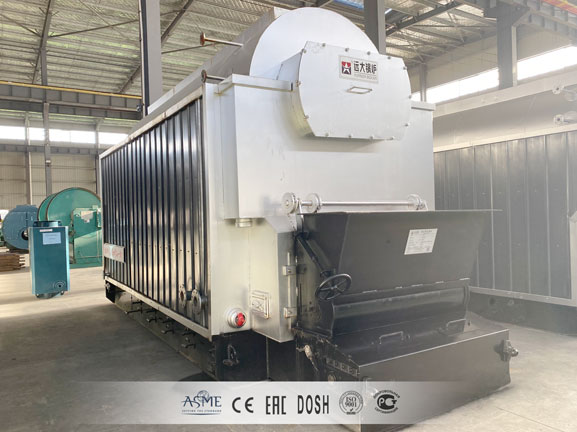

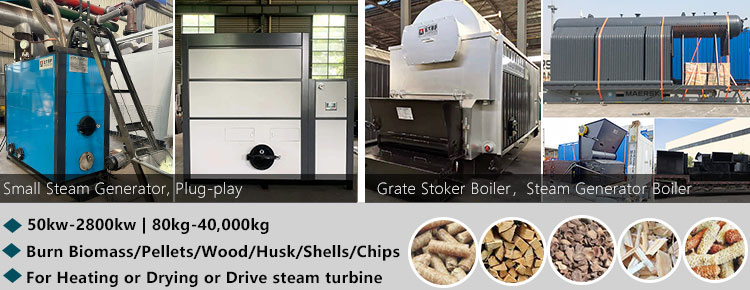

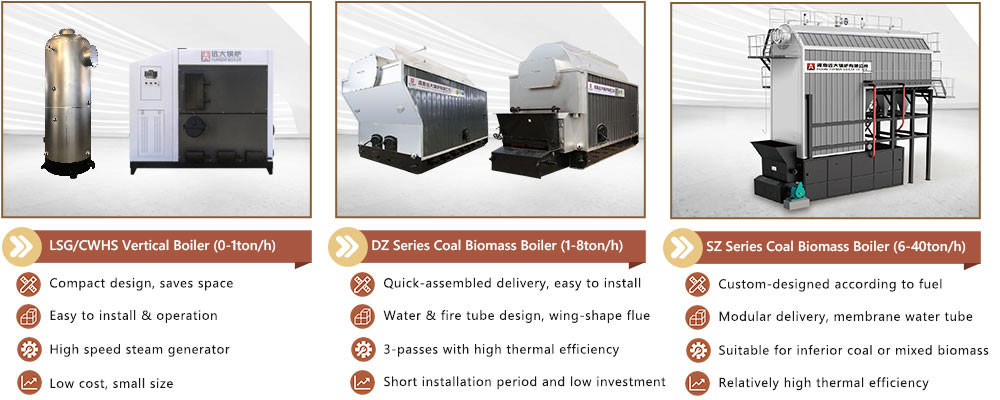

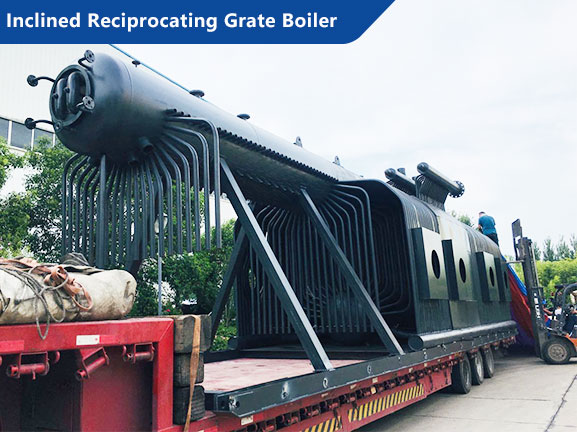

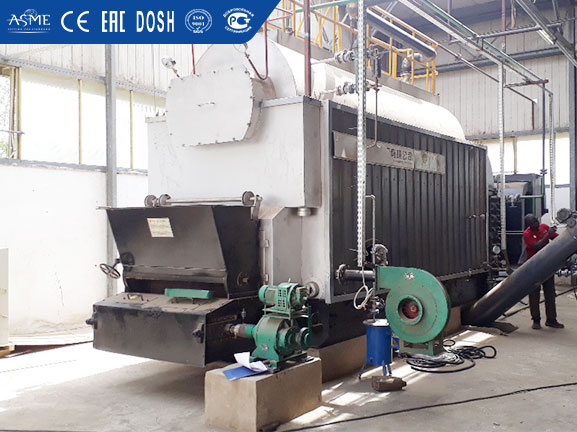

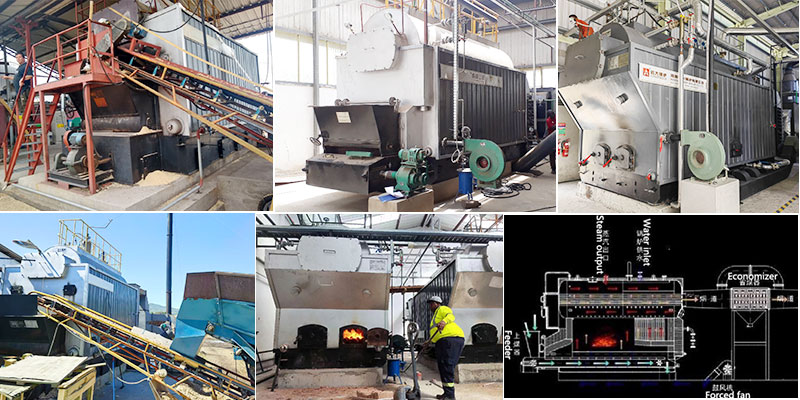

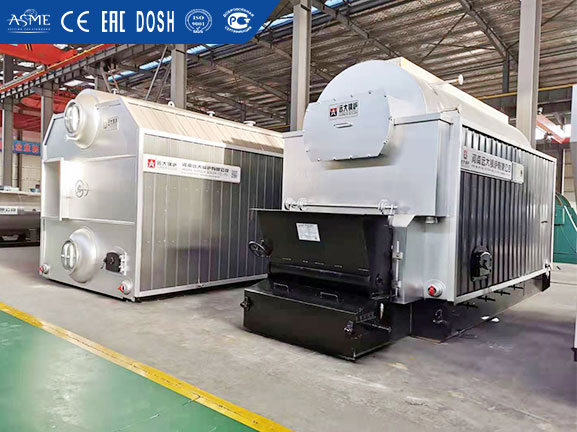

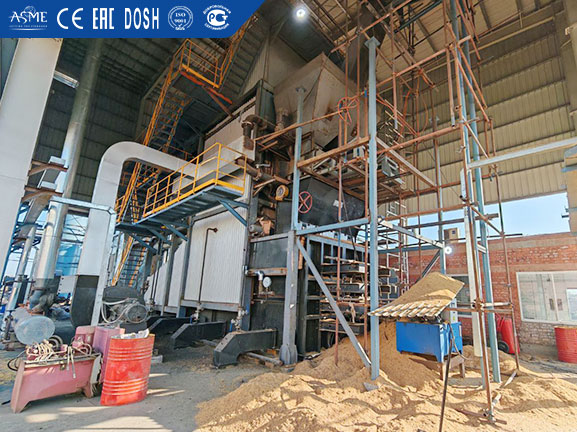

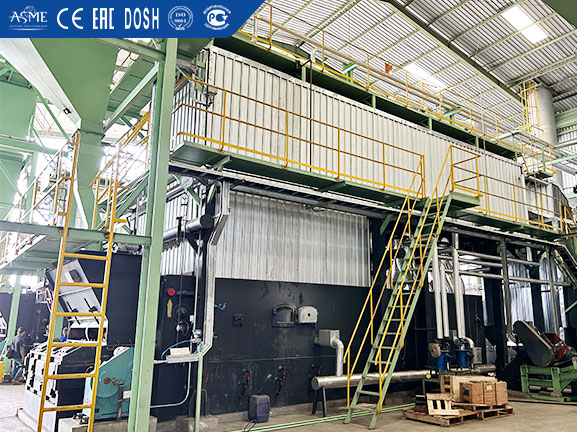

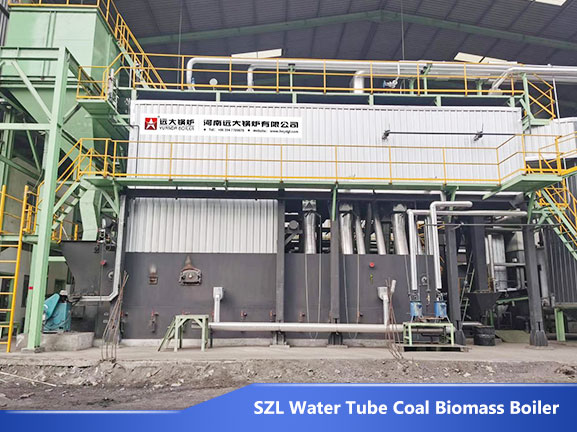

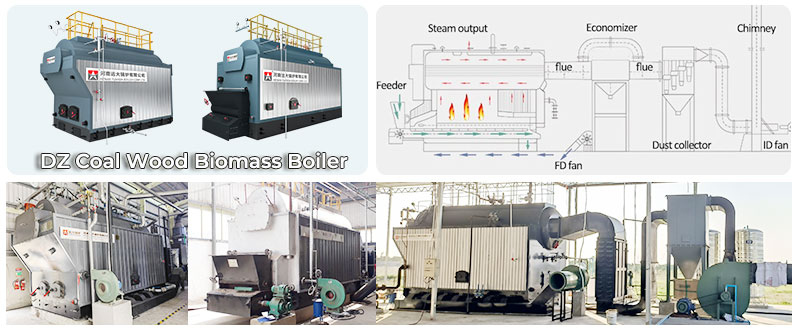

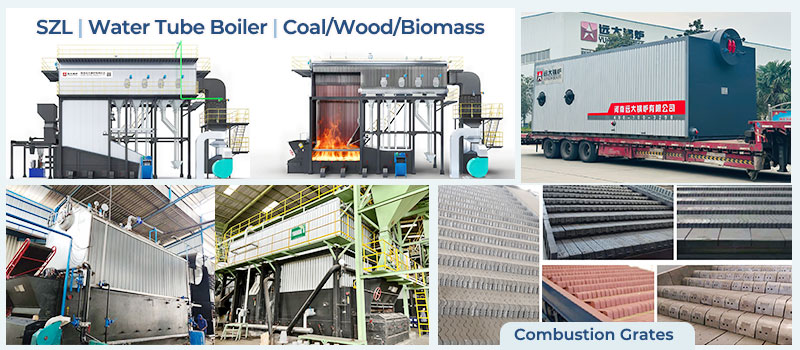

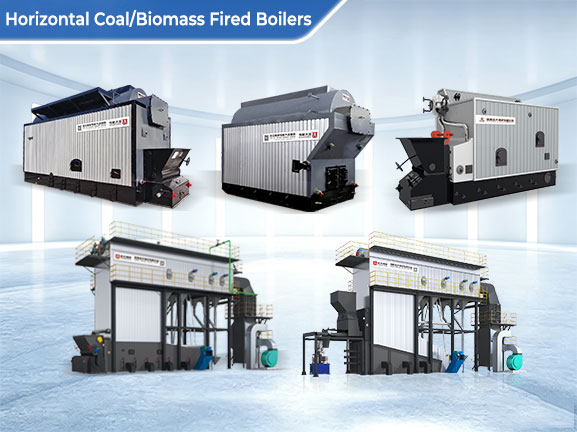

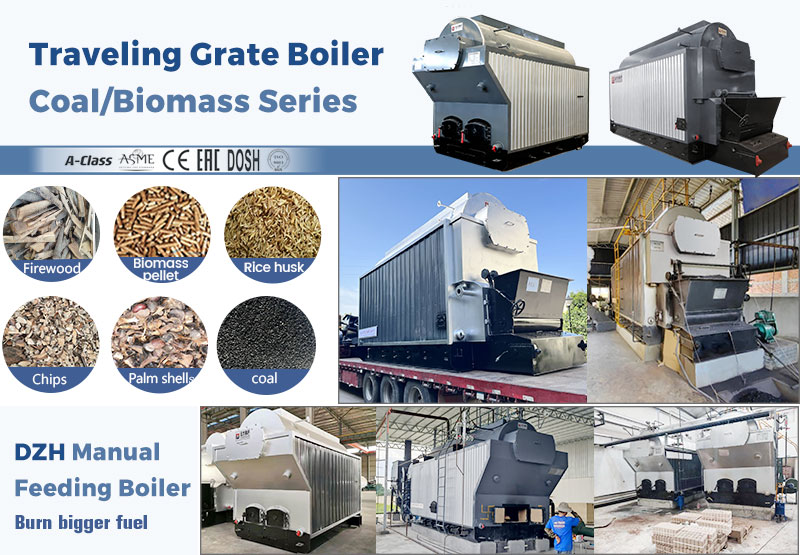

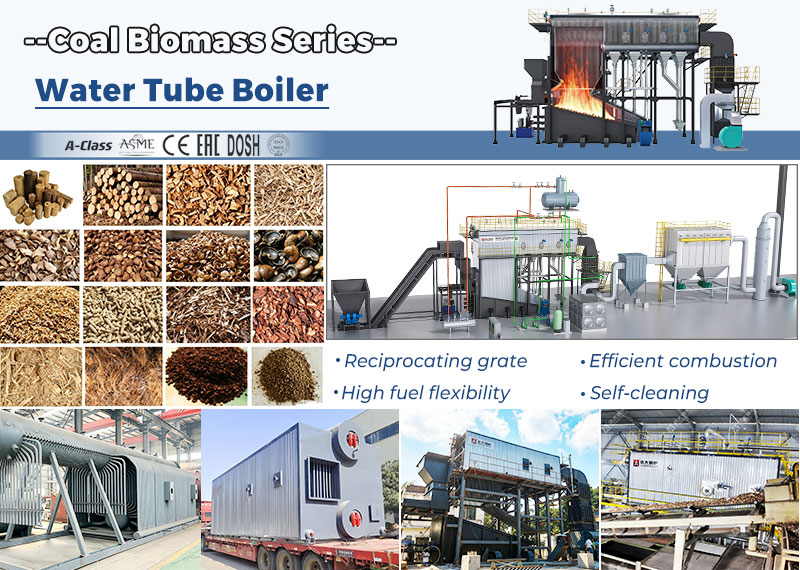

① Automatic coal biomass boiler, use chain grate or reciprocating grate, water tube and fire tube structure, higher efficiency.

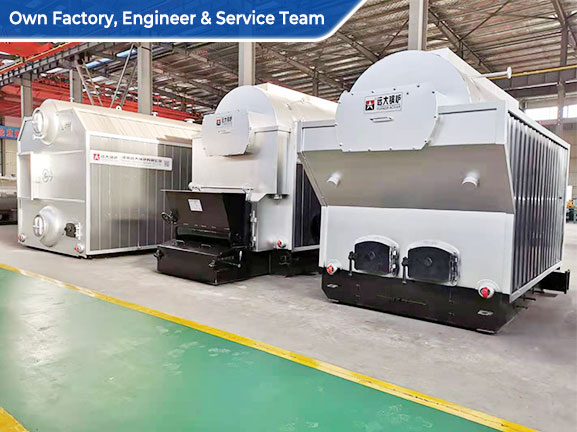

② Manual type coal/biomass boiler. Strong fuel adaptability, customized boiler based on different kind fuels.

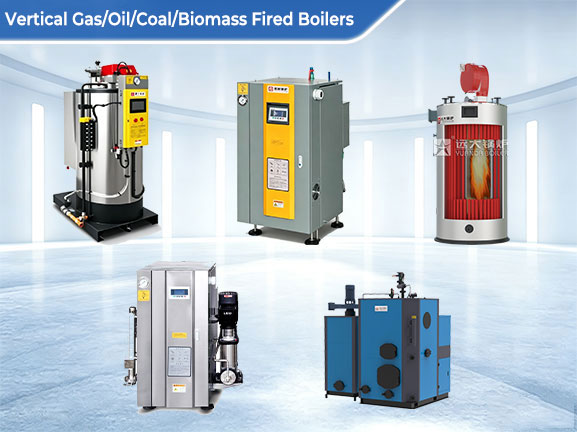

③ Vertical coal/biomass boiler, hand feeding type boiler. Small size, fast heating and easy to use.

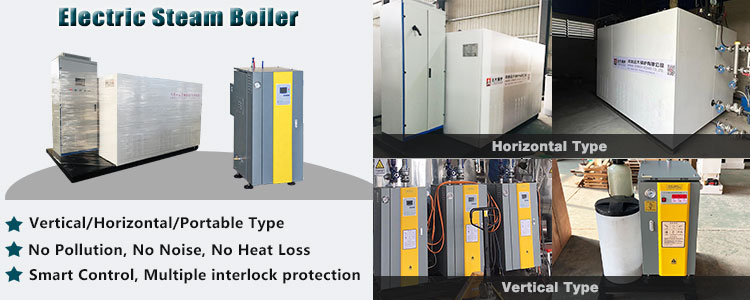

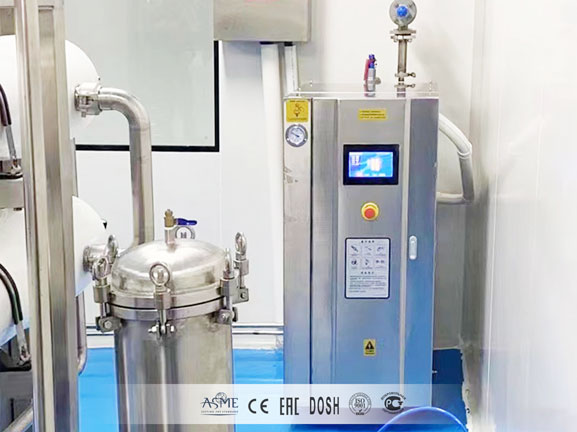

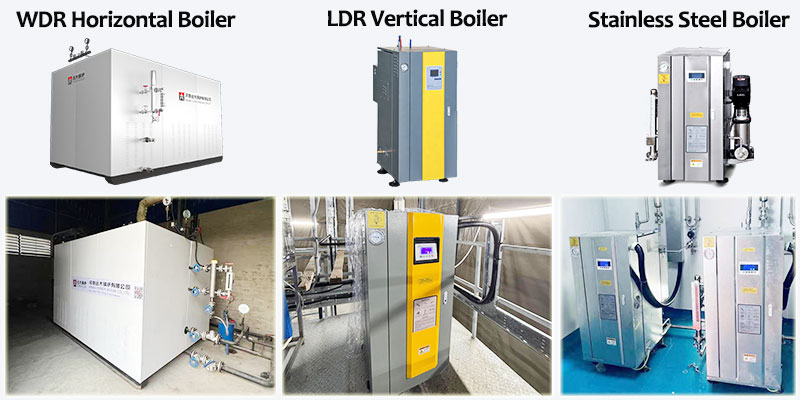

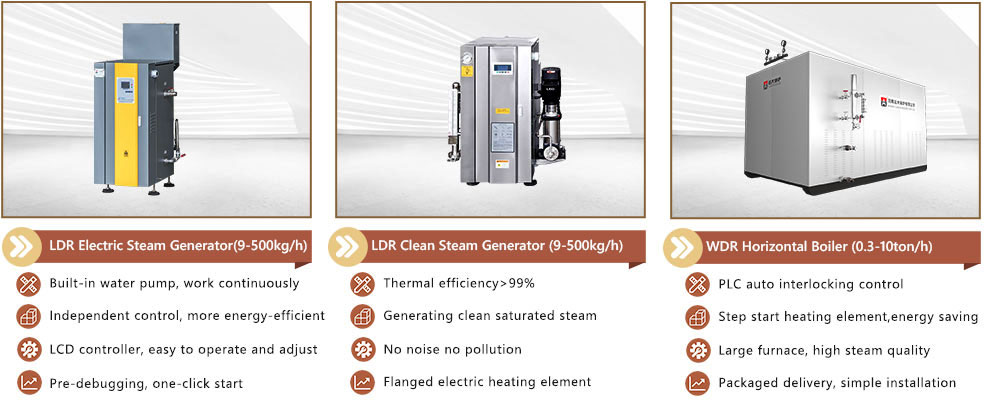

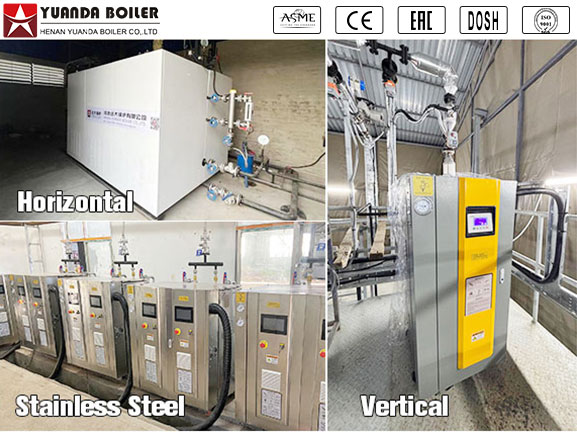

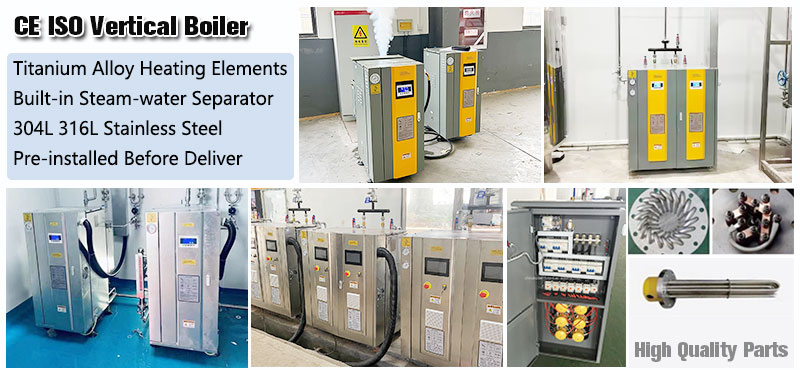

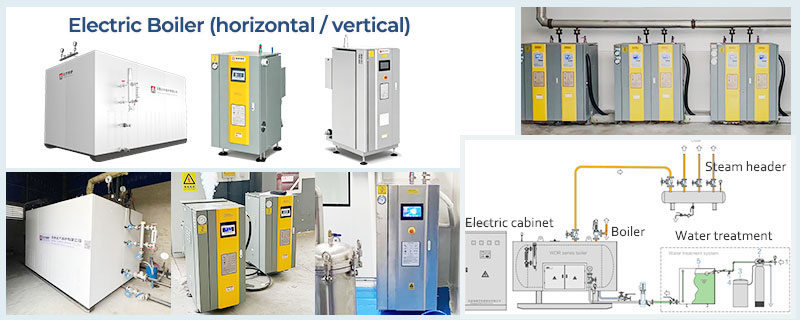

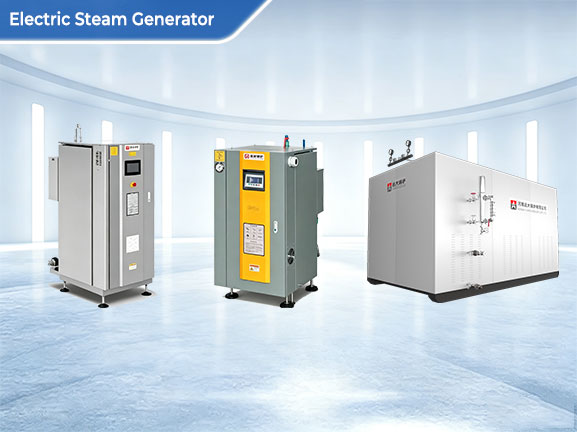

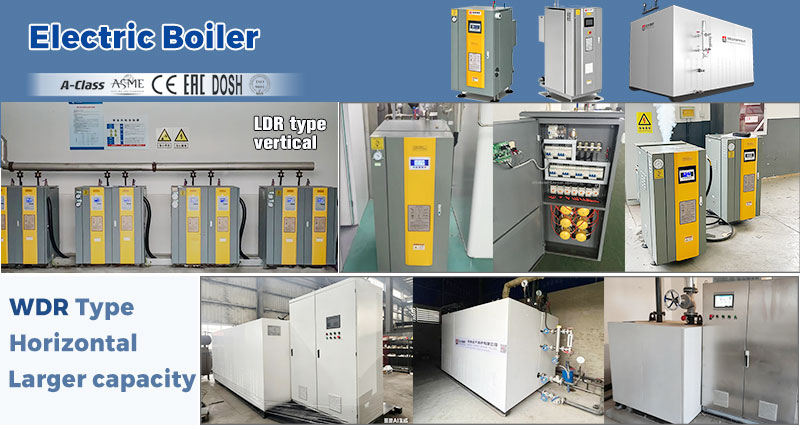

①LDR small electric steam or hot water generator, from 9kw to 350kw, put into use quickly.

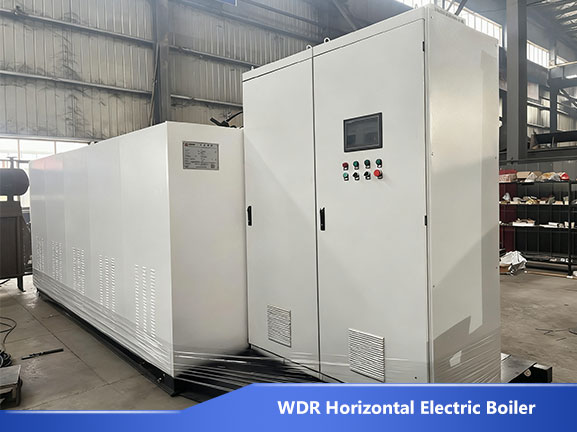

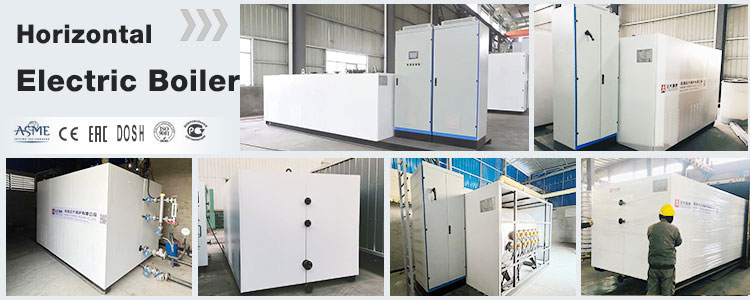

② WDR horizontal electric steam and hot water boiler, from 300kg to 10.000kg. No pollution, no noise, digital control, fully automatic use.

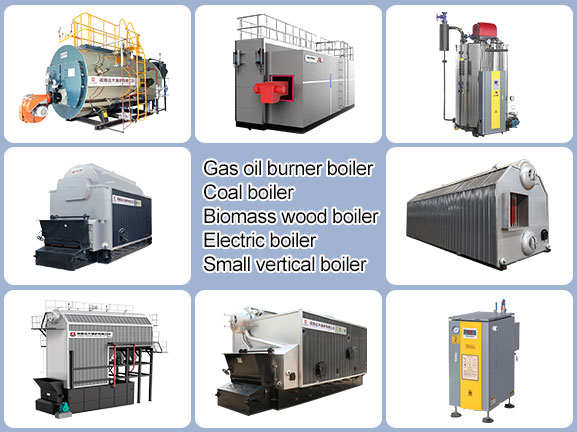

Fuel options: Natural gas, LPG, diesel, fuel oil, dual fuel, biogas, electricity, coal, charcoal, wood, biomass, pellets, palm kernel shells, rice hulls, olive shell, peanut shells, cashew nut shells, sunflower seed shells, sugarcane bagasse, etc.
Heating capacity: 100–50,000 kg, 70–35,000 kW, 5HP–3,000 HP (million BTU, lbs/lbs, liters, etc.)
Heating medium: saturated/superheated steam, hot water, hot oil.
Design options: Fire tube boiler, water tube boiler, water-fire tube boiler.
Layout options: Vertical boiler, horizontal boiler.
Operation mode options: Automatic, manual.
NOTE: Please feel free to send all your inquiries, we can help you better.
2. Calculate running costs
Specific consumption analysis report
Comparative analysis of the running cost of different boiler types.
(Note: The reports are based on local electricity prices)
3. Boiler accessories (mandatory or optional)
Control panel, water treatment device, economizer, condenser, heat recovery device, deaerator, solid fuel combustion furnace (chain grate, reciprocating grate, moving grate, fixed grate), steam distributors, pumps, water level indicators/sensors, pressure gauges/sensors, safety valves, etc.
Note: If you have special requirements, please send all information.
■ Best seller in 108 countries, more than 100,000 customers
Quality Assurance
Steel element test→Steel rust cleaning→Welding electrodes drying process→Automatic welding, argon arc welding, expansion welding etc. methods→NDT(Nondestructive Testing) including X-ray Test, Ultrasonic Test, Magnetic particle Test→Hydraulic pressure test.
Our Service
Pre-sale Service:
1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Transportation一We have shipping partners and forwarder for lowest price and safe.
After-sale Service:
1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
Parameter
| Model |
Capacity (Ton/h) |
Horspower (hp) |
Pressure (Mpa) |
steam temperature (℃) |
Feed water temperature (℃) |
Fuel consumption | |
| Light diesel oil(kg/h) | Natural gas(Nm3/h) | ||||||
| WNS 0.5 | 0.5 | 35 | 0.4 to 3.82mpa | 130～450 | 20/105 | 32.5 | 35.7 |
| WNS 1 | 1 | 71 | 0.4 to 3.82mpa | 130～450 | 20/105 | 64.6 | 70.1 |
| WNS1.5 | 1.5 | 120 | 0.4 to 3.82mpa | 130～450 | 20/105 | 96.8 | 105.2 |
| WNS 2 | 2 | 150 | 0.4 to 3.82mpa | 130～450 | 20/105 | 129.3 | 140.3 |
| WNS 3 | 3 | 200 | 0.4 to 3.82mpa | 130～450 | 20/105 | 192.9 | 212.1 |
| WNS 4 | 4 | 300 | 0.4 to 3.82mpa | 130～450 | 20/105 | 258.2 | 283.4 |
| WNS 5 | 5 | 350 | 0.4 to 3.82mpa | 130～450 | 20/105 | 323.5 | 354.7 |
| WNS 6 | 6 | 425 | 0.4 to 3.82mpa | 130～450 | 20/105 | 388.6 | 424.2 |
| WNS 8 | 8 | 550 | 0.4 to 3.82mpa | 130～450 | 20/105 | 514.6 | 566.3 |
| WNS 10 | 10 | 700 | 0.4 to 3.82mpa | 130～450 | 20/105 | 641.7 | 707.8 |
| WNS 12 | 12 | 850 | 0.4 to 3.82mpa | 130～450 | 20/105 | 768.9 | 849.3 |
| WNS 15 | 15 | 1050 | 0.4 to 3.82mpa | 130～450 | 20/105 | 960.1 | 1061.7 |
| WNS 20 | 20 | 1400 | 0.4 to 3.82mpa | 130～450 | 20/105 | 1276.2 | 1415.8 |
| Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design. | |||||||

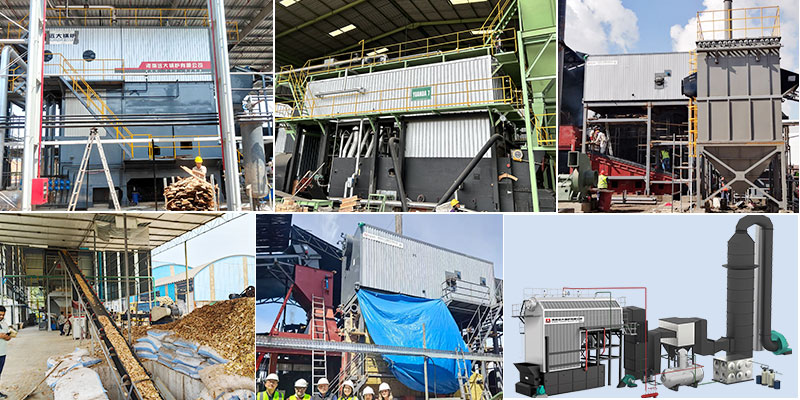

Relate Cases
Send Your Message
Please leave message with your contacts and the product you need. We will reply within 6 hours. Thanks.

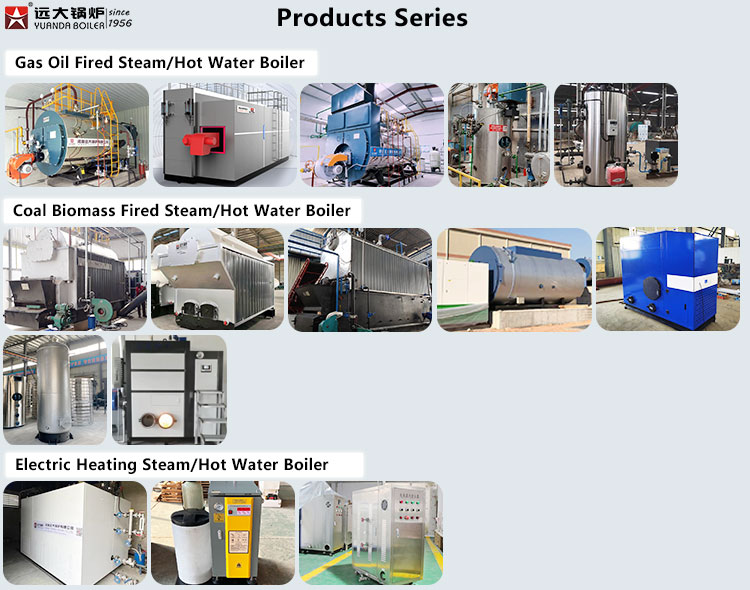

Products Series
