Gas/Oil Fired Edible Oil Heater

food processing oil heater | oil heater for fryers| vegetable oil heater

Edible oil heater is requried in food factory machine such as fryer, for high tempe healing of edible/cooking oil. Compatible with many fry food factory systems, such as chips production line, continuous fryer, batch fryer so on.

Thermal Capacity: 100,000 to 3,000,000 Kcal/hr
Temperature: <350 ℃
Types: vertical / horizontal / portable type
Available Fuel: natural gas, lpg, heavy oil, diesel, dual fuel
Applied Industries: food factory

Introduction

  • Edible oil heater is the preferred heating equipment for food factories, and it is also the best heating solution for fried food processing industry.

  • YY(Q)L series has a specially designed edible oil heater, all contact parts are made of stainless steel and seamless steel pipe, with a thermal efficiency of 96%. It can heat edible oil to a temperature of 180°C for fryer, Up to 350°C, also the oil can be completely drained from the system.

  • The heater has an extremely low heat release rate, ensuring that the cooking oil does not carbonize during the heating process. Fully automatic opertion.


  • YYQL series is compatible with various fuels, such as natural gas, LPG, diesel, heavy oil, etc. Compatible with various systems such as potato chip production lines, continuous fryers, batch fryers, etc.

  • Adopts vertical standing type, small occupy, reduce boiler room cost; High thermal efficiency, reduce fuel cost etc

Characteristics

01

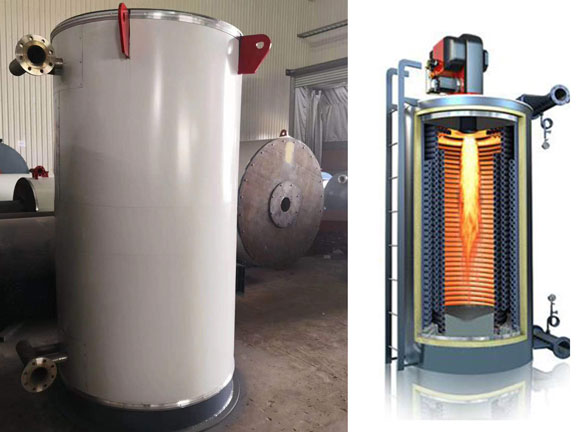

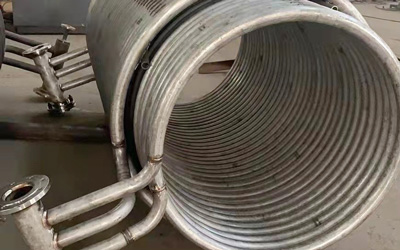

Oil Cover Fire Structure, Three Coil Pipes Wet Back

Eliminates the possibility of scorching the vegetable oil and eliminates the resulting fatty acid and ruined product. Eliminates flame impingement and costly tube burnout.


02


Double Layer 12cm Aluminum Silicate Insulation

We use double layer 12cm aluminum silicate insulation cotton, boiler surface temperature is not higher than 40 ℃, energy saving, reduce fuel cost and high efficiency


03

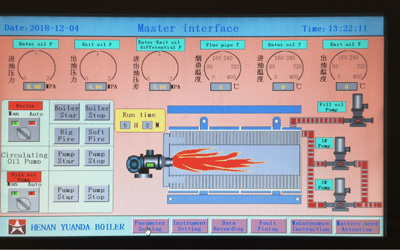

Intelligent Monitoring, 100% Safe Running

100% safe and easy operation. Abnormalities such as oil temperature, oil level, differential pressure, smoke temperature, and flow can all be chained to alarm.

04

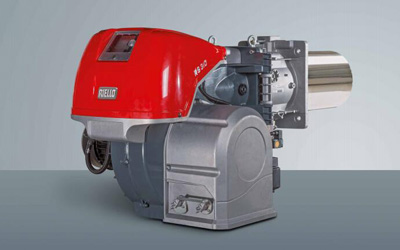

Configure Italian burner

Has the safest, simplest and most reliable combustion control system. Two stage or three stage burner.

Benefits

PROFESSIONAL ANSWER

From boiler solution, optimization to installation, 24 hours online, provide technical support and avoid risks for you

ENGINEER SUPPORT

Based on user needs, we supply tailored service, boiler drawing&PID system, boiler room design, foundation drawings etc


AFTER-SALE SERVICE

Full-life After sale service. With our professional technical experts and service team, skilled technology provides customers with professional services

CONSTRUCTION

Our engineer on-site guidance installation and commissioning, ensure boiler running perfect, free training for boiler operator

WHAT CAN YOU GET?

According to the customer production requirements, provide professional boiler solutions, cost analysis, project investment budget, boiler drawing&installation and commissioning service

Parameter

YY(Q)L oil heater
Model Rated thermal power
(KW)
Rated working pressure
(Mpa)
Thermal oil outlet temperature
(℃)
Thermal oil inlet temperature
(℃)
Fuel
YY(Q)L-230Y(Q) 230 0.8/1.0 280/320/350 250/290 LPG, CNG, gas, diesel, heavy oil, waste oil, dual fuel etc
YY(Q)L-350Y(Q) 350 0.8/1.0 280/320/350 250/290
YY(Q)L-470Y(Q) 470 0.8/1.0 280/320/350 250/290
YY(Q)L-700Y(Q) 700 0.8/1.0 280/320/350 250/290
YY(Q)L-1000Y(Q) 1000 0.8/1.0 280/320/350 250/290
YY(Q)L-1200Y(Q) 1200 0.8/1.0 280/320/350 250/290
YY(Q)W-1400Y(Q) 1400 0.8/1.0 280/320/350 250/290
YY(Q)W-2000Y(Q) 2000 0.8/1.0 280/320/350 250/290
YY(Q)W-2400Y(Q) 2400 0.8/1.0 280/320/350 250/290
YY(Q)W-2900Y(Q) 2900 0.8/1.0 280/320/350 250/290
YY(Q)W-3500Y(Q) 3500 0.8/1.0 280/320/350 250/290
YY(Q)W-4200Y(Q) 4200 0.8/1.0 280/320/350 250/290
Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design.
