Corrugated Furnace Boiler

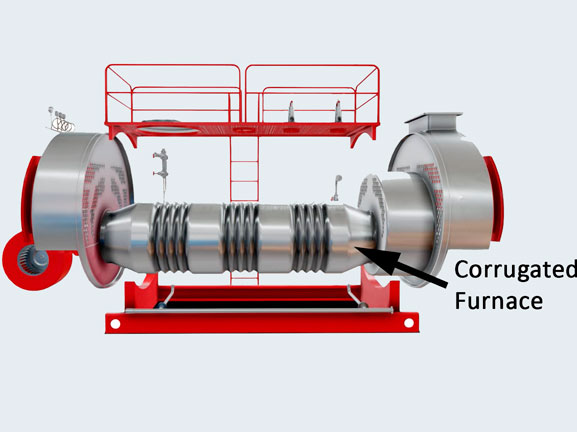

Corrugated furnace boiler is also called a fire tube boiler or a wet back shell boiler. The corrugated furnace is an indispensable key component of a fire tube structure oil and gas fired boiler. As the combustion chamber of the boiler, it can improve the heat transfer efficiency, thereby improving the thermal efficiency and reducing fuel consumption.

Yuanda has WNS horizontal corrugated furnace boiler and LHS vertical corrugated furnace boiler. Can produce steam or hot water for factory production, or building/central heating.

With ASME CE GB DOSH EAC certificates, sold to more than 132 countries.

Application

It can be used in a variety of industries such as food, beverage, milk, garment, pharmaceutical, building materials, chemicals, textile, paper, foam, feed mills, edible oils, rice mills, dairy products, food, wood processing, refineries, rubber, packaging, laundry, hotel, greenhouse...

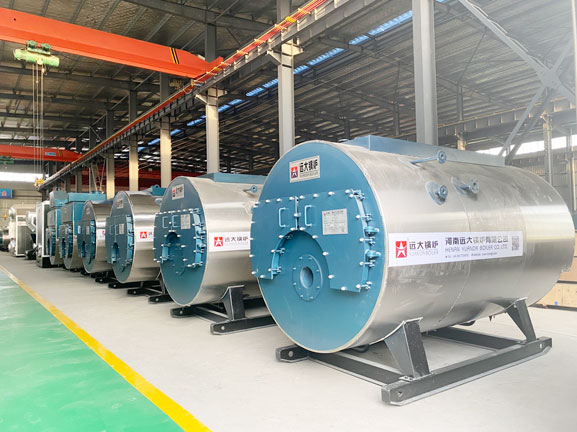

WNS Horizontal Corrugated Furnace Boiler

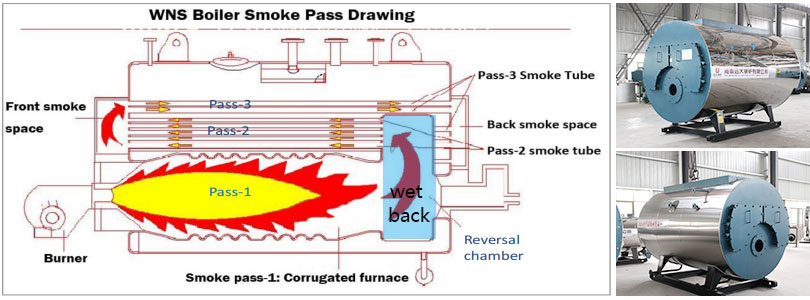

It adopts three-pass wet-back structure, large corugated furmace and thread smoke tube technology, 5-th inter-lock protection, equipped with intemational first-level brand burners, valves, instruments, advanced expansion welding technique. Independently developed high-matching PLC control system to realize muitiple linkages, protects the boiler long uselife & safety running.

Fuel: natural gas, lpg, diesel, heavy oil, dual fuel and exhaust gas.

LHS Vertical Corrugated Furnace Boiler

LHS LSS gas fired boiler, vertical design for space saving, internal structure is same as WNS horizontal gas boiler.

Capacity from 100kg to 2000kg, equal to 90kw to 1400kw, 15hp to 150hp.

Advantages

●High Security, Safe Operation;

①Anti-dry heating system with 5-th water level detect;
②Four stages pressure protection;
③Explosion-proof door with fire viewer;
④Remote monitoring system.

●High Efficiency, Save Fuel & Running Cost;

①Large corrugated furnace, patent design three pass smoke tubes;
②Built-in steam separator, ensure high steam quality with wetness below 1%;
③Double 12mm thickness aluminum silicate insulation layer;
④Finned tube design economizer with aluminum silicate insulation, greatly reducing heat loss.

●Long Using Life and Convenient for Maintenance

①Wet-back reverse flame chamber;
②Solid round steel tension rod design;
③Rapid solidification and high-strength refractory building materials;
④Double opening-door at front and back.

●Packaged Boiler, Less Installation Work

Easy for transportation and installation, also could be pre-installed in the factory, customers only connect water, electricity, fuel at site

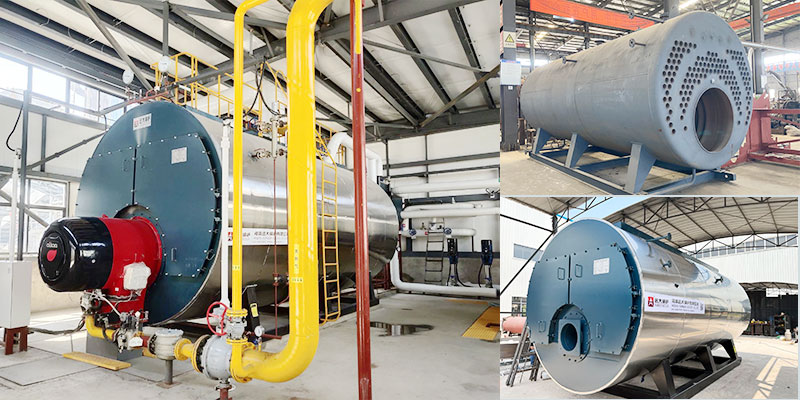

Projects

Our Service

Pre-sale Service:

1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Competitive Price一As one boiler factory, we have lowest price and high quality.

After-sale Service:

1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
