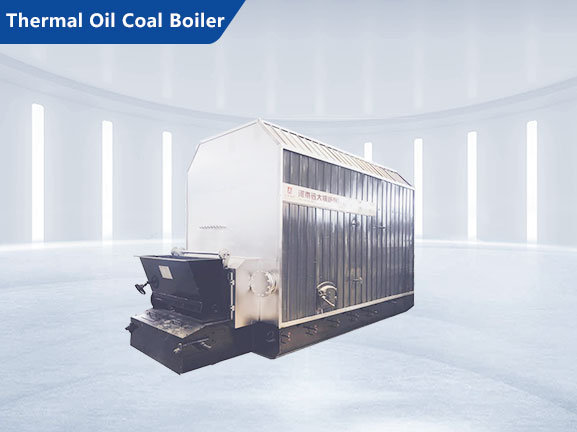

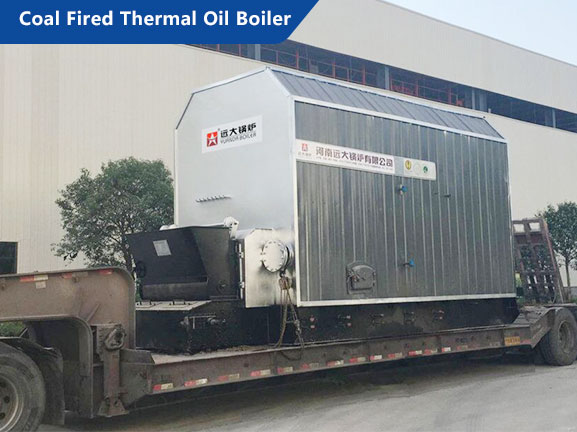

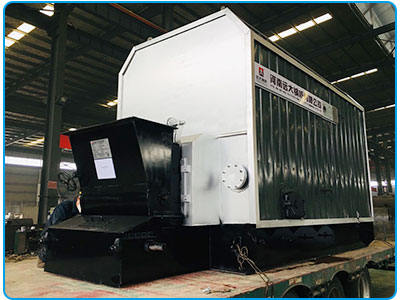

Coal Fired Thermic Fluid Heater

Solid fuel fired thermal oil boiler | Hot oil heater | Heat carrier boiler

Coal fired thermal oil boiler is horizontal grate combustion three-coil structure, wet back. This boilers are fully automatic, stable heating, energy saving and designed to operate on a wide range of solid fuels, like coal, wood, huskd, sawdust and multiple fuel options.

Thermal Capacity: 200-14,000kw/h 200,000-12,000,000Kcal/h
Rated Temperature: 200 ℃ ~ 350 ℃
Styles: horizontal / vertical
Available Fuel: coal, solid fuels, wood chip, bagasse, straw, and other biomass fuel
Applied Industries: textile printing and dyeing, refinery&chemical, plastic and rubber, wood industry, building material, machinery industry, food industry, etc.

Introduction

  • Thermal Oil Boiler / Thermal Oil Heater / Hot Oil Boiler / Organic Heat Carrier Boiler

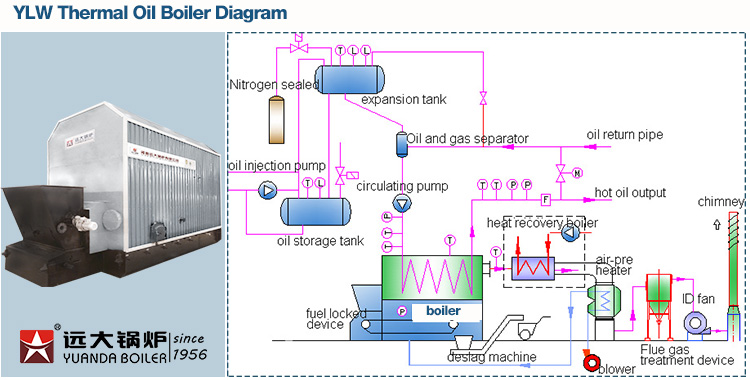

  • Yuanda Boiler manufacturing kinds thermal oil boiler, wood/gas/diesel/biomass/coal fired, thermal capacity from 350kw-14000kw, 200,000 kcal to 12 mkcal, horizontal and vertical two types for choose. Also provide whole thermal oil boiler system. With this system, it is easy to achieve working temperature 200~350℃ under low pressure, low cost, 100% safe running.

  • This is YLW series wood/biomass/coal fired thermal oil boiler, has the characteristics ①use three coild layers wet back structure, greatly increase the boiler efficiency, and avoid the boiler outside packing burned out for the high temperature; ②grate stoker buring, special arch design, automatic feeding; ③Advanced and adjustable scientific air intake technology, ensure thermal efficiency ④Over oil temperatur, over smoke temperatur, low flow alarm ⑤countercurrent heating transfer

  • Professional used in storage tank, oil tanks, asphalt/bitumen processes, hot press machine, fryer machine, resin reactors, rubber and plastics, adhesives, distillation columns, heat exchangers, drying processes, rotogravure and flexo printing, paints etc...

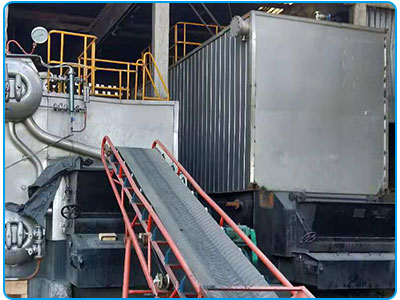

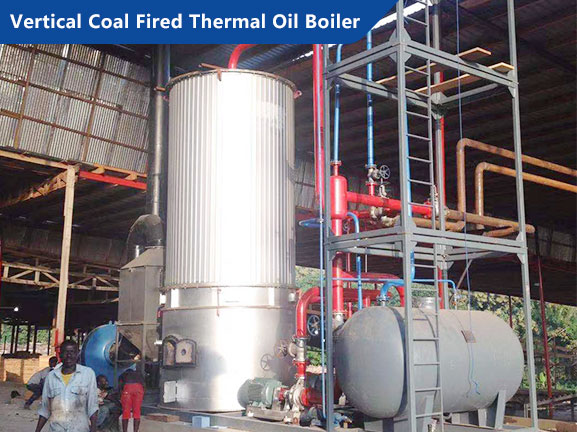

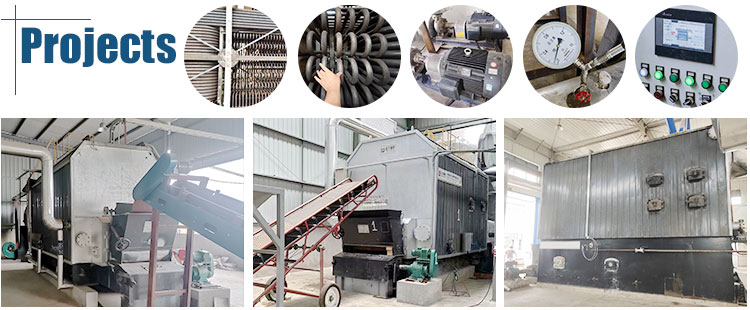

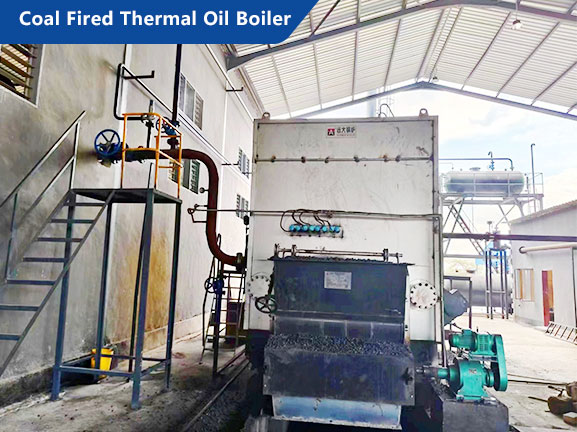

  • ylw wood biomass thermal oil boiler heaterhorizontal and verticxal wood coal thermal oil boiler operation site

Characteristics

01


Three Layers Coil Tubes + 3-Pass Design

Effectively use the high temperature, smoke stay inside boiler to heat thermal oil 3 times, greatly reduce temperature of outlet  smoke, improve boiler thermal efficiency, energy saving, reduce fuel cost


02


Oil Cover Fire Structure + Wet Back Type

1. Pipline oil surround the fire, endothermic sufficient, heating up fast and evenly 2. Smoke transfer room is wet back structure, avoid burning deformation, ensure boiler lifespan


03


Double Layer 12cm Aluminum Silicate Insulation

We use double layer 12cm aluminum silicate insulation cotton, boiler surface temperature is not higher than 40 ℃, energy saving and high efficiency

04


Intelligent Monitoring, 100% Safe Running

PLC control, automatic data collection analysis system, over oil temperature/over smoke temperature/low flow alarm, easy for operate and make sure the safe

Benefits

PROFESSIONAL ANSWER

From boiler solution, optimization to installation, 24 hours online, provide technical support and avoid risks for you

ENGINEER SUPPORT


Based on user needs, we supply tailored service, boiler drawing&PID system, boiler room design, foundation drawings etc


AFTER-SALE SERVICE

Full-life After sale service. With our professional technical experts and service team, skilled technology provides customers with professional services

CONSTRUCTION

Our engineer on-site guidance installation and commissioning, ensure boiler running perfect, free training for boiler operator

WHAT CAN YOU GET?

According to the customer production requirements, provide professional boiler solutions, cost analysis, project investment budget, boiler drawing&installation and commissioning service

Parameter

YGL oil heater
Model Rated thermal power
(MW)
Rated working pressure
(Mpa)
Thermal oil outlet temperature
(℃)
Thermal oil inlet temperature
(℃)
Fuel consumption
(KG/H)
Fuel
YLW-700 0.7 0.8/1.0 280/320 250/290 187 Soft coal, firewood, rice husk, palm shell and the other biomass fuels
YLW-1400 1.4 0.8/1.0 280/320 250/290 373
YLW-2400 2.4 0.8/1.0 280/320 250/290 621.3
YLW-2900 2.9 0.8/1.0 280/320 250/290 756
YLW-4200 4.2 0.8/1.0 280/320 250/290 989.32
YLW-5600 5.6 0.8/1.0 280/320 250/290 1196
YLW-7000 7.0  0.8/1.0 280/320 250/290 1657.43
YLW-8400 8.4 0.8/1.0 280/320 250/290 1926.2
YLW-10500 10.5 0.8/1.0 280/320 250/290 2442.6
YLW-14000 14 0.8/1.0 280/320 250/290 3230
Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design.
